● Support iBeacon/Eddystone/Kensor and other BLE device ● Support HTTP/HTTPS, MQTT/TLS MQTT ● Powerful network diagnostics ● Hardware level WatchDog, ensure 24-hours full time data upload
● Optional 4G LTE module & GPS module
● Web portal for configuration ● CE/FCC certified
Description
KG02 KBeacon gateway is mainly used for communicating with devices with BLE function, and uploading device data to the cloud, or download cloud data to device. KG02 gateway support cellular (3G/4G), WiFi, WiFi hoppen, or Ethernet network connection. It can be powered by DC 5V, or POE (802.3af). It support Bluetooth 5.0/4.2/4.1/4.0 and newer, e.g. BLE sensor, iBeacon/Eddystone beacon, smart wristband, smart heart rate band.
Manufacturing Technique
General Specification
● Slim design ●Input: DC 5V/1A, micro-USB ● 3af/at POE DC standard ● Supports HTTP/MQTT over SSL ● Build-in NTP support ● Supports firmware update Over-the Air ●Operating temperature:-25°C ~65°C
BLE Specification
● Support BLE4.2 and BLE5.0 ● With a power amplifier and LNA ● 3dBi high-accuracy antenna ● Scanning capability > 220 device per seconds ● >150meters range in open space ● Rx sensitivity -108dBm ● Bi-directional (reads data/send command)
Wi-Fi Specification
● Update to 300Mbps ● Supports WPA/WPA2, 802.1x enterprise EAP ● 3dBi high-accuracy antenna ● 100meters in open space ● 2T2R 2.4G frequency band ● Web portal UI configuration

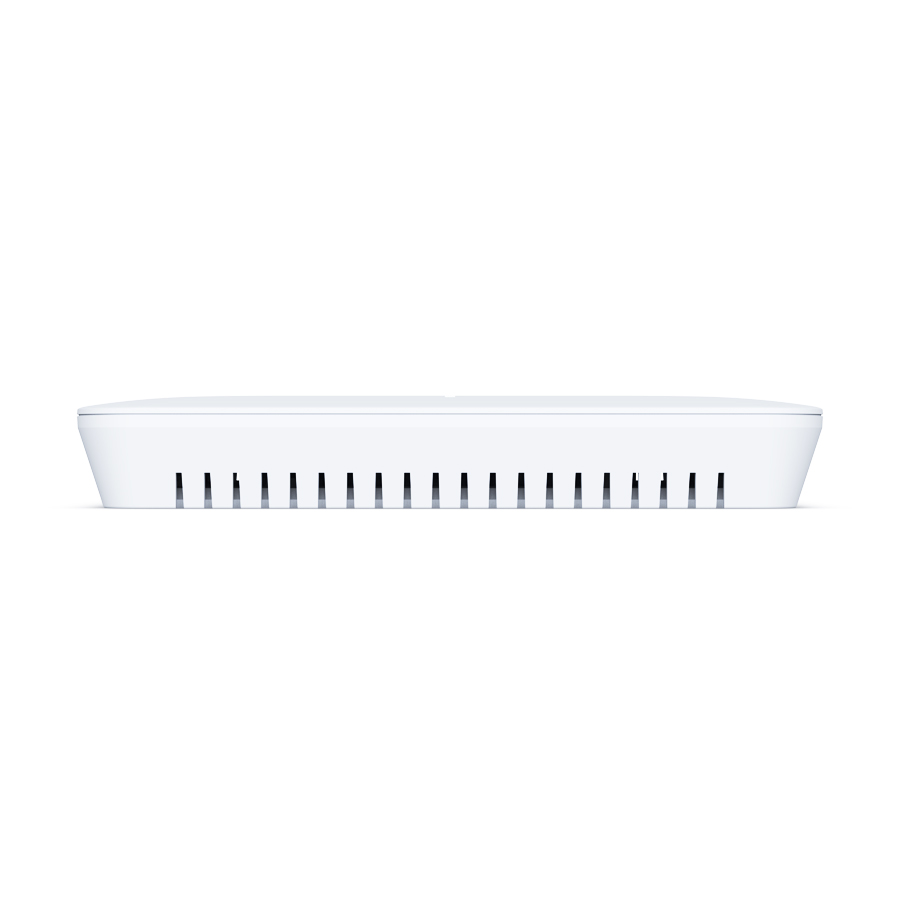

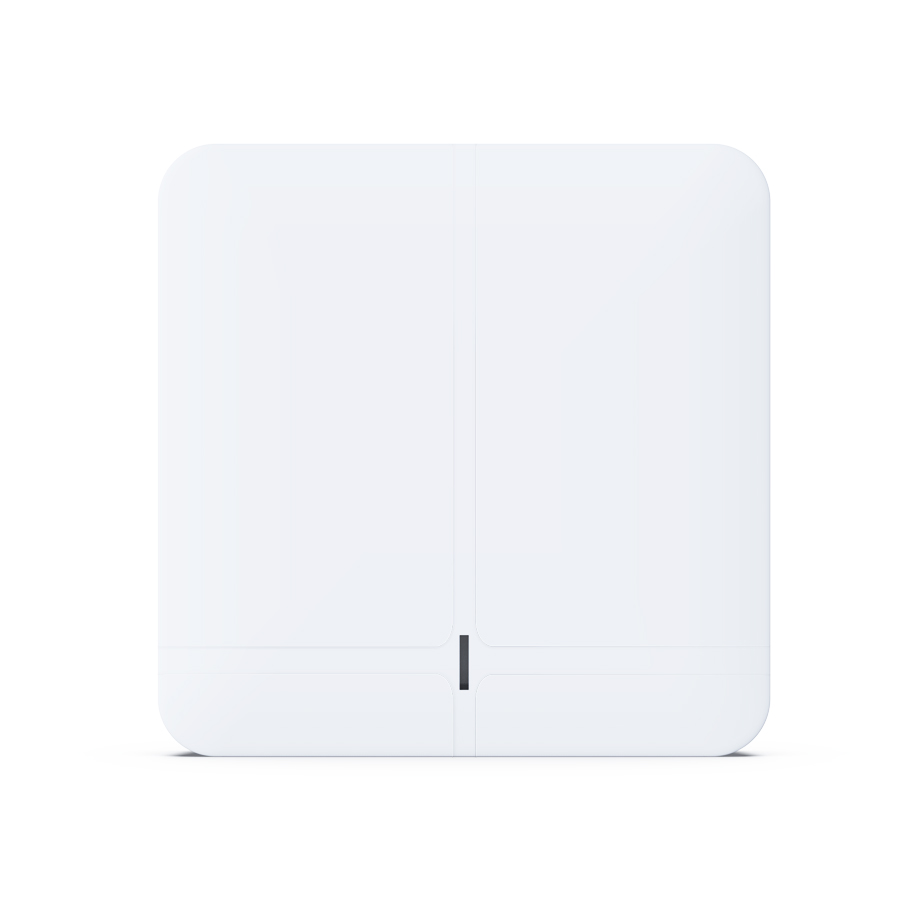

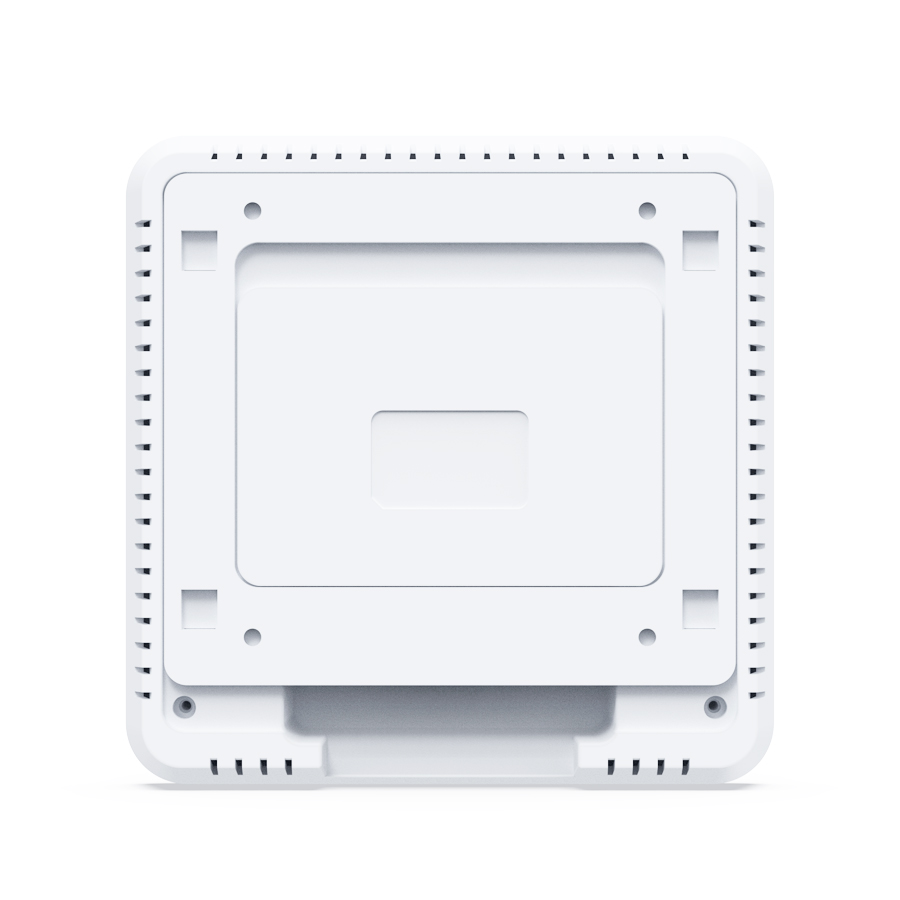

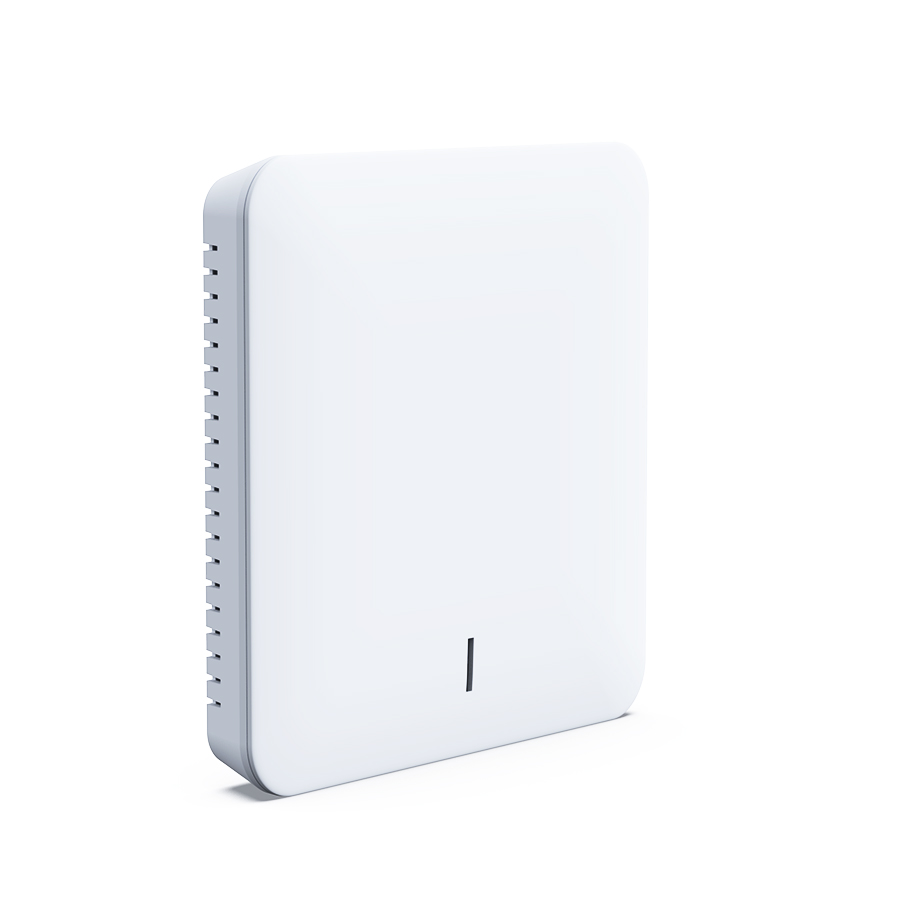

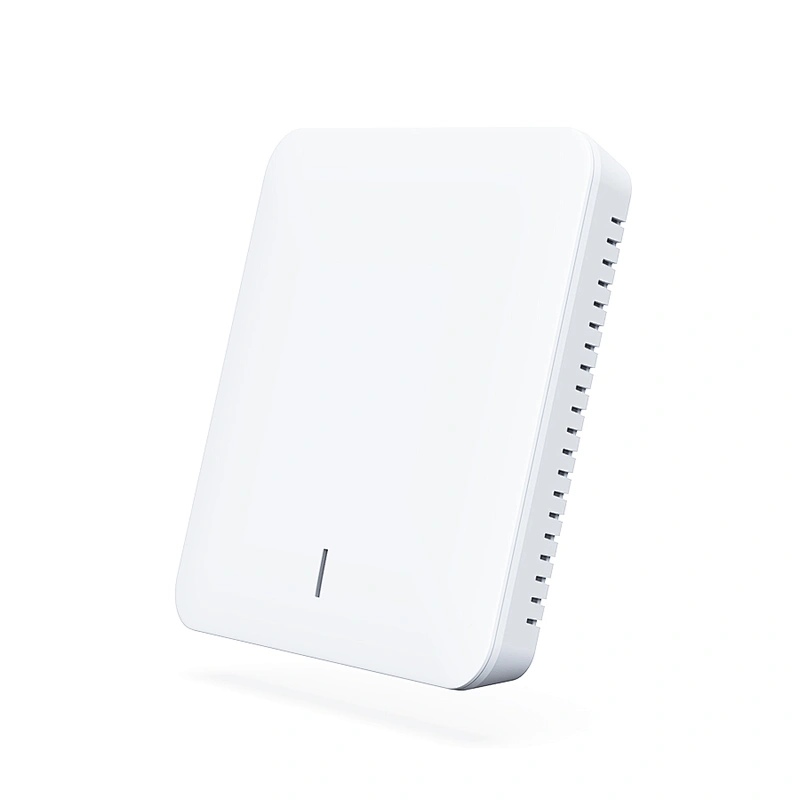

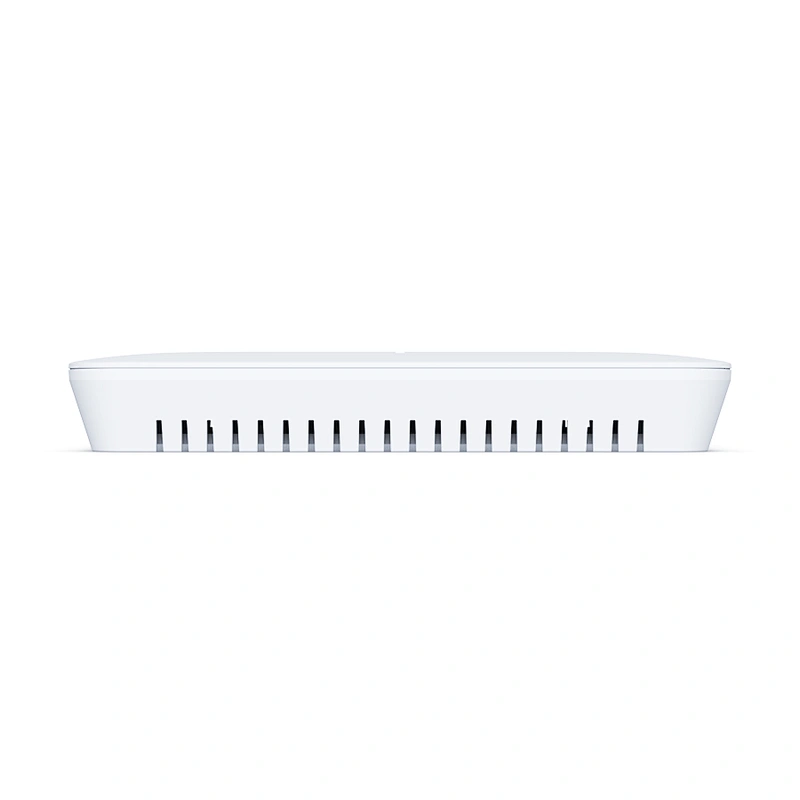

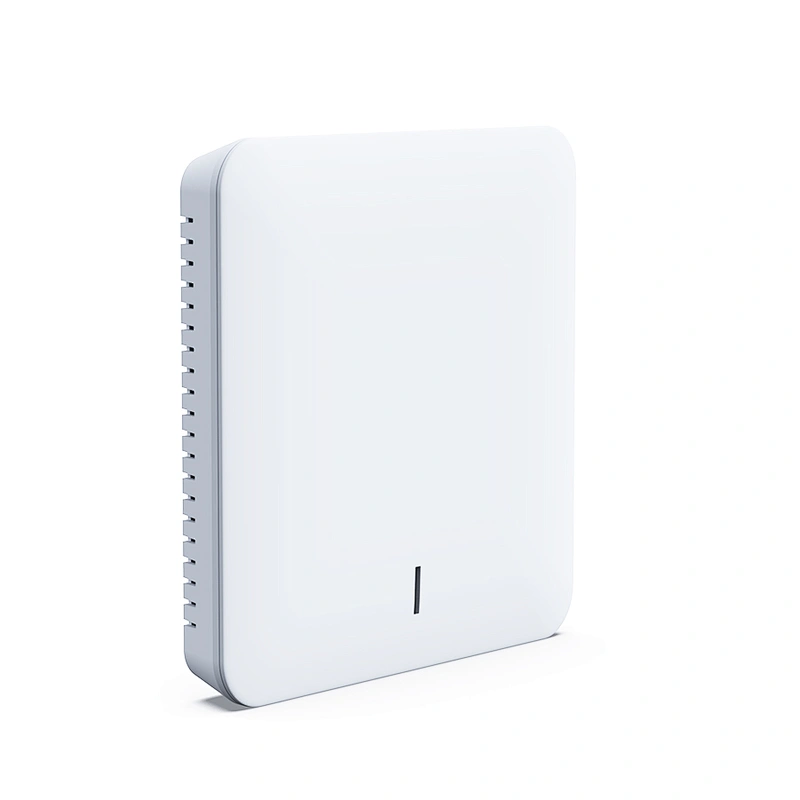

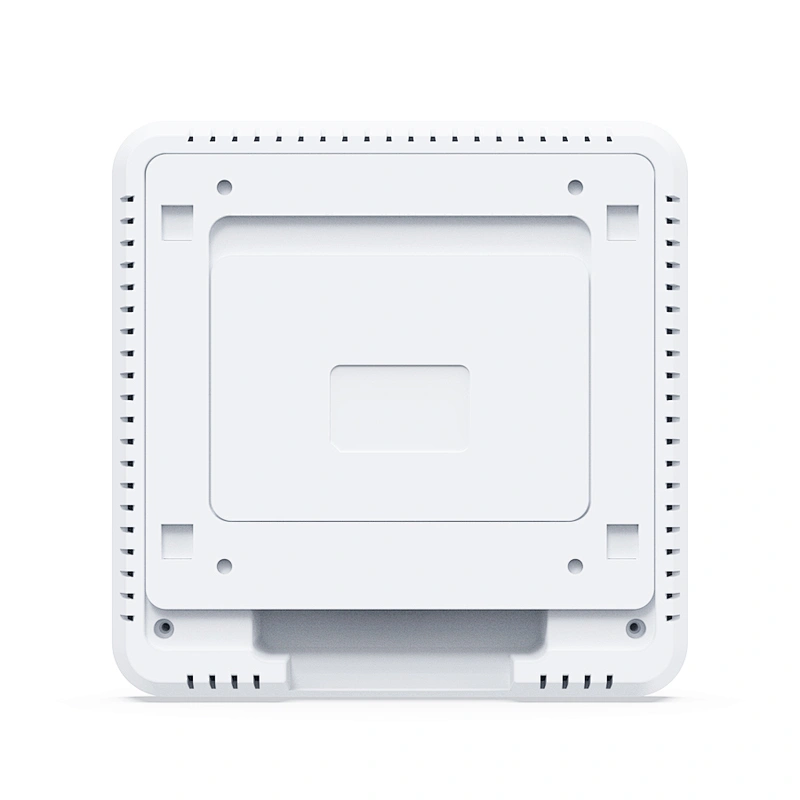

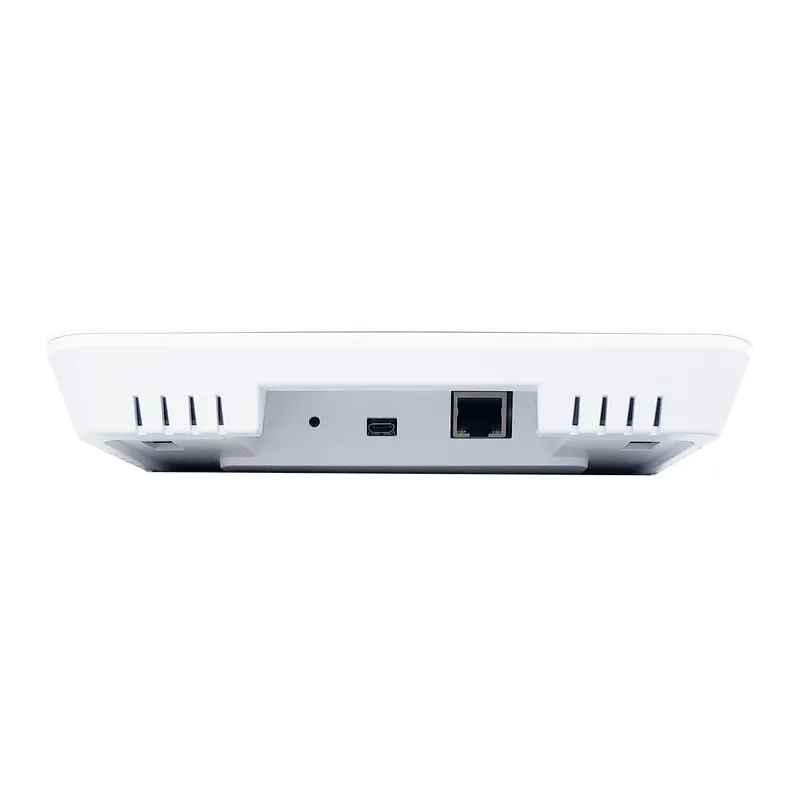

Details Images
Specifications

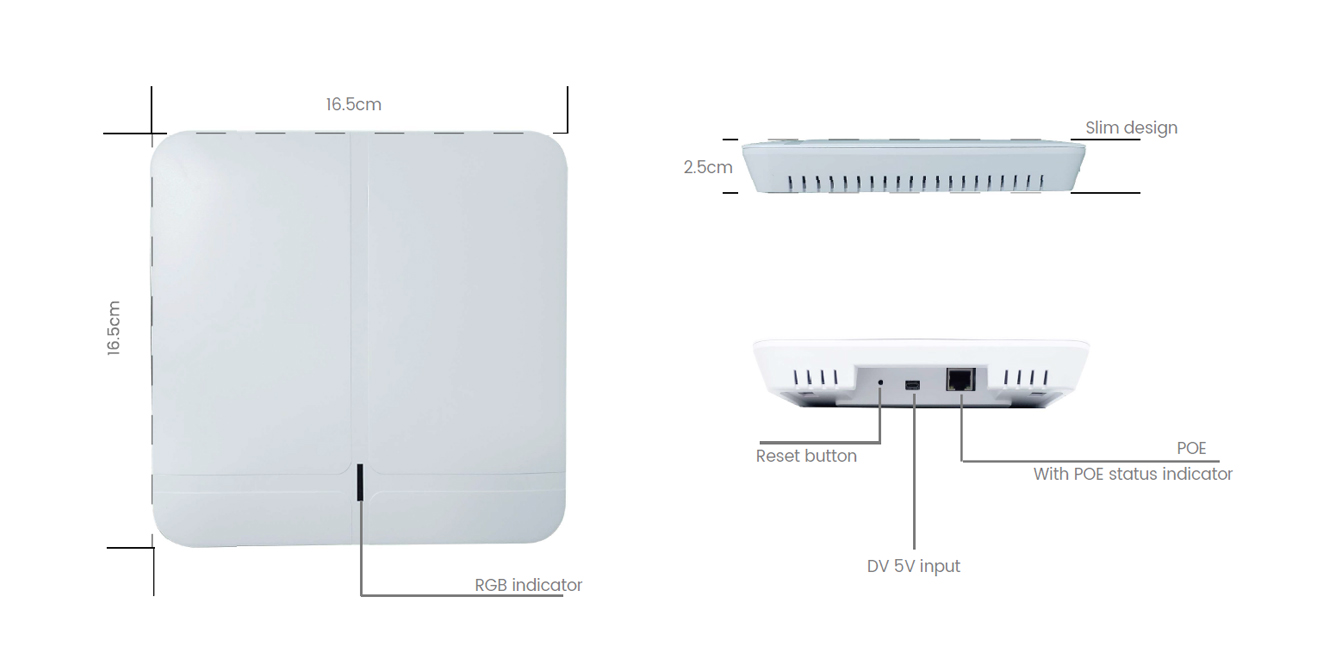

Size
165mm*165mm*25mm
Weight
270g
Material
Industry use plastic
Transmitting Protocol
HTTPS
MQTT
Scanning Ability
>220 beacons per second
Waterproof
N/A
Indicator
RGB LED indicator
BLE Chipset
nRF528 series
Wireless Distance
BLE4.0/BLE4.1/BLE4.2/BLE5.0 up to 300m
(The working distance will be effected by surrounding environment)
Transmitting way
Cellular (USB dongle for 3G/4G), ETH RJ45, WiFi
Working Temp.
-20°C ~+70°C
Storage Temp.
10°C ~+25°C, ≤65%RH

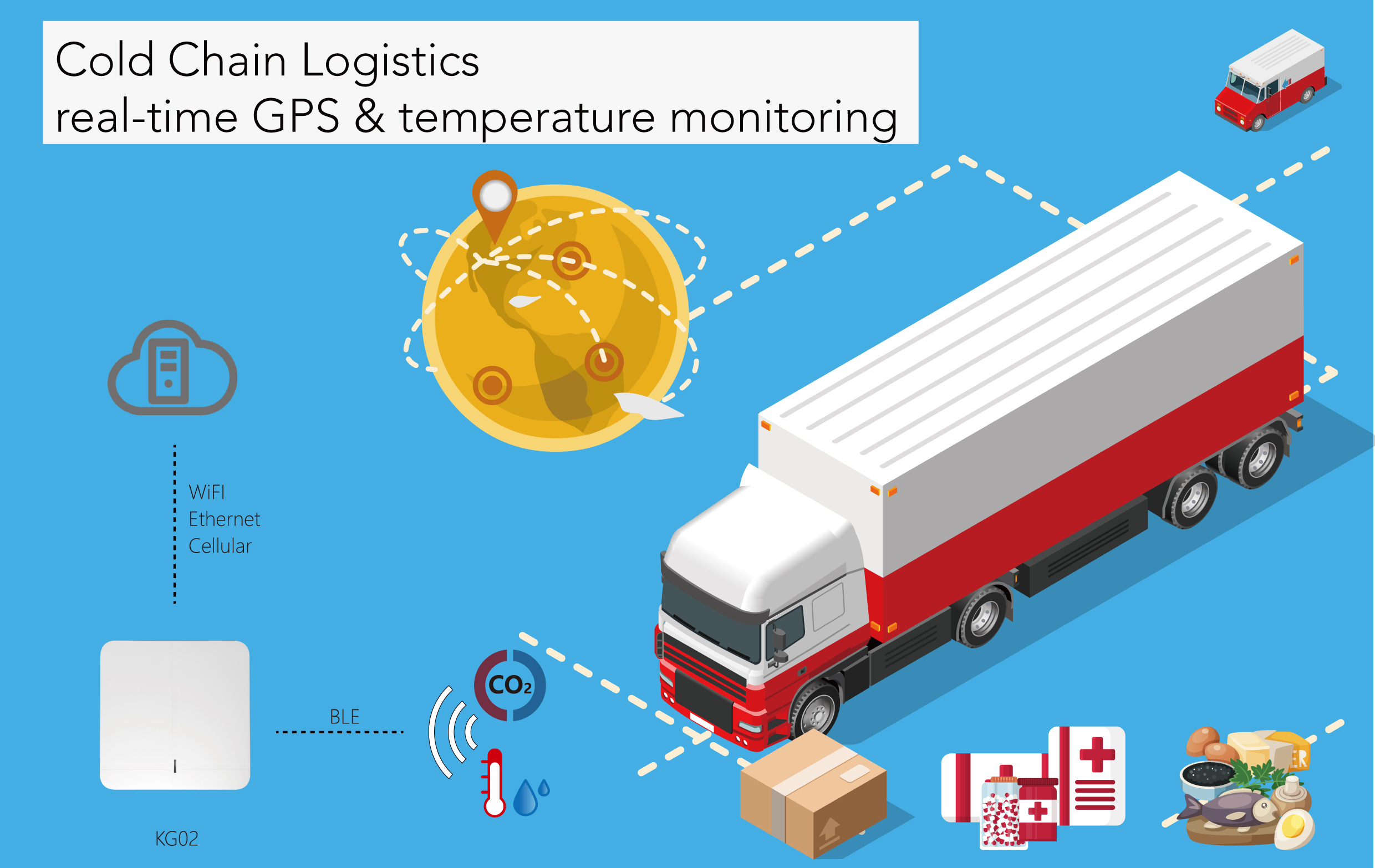

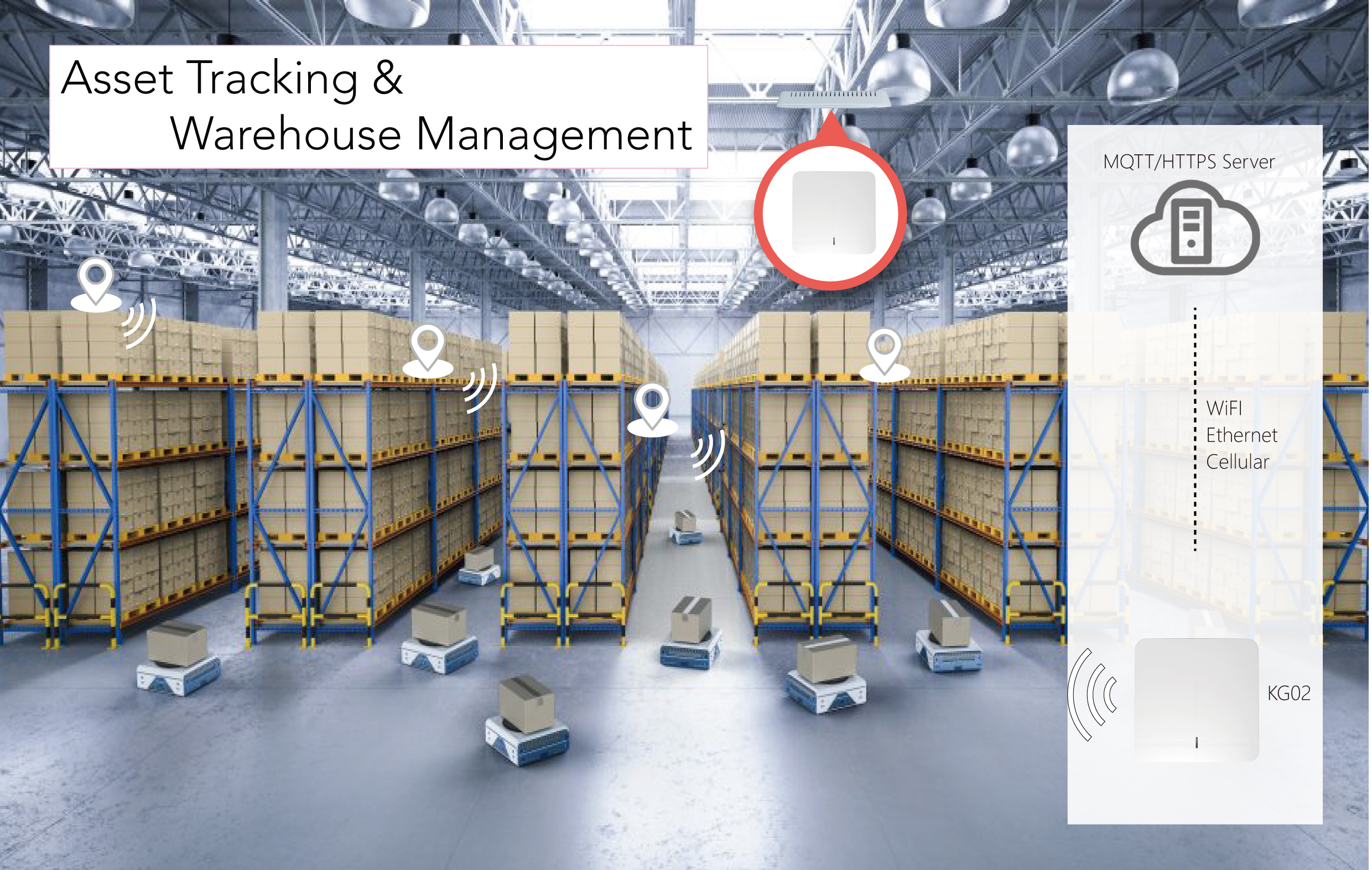

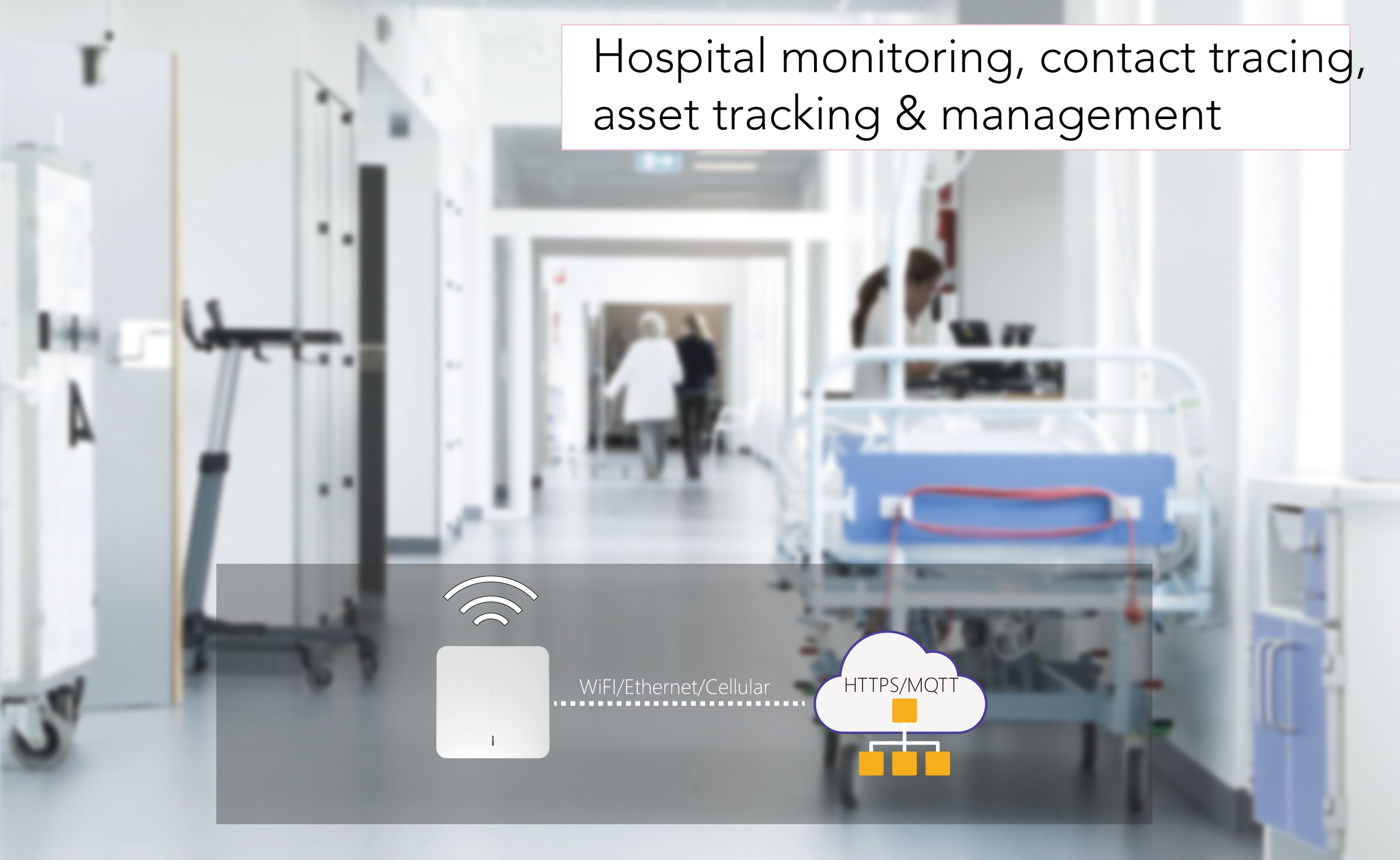

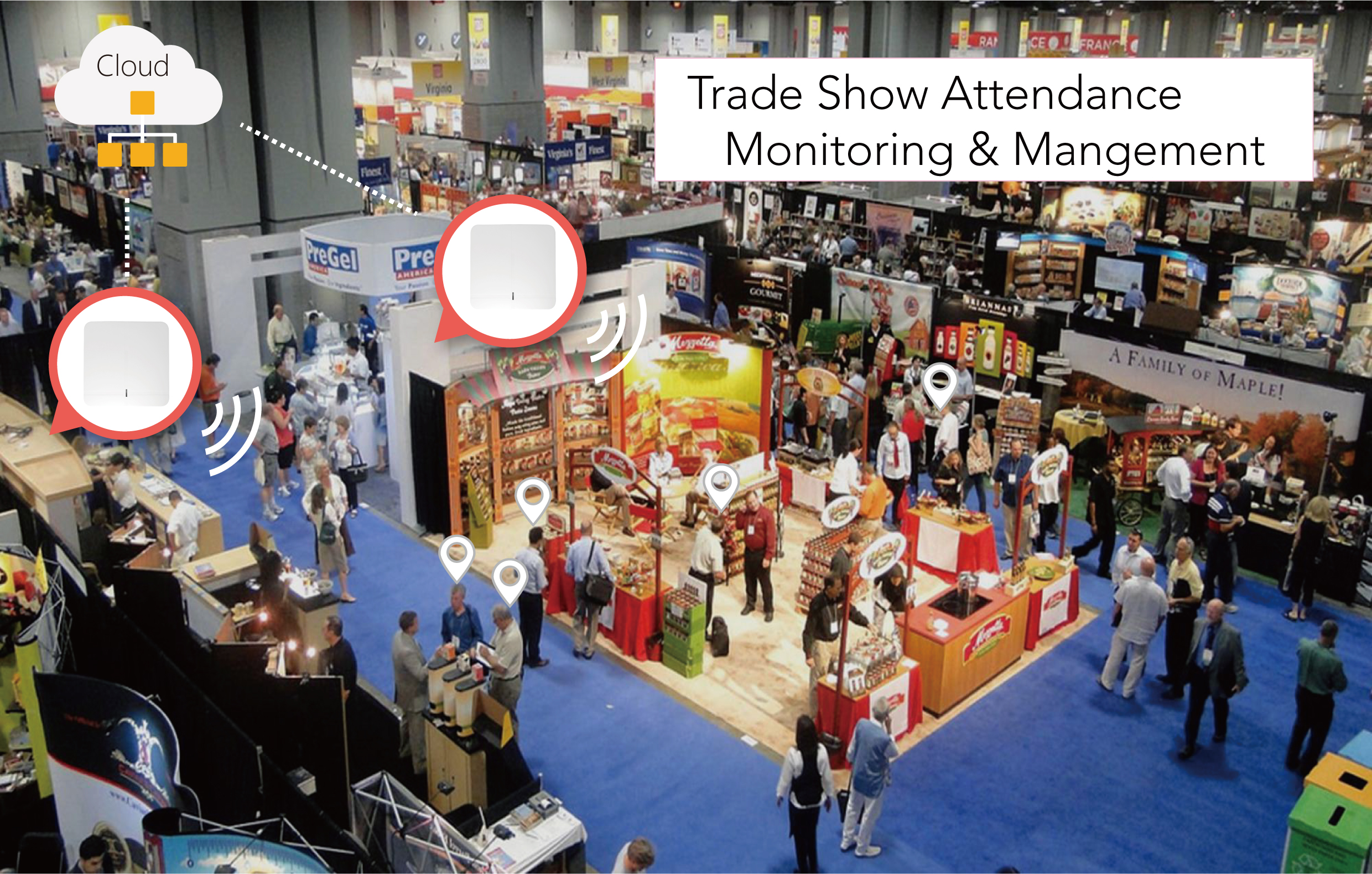

Product Usage

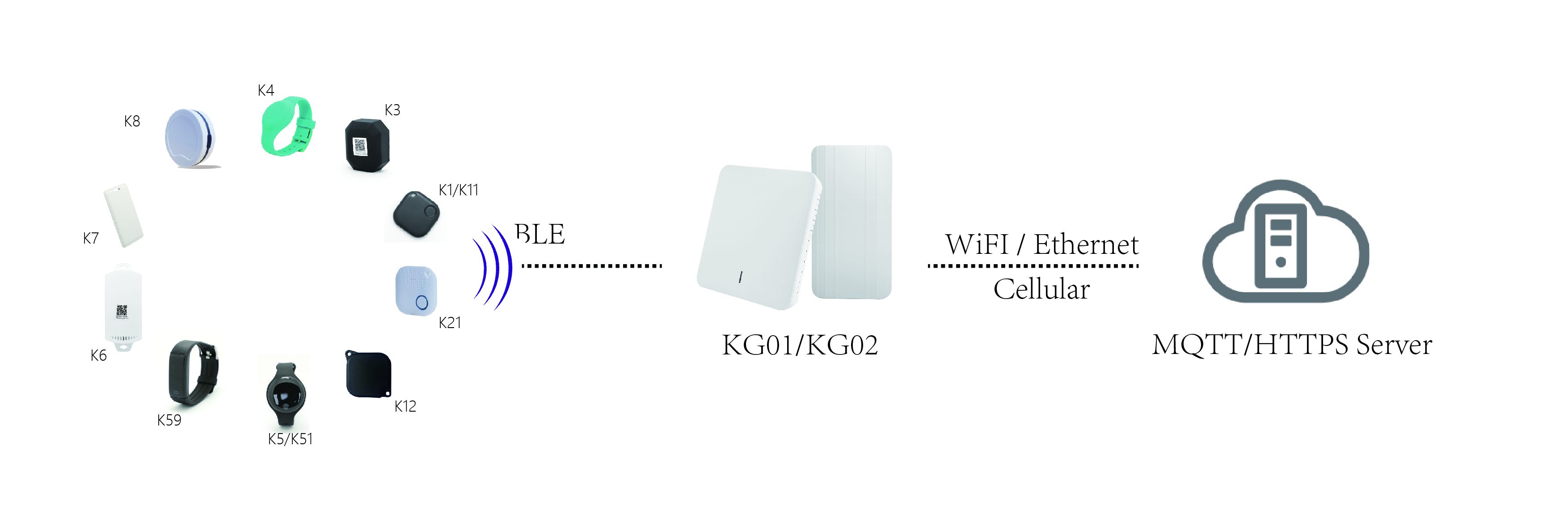

How It Works
KGateway can detect, collect and upload the data of Bluetooth in range, including iBeacon, Eddystone as well as custom format, which support BLE prococol. The gateway upload data to cloud via HTTPS/MQTT, it support the AWS, Azure and etc IoT cloud.
K1：asset management K21: beacon with beep K3: IP67 waterproof with accelerometers sensor K4: Children's Bracelet beacon U1: USB type beacon
K5：Wristband Beacon, support vibration, rechargeable K6：Temperature & humidity sensor K7: Credit card beacon with RFID K8: Mounting Beacon, with accelerometer sensor K9: Ultra-long battery life Beacon
