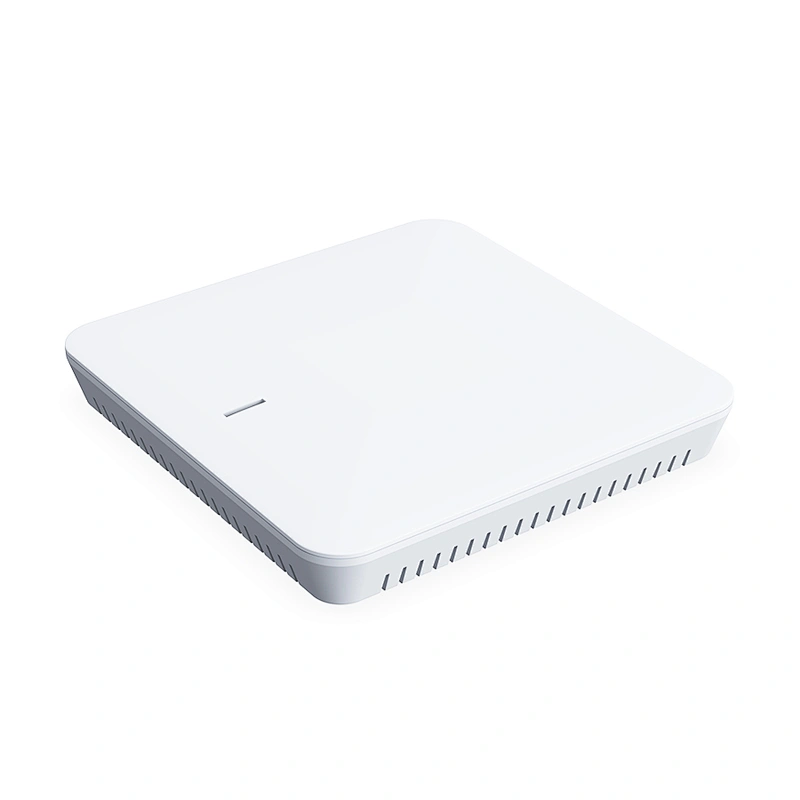

KKM MQTT IOT waterproof ble beacon receiver smart home ethernet wifi ble gateway with led indicator

KKM MQTT IOT waterproof ble beacon receiver smart home ethernet wifi ble gateway with led indicator

Model NO.: Wifi Gateway KG02
Price:: $ 75.00-75.00 / piece
Minimum order quantity: 1 piece
Country of Origin: shenzhen

Product Description

Model Number:Wifi Gateway KG02
Place of Origin:Guangdong, China
Brand Name:KGateway
Chipset:NRF52XXX
Supplier Type:Factory
Application:IOT
Product Name::Wifi Gateway KG02
Product feature::BLE 5.0
Power supply::DC 5V, or POE
Waterproof level::IP54
Wireless distance::BLE5.0 > 300 meters
Material::ABS
Scanning ability::200 beacons per second
Protocol::HTTPS, MQTT
Transmitting way::ETH RJ45 ,WiFi ,WiFi hoppen , US
OEM::Bluetooth Wifi Gateway accept OEM

Product Description

BLE outdoor asset tracking industrial use Waterproof beacon gateway

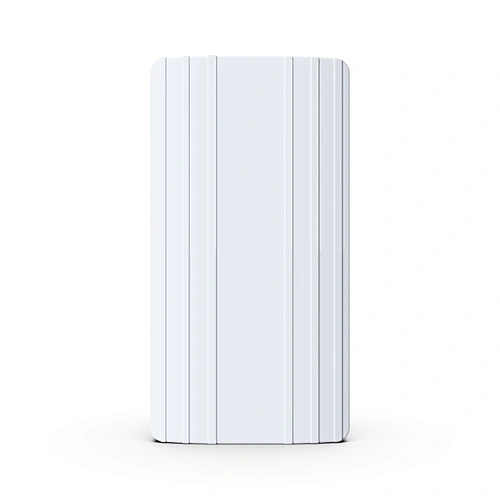

KG02 Gateway

● Support Wi-Fi / Ethernet / Cellular

● Support iBeacon/Eddystone/Kensor and other BLE device
● Support HTTP/HTTPS, MQTT/TLS MQTT
● Powerful network diagnostics
● Hardware level WatchDog, ensure 24-hours full time data upload

● Optional 4G LTE module & GPS module

● Web portal for configuration
● CE/FCC certified

Description

KG02 KBeacon gateway is mainly used for communicating with devices with BLE function, and uploading device data to the cloud, or download cloud data to device. KG02 gateway support cellular (3G/4G), WiFi, WiFi hoppen, or Ethernet network connection. It can be powered by DC 5V, or POE (802.3af). It support Bluetooth 5.0/4.2/4.1/4.0 and newer, e.g. BLE sensor, iBeacon/Eddystone beacon, smart wristband, smart heart rate band.

Manufacturing Technique

General Specification

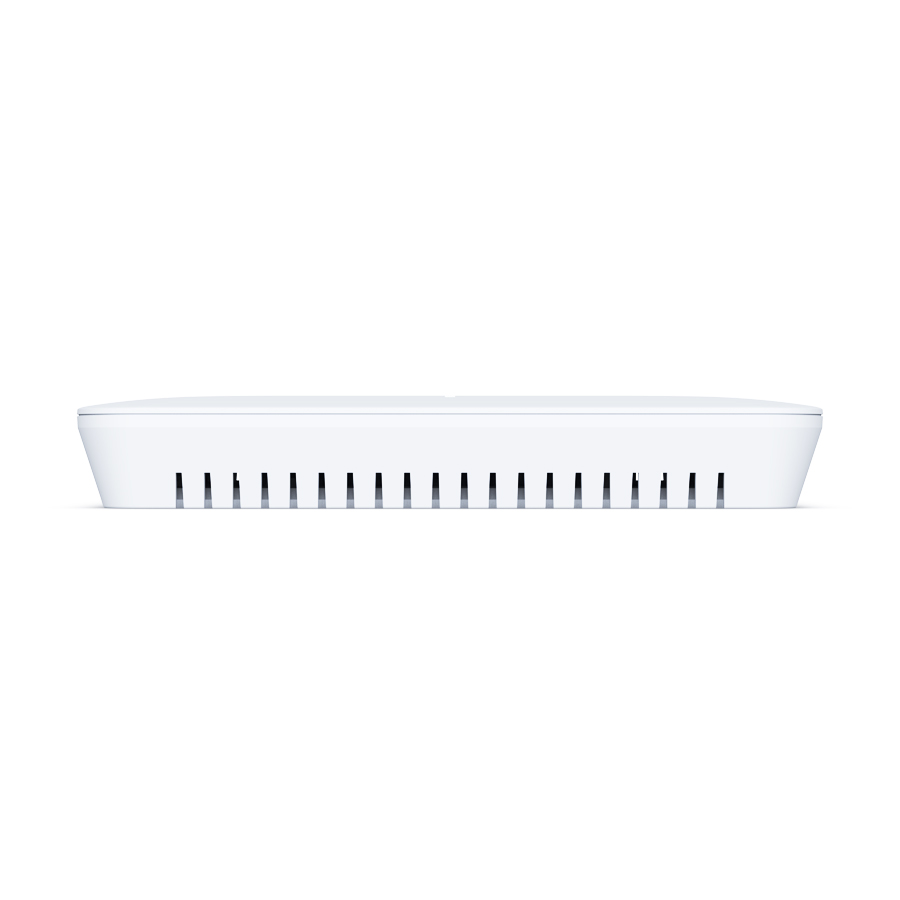

● Slim design
●Input: DC 5V/1A, micro-USB
● 3af/at POE DC standard
● Supports HTTP/MQTT over SSL
● Build-in NTP support
● Supports firmware update Over-the Air
●Operating temperature:-25°C ~65°C

BLE Specification

● Support BLE4.2 and BLE5.0
● With a power amplifier and LNA
● 3dBi high-accuracy antenna
● Scanning capability > 220 device per seconds
● >150meters range in open space
● Rx sensitivity -108dBm
● Bi-directional (reads data/send command)

Wi-Fi Specification

● Update to 300Mbps
● Supports WPA/WPA2, 802.1x enterprise EAP
● 3dBi high-accuracy antenna
● 100meters in open space
● 2T2R 2.4G frequency band
● Web portal UI configuration

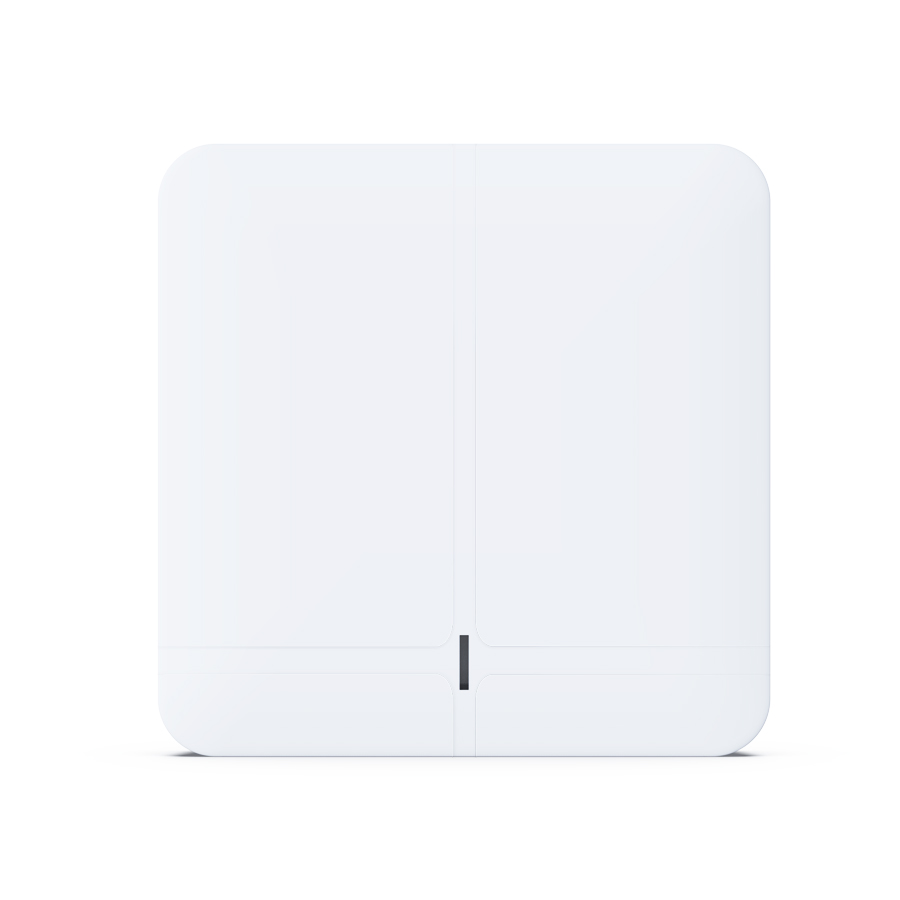

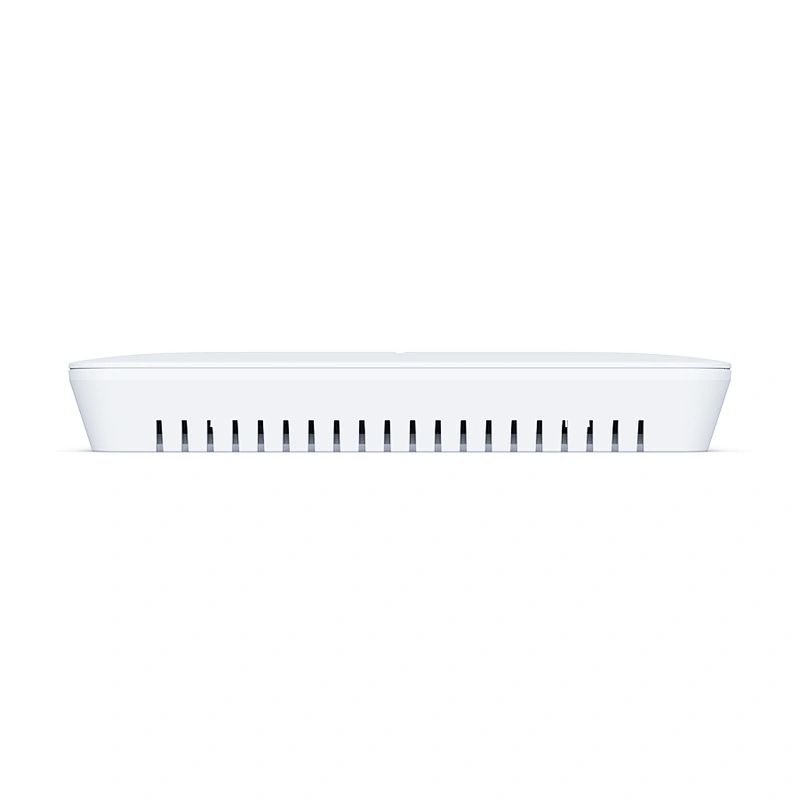

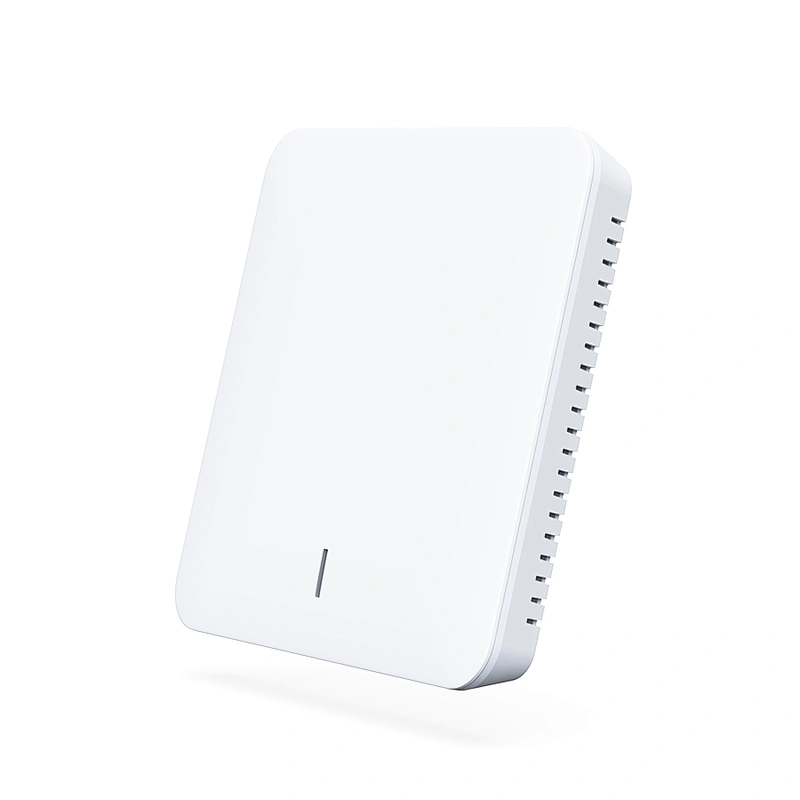

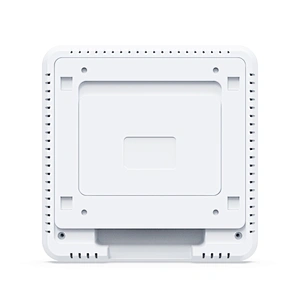

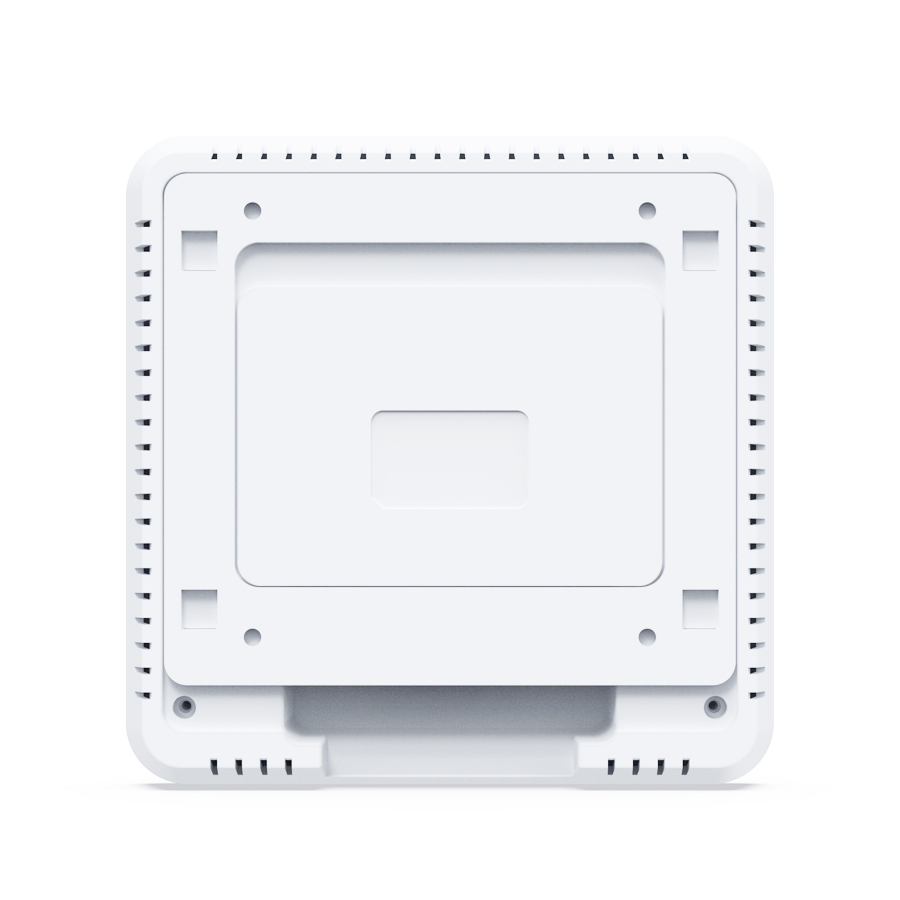

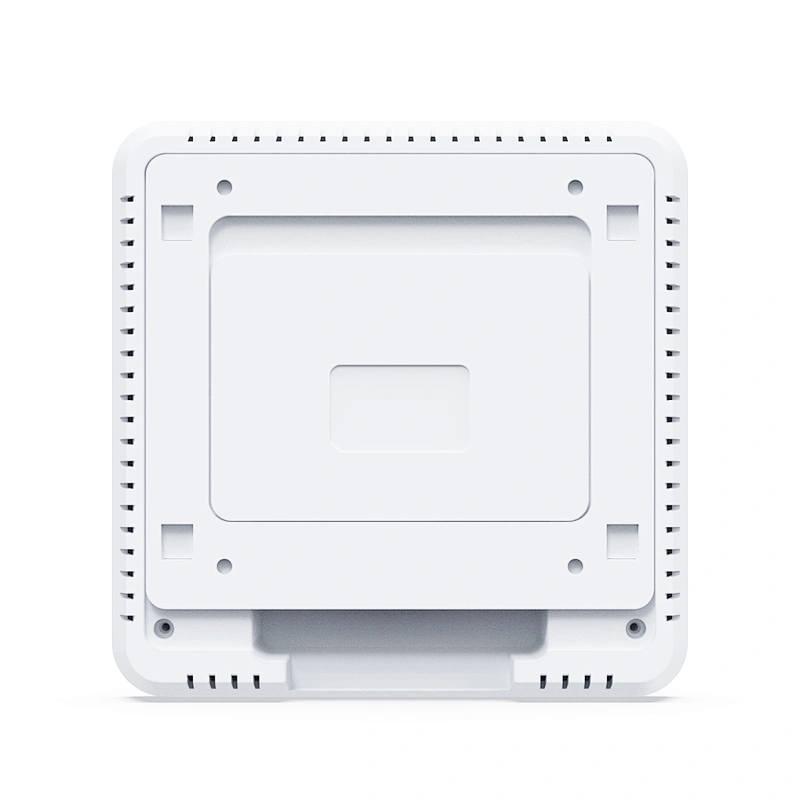

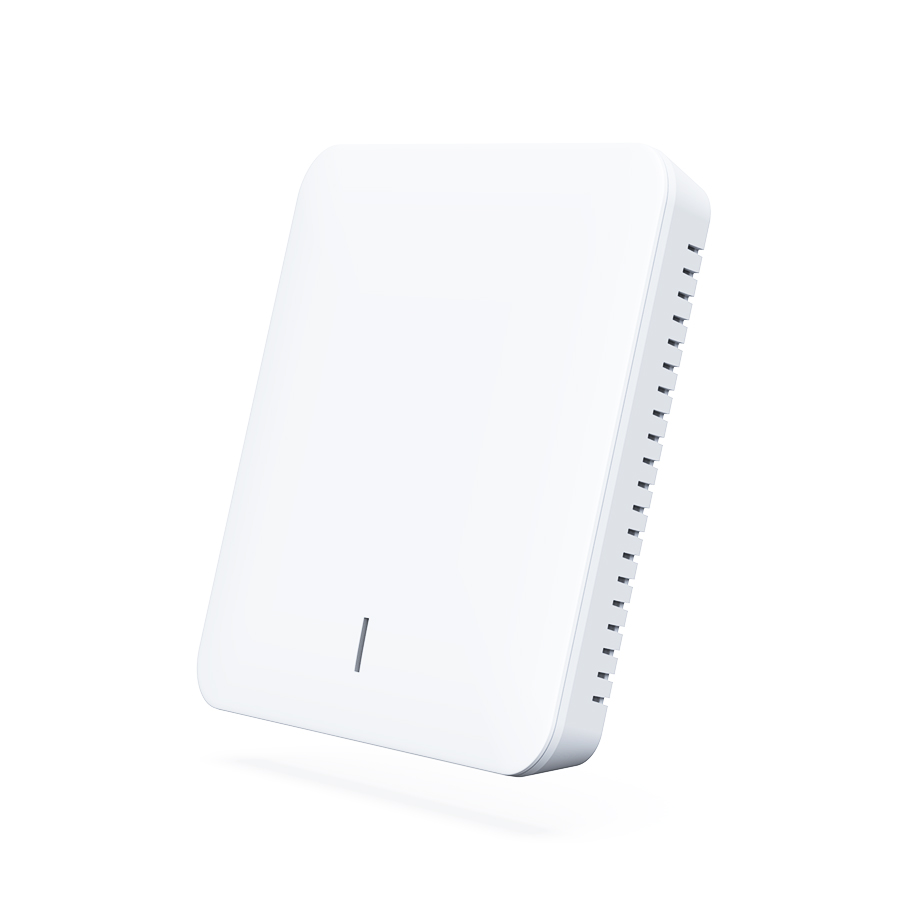

Details Images

Specifications

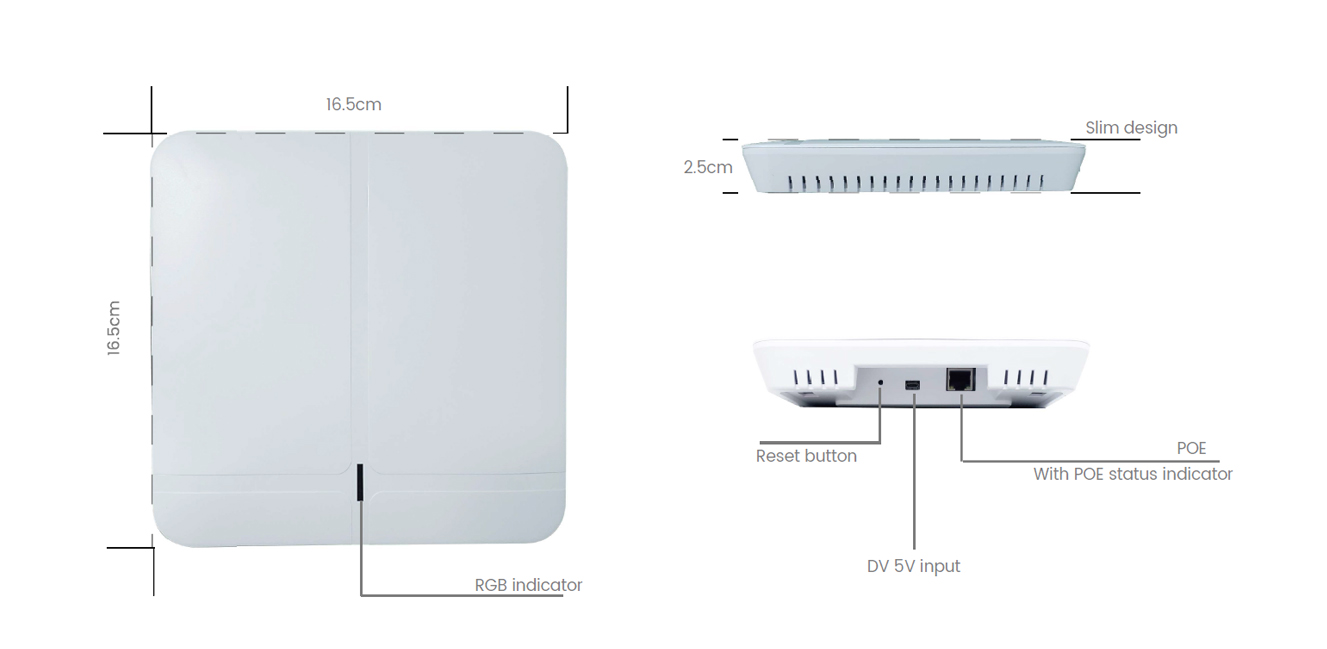

Size	165mm165mm25mm	Weight	270g
Material	Industry use plastic	Transmitting Protocol	HTTPS MQTT
Scanning Ability	>220 beacons per second	Waterproof	N/A
Indicator	RGB LED indicator	BLE Chipset	nRF528 series
Wireless Distance	BLE4.0/BLE4.1/BLE4.2/BLE5.0 up to 300m (The working distance will be effected by surrounding environment)
Transmitting way	Cellular (USB dongle for 3G/4G), ETH RJ45, WiFi
Working Temp.	-20°C ~+70°C	Storage Temp.	10°C ~+25°C, ≤65%RH

Product Usage

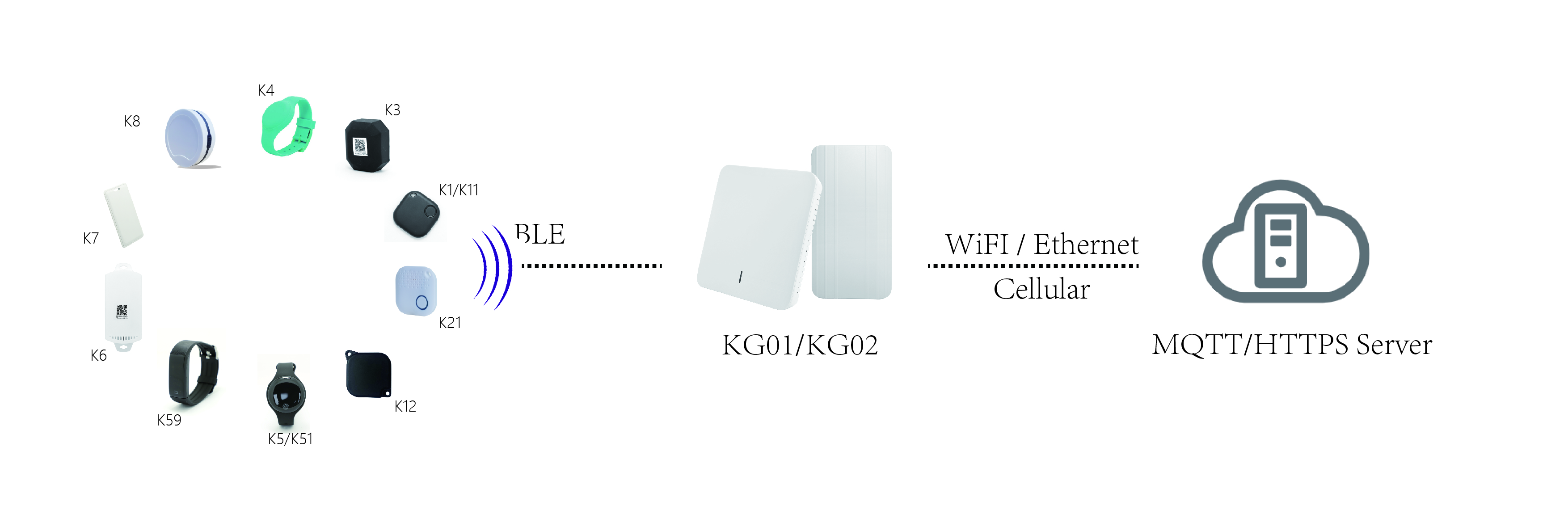

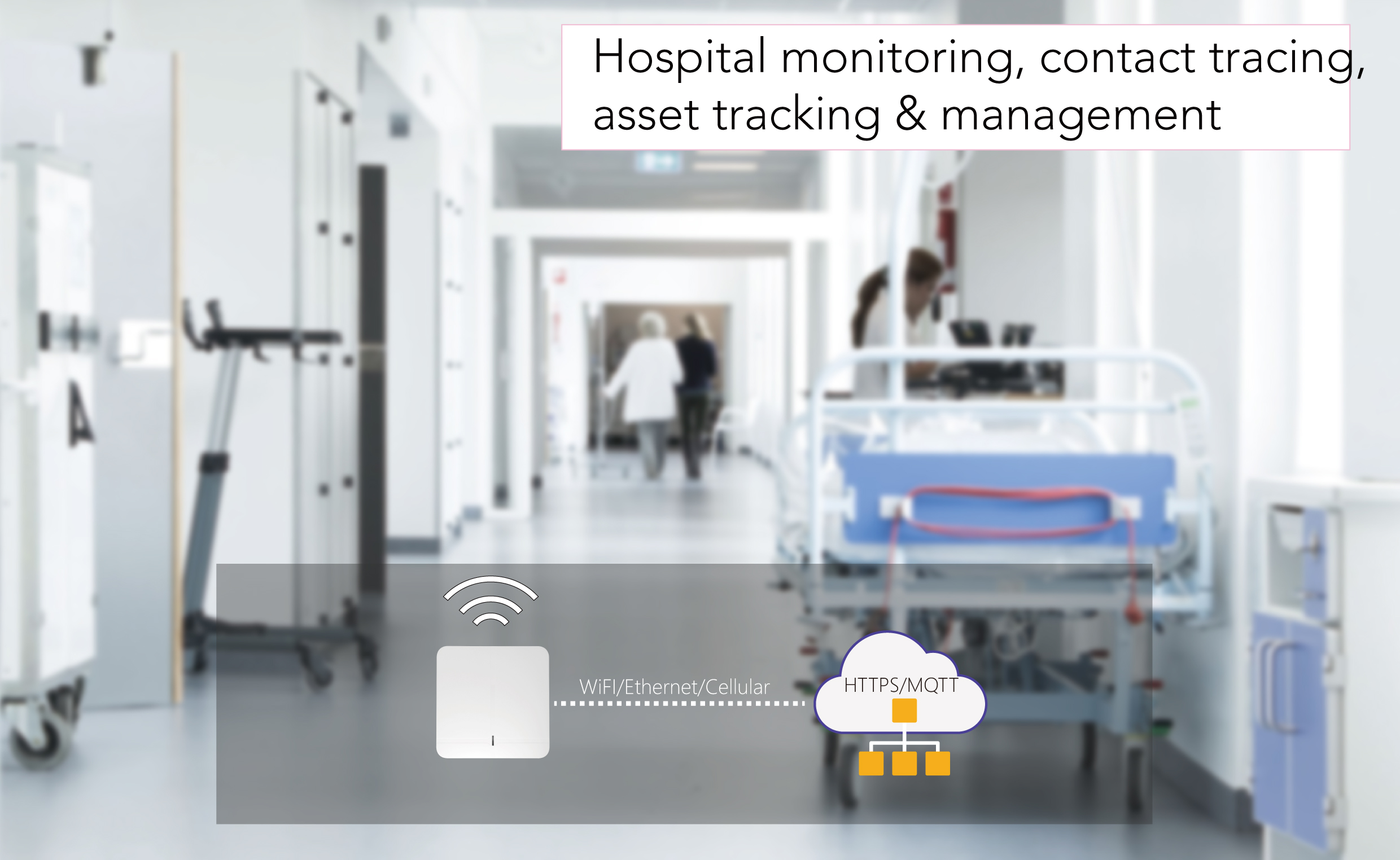

How It Works

KGateway can detect, collect and upload the data of Bluetooth in range, including iBeacon, Eddystone as well as custom format, which support BLE prococol. The gateway upload data to cloud via HTTPS/MQTT, it support the AWS, Azure and etc IoT cloud.

K1：asset management
K21: beacon with beep
K3: IP67 waterproof with accelerometers sensor
K4: Children's Bracelet beacon
U1: USB type beacon

K5：Wristband Beacon, support vibration, rechargeable
K6：Temperature & humidity sensor
K7: Credit card beacon with RFID
K8: Mounting Beacon, with accelerometer sensor
K9: Ultra-long battery life Beacon

Application

iBeacon/Eddystone/BLE tag receiver

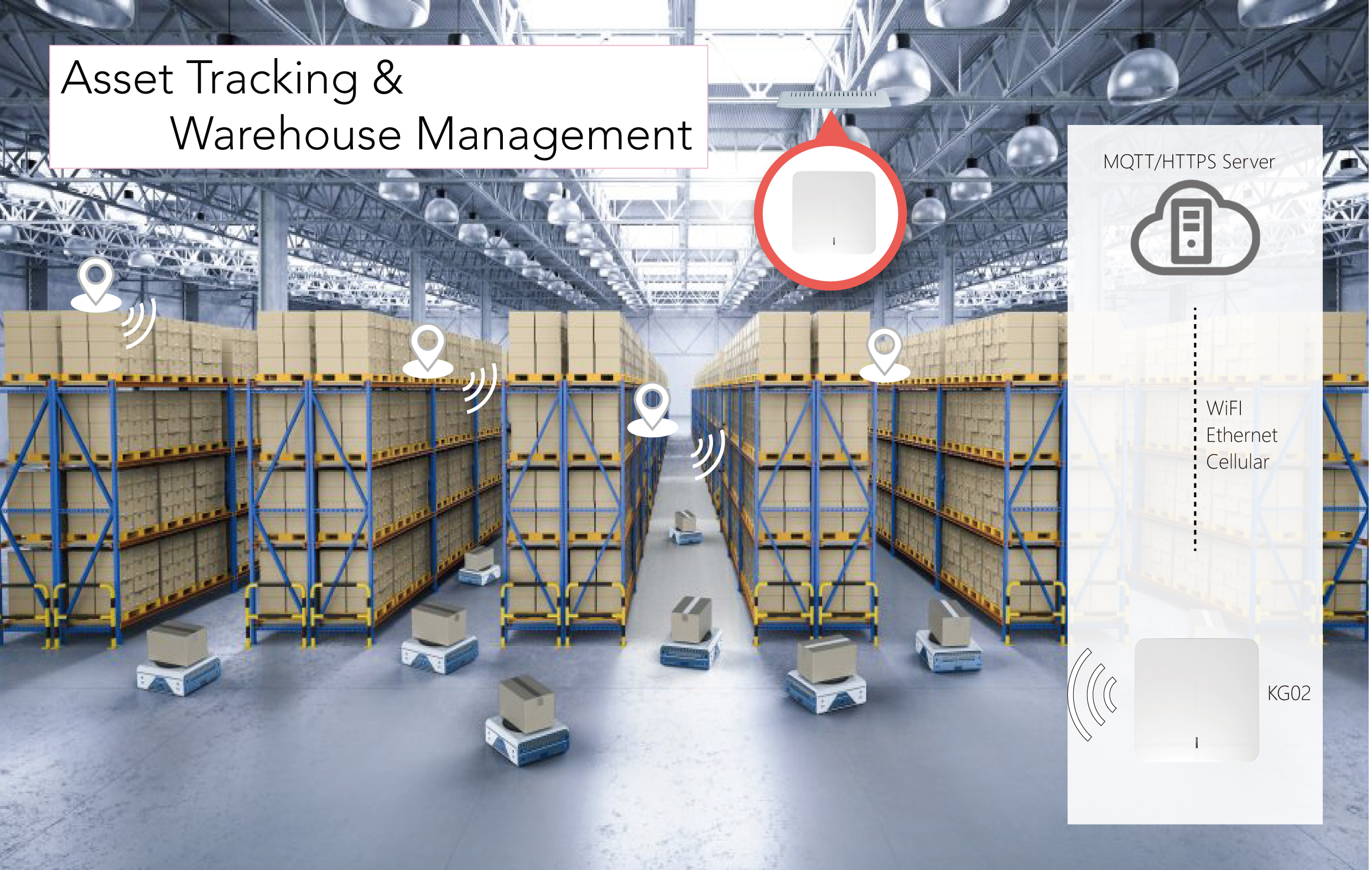

Asset tracking

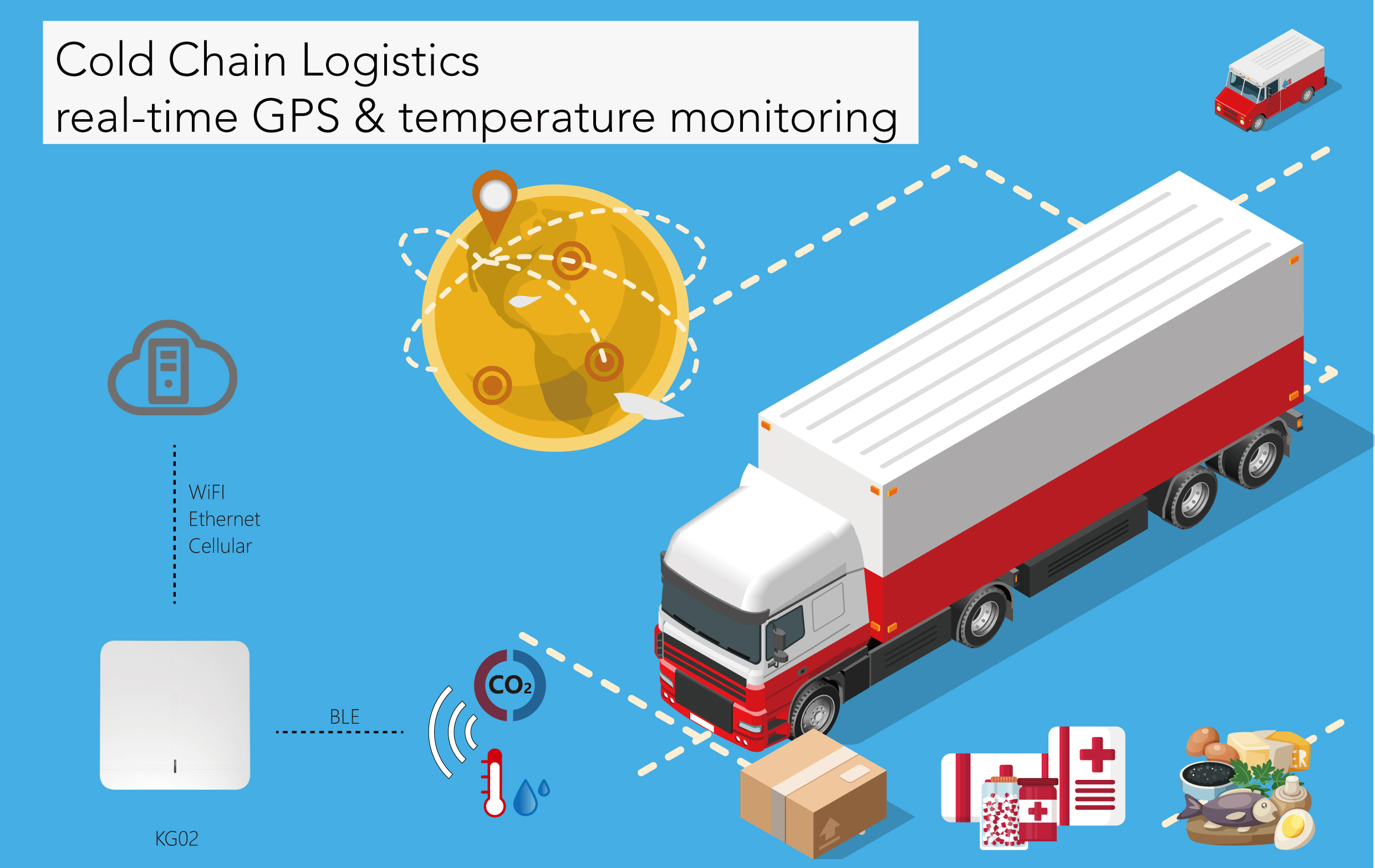

Temperature&humidity tracking and monitoring

Indoor navigation & mapping

Industrial automation

Trade Show management
