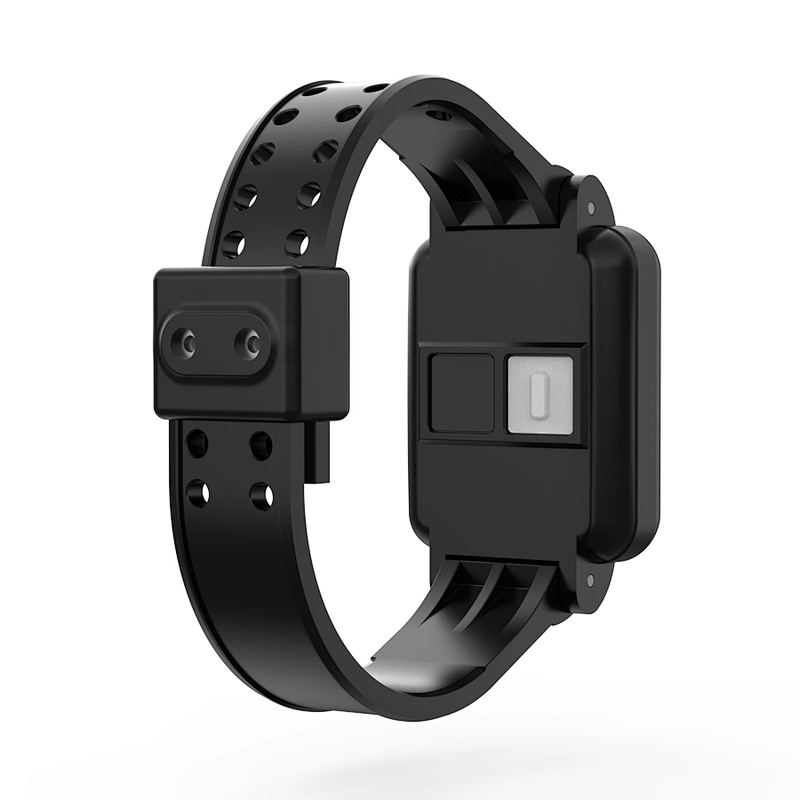

IoT prisoner location monitoring Beacon cutting-off alarm Bracelet Bluetooth5.0 Beacon with temperature sensor

IoT prisoner location monitoring Beacon cutting-off alarm Bracelet Bluetooth5.0 Beacon with temperature sensor

Model NO.: Beacon Ibeacon W7
Price:: $ 25.00-25.00 / piece
Minimum order quantity: 1 piece
Country of Origin: Shenzhen

Product Description

Model Number:Beacon Ibeacon W7
Place of Origin:Guangdong, China
Brand Name:KKM
Chipset:NRF528XX
Supplier Type:manufacturer
Application:public
Model:Anti-dismantle Beacon
Battery life:12 months
Battery:Rechargeable
Size:Dia 40mm*260mm
Weight:23g
Working distance:100m
protocol:iBeacon/Eddystone/KBeacon
Certification:CE FCC RoHS
Warranty:1 year

Product Description

IoT prisoner location monitoring Beacon cutting-off alarm Bracelet Bluetooth5.0 Beacon with temperature sensor

Anti tamper bracelet beacon

● Anit tamper, trigger advertisement if it's cut, dissambled or taken off.

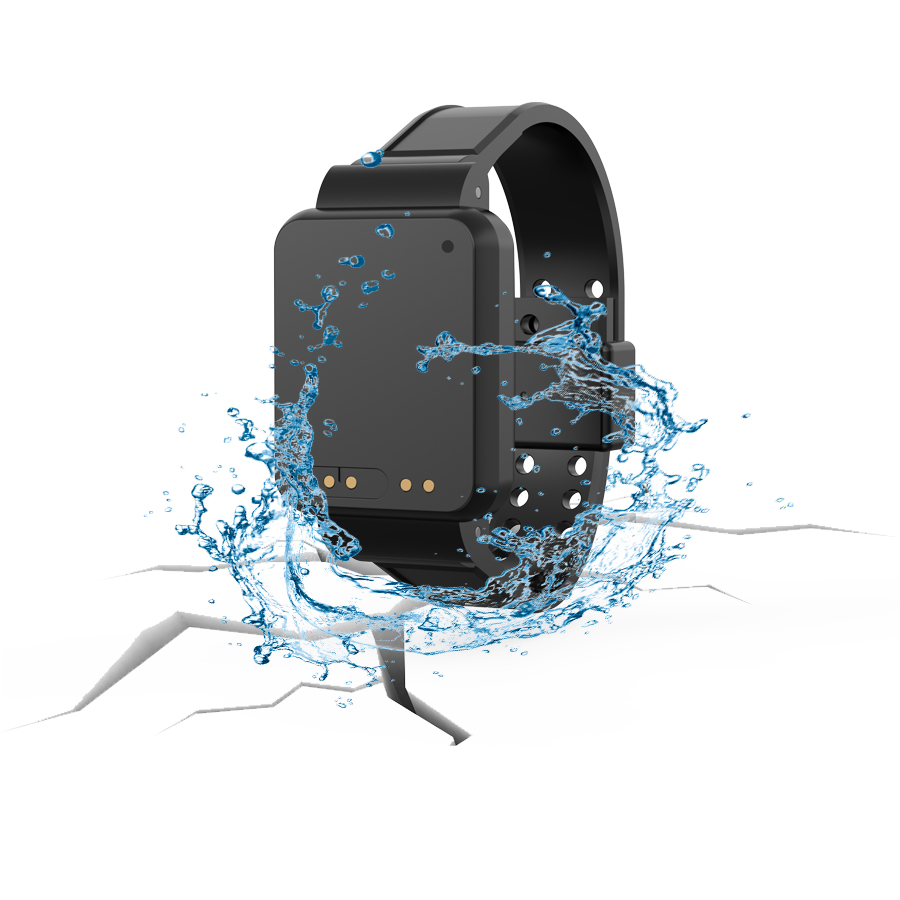

● IP67 waterproof

● Temperature sensor, upload body temperature in real-time

● Up to offline40,000 temperature records

●Support button trigger (SOS button/ Remote control/ Panic button etc.)

● Wristband design , easy to carry.

● Rechargeable battery

●Chipset: nRF52 series

● Bluetooth range: up to 100m

● CE/FCC qualified

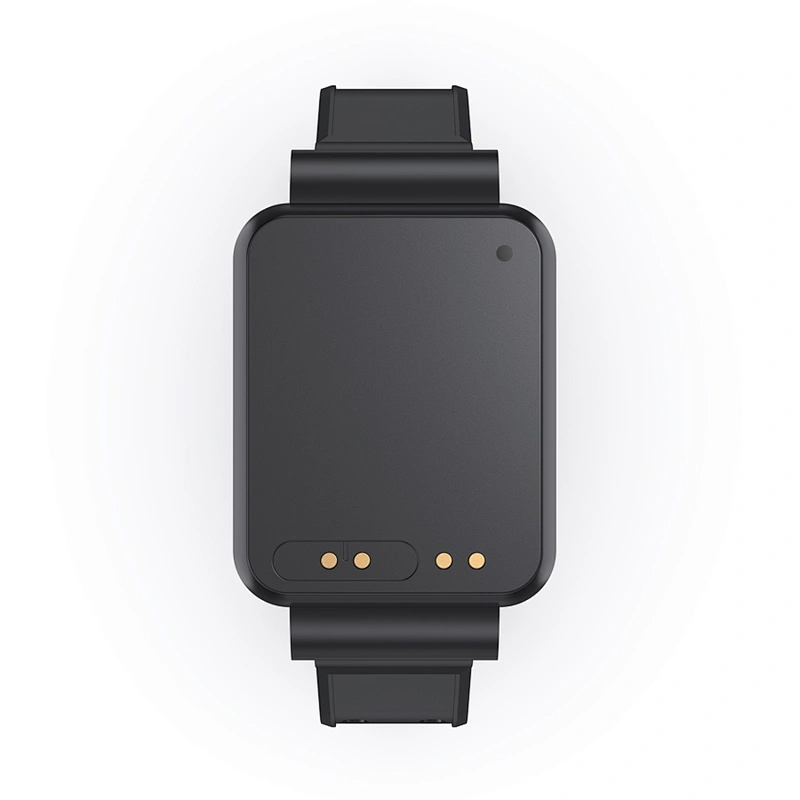

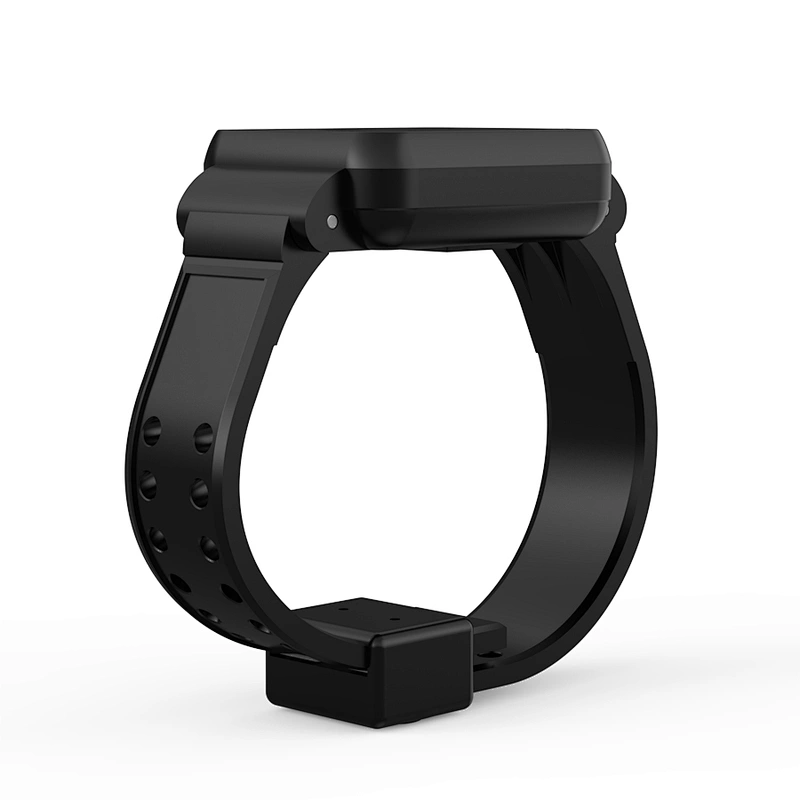

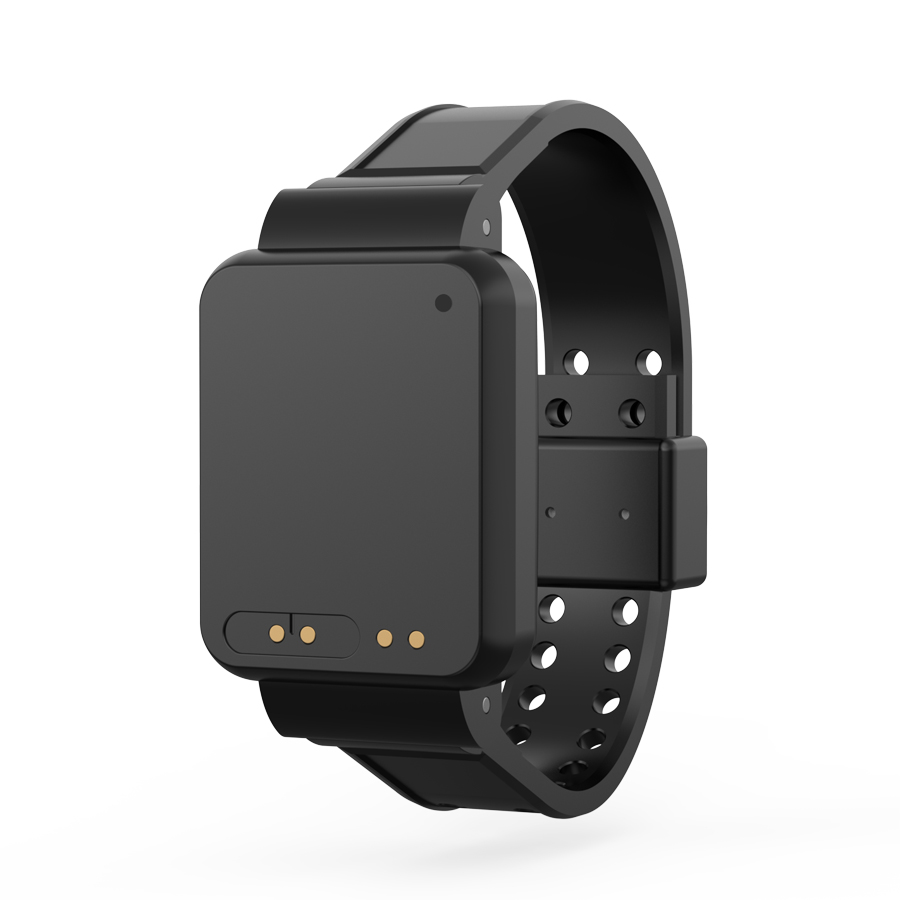

Wearable W7 Beacon

W7 Beacon is wearable bracelet Beacon with ultra low power chipset nRF52 series and BLE 5.0 technology.

W7 Beacon is a strong and duratble wristband Beacon designed for adult in hospital, prison and etc. It is designed for people management and indoor location-based service.

W7 is built with temperature sensor, it monitor body temperature and broadcast via Eddystone TLM and KSensor protocol.

W7 support offline temperature storage.

W7 Beacon broadcasts 2.4GHz radio signals at regular and adjustable intervals.

W7 Beacon can communicate and intergrate with iOS, Android or other BLE4.0/5.0 enabled devices.

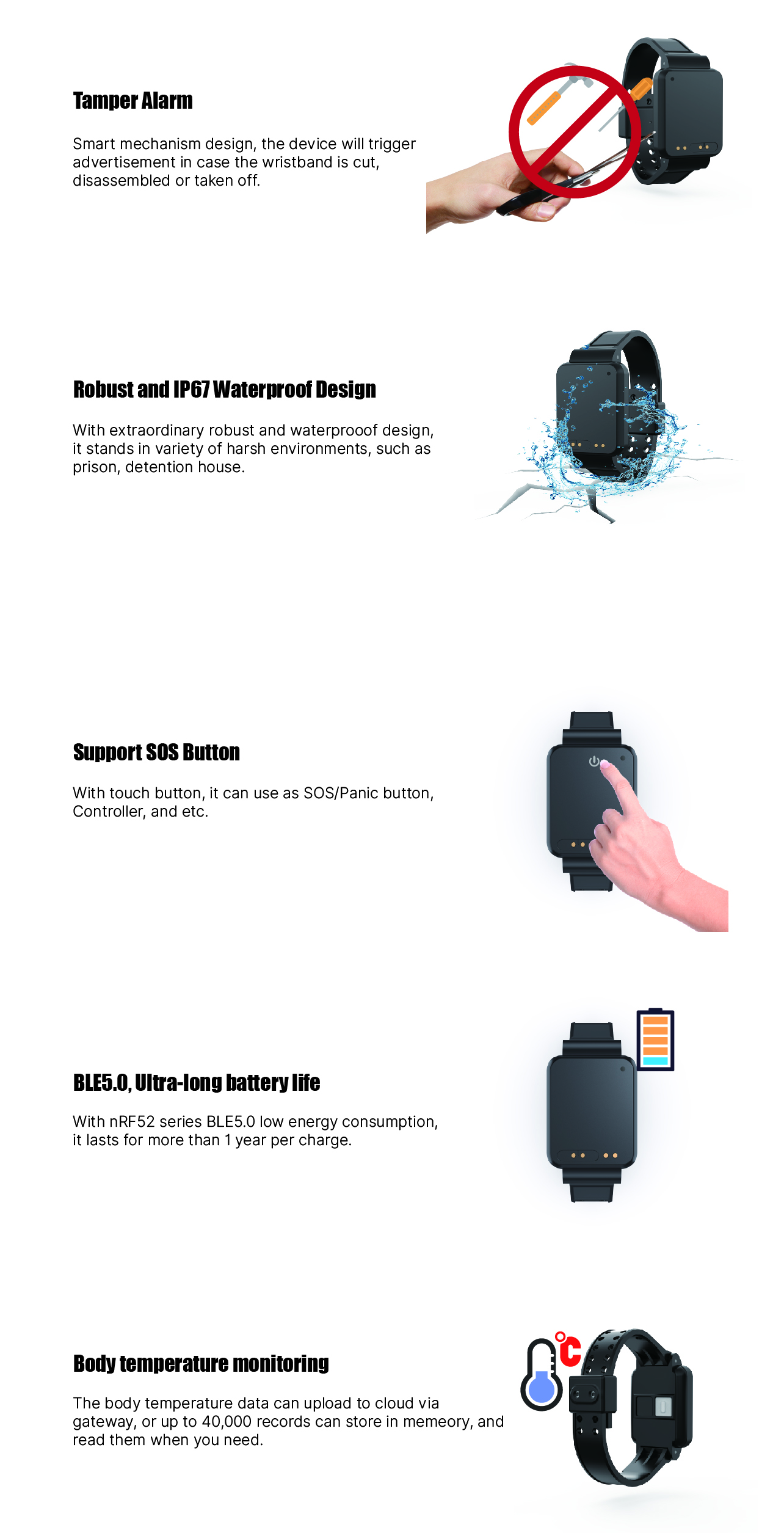

Highlights

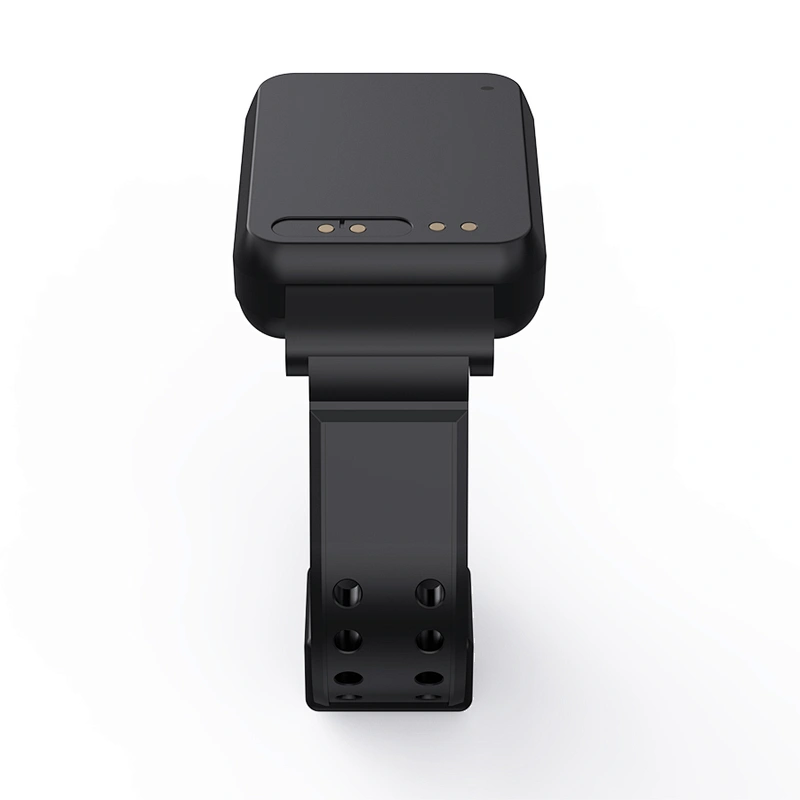

Details Images

Size	45mm50mm260mm	BLE Version	BLE5.0
Material	ABS	Protocol	iBeacon/Eddystone/Ksensor
Weight	48g (with battery)	OTA	YES
Battery	Li-ion rechargeable battery	Button	N/A
Battery Life	Up to 18months per charge	Sensor	Body temperature sensor
Wristband Color	can be customized	Working Temperuature	-40°C ~+70°C
Chipset	nRF52 series	Storage Temperature	10°C ~+25°C, ≤65%RH

Product Usage

How it works

1, You can use smartphone App to connect to the W7 Beacon and read the data. We can provide the SDK and library for you to develop your own App and do integration.

2,The W7 Beacon can also connect to KGateway KG01/ KG02 via Bluetooth. The KGateway can collect W7 Beacon data and upload to cloud server via LTE/WIFI/Ethernet in real-time. KKM wil provide you the KGateway API to do integration to your system.

Application

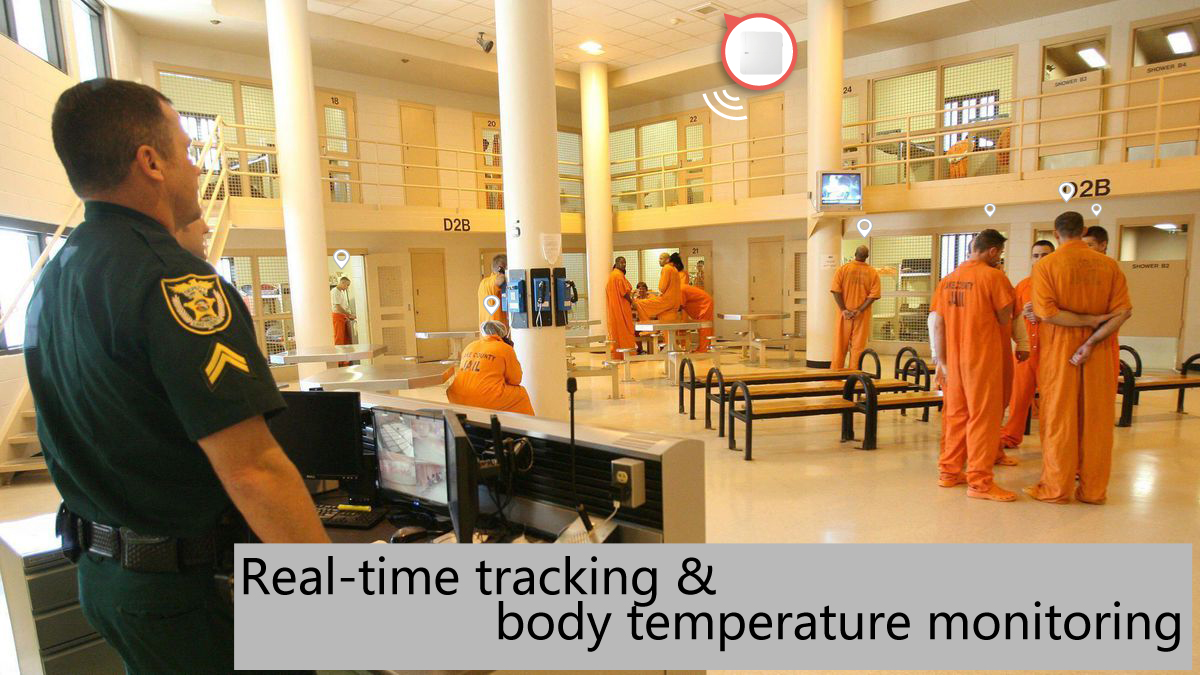

--Jail tracking and monitoring

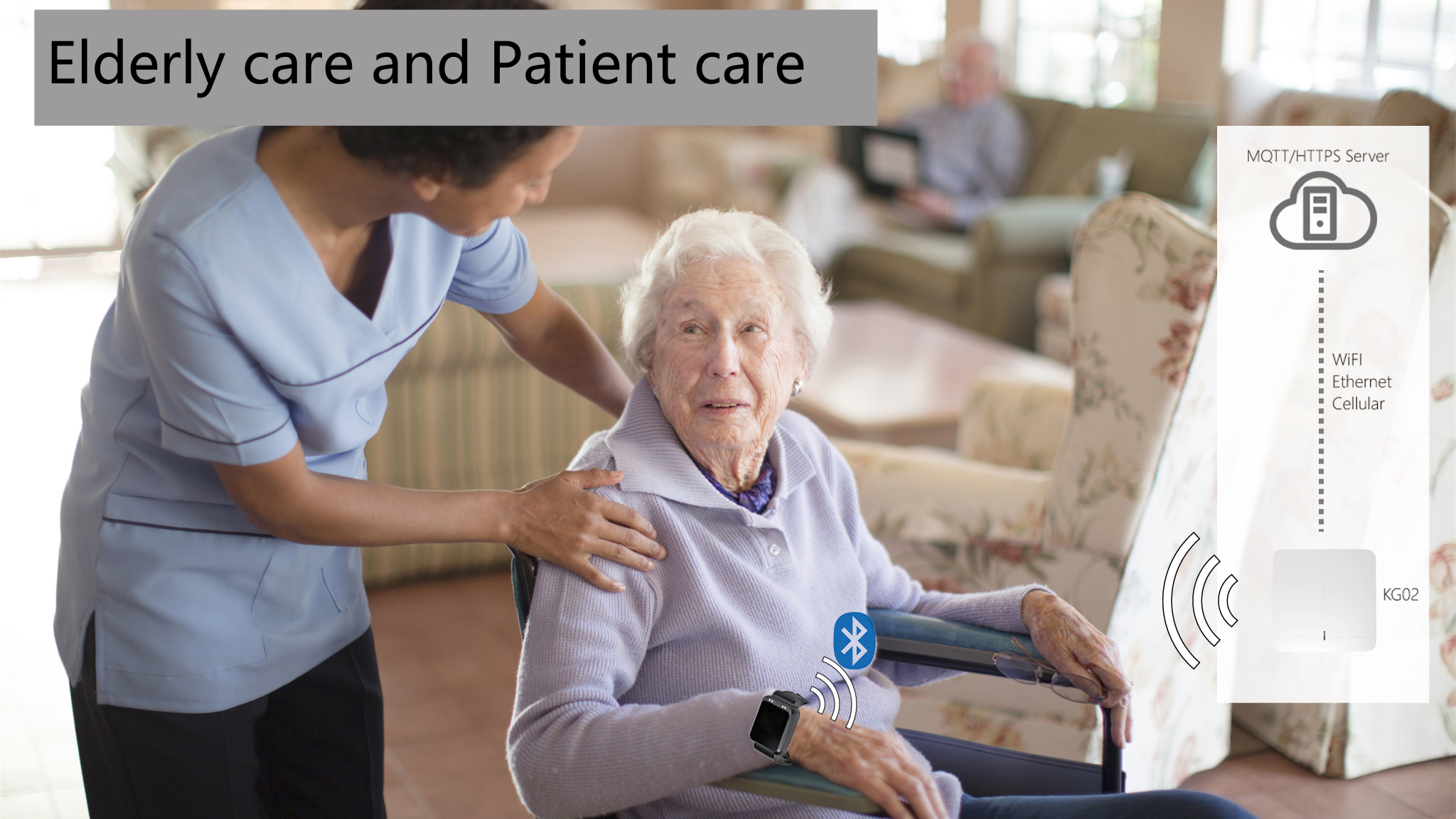

--Elder or patient care
--Panic button/SOS button/Remote
--And more
