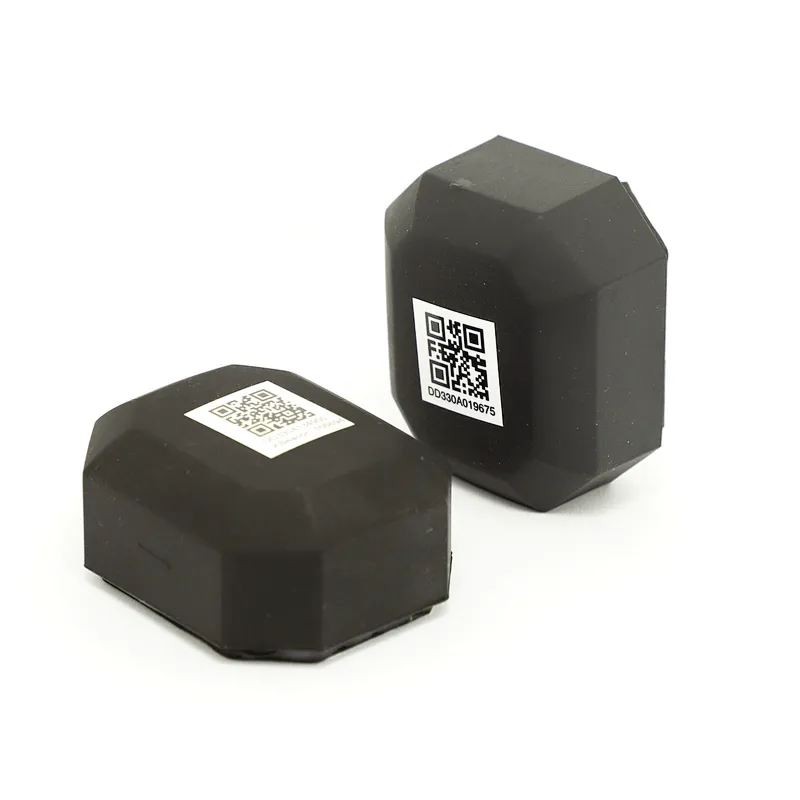

Support Integration Waterproof Ble 5.0 Nordic chip Programmable IoT Beacon Eddystone iBeacon

Support Integration Waterproof Ble 5.0 Nordic chip Programmable IoT Beacon Eddystone iBeacon

Model NO.: eddystone ibeacon K3
Price:: $ 4.28-4.88 / piece
Minimum order quantity: 1 piece
Country of Origin: shenzhen

Product Description

Model Number:eddystone ibeacon K3
Place of Origin:Guangdong, China
Brand Name:KKM
Chipset:Nordic nRF52 Series
Supplier Type:Manufacturer
Application:Public
Compatibility:iOS 8.0+ and Android 4.3+ system
Material for ibeacon:Silicone
Size:46*39*22mm
Battery:CR2477
Weight:37g with battery
Battery lifetime:Up to 4 years
Transmission Range:100 meters
Protocol:iBeacon,Eddystone
Certification:CE FCC RoHS

Product Description

Support Integration Waterproof Ble 5.0 Nordic chip Programmable IoT Beacon Eddystone iBeacon

K3 Sensor Beacon

• Chip: Nordic nRF52 series
• Bluetooth range: 100 meters
• Accelerometer sensor
• Up to 4 years battery life
• FCC/CE certified
• Support iBeacon/Eddystone/KSensor
• SDK or Library Provided
• IP67 waterproof

K3 Sensor Beacon
● K3 Beacon is a IP67 waterproof Beacon with accelerometer sensor, it has ultra low power chipset Nordic nRF52 series and BLE 5.0
techology.
● Device Name, TX Power, Advertisement period, UUID, Major ID, Minor ID can be configured with KBeacon APP.
● The Mac address, MajorID and MinorID is unique in each beacon. ● We can also customize or configure the parameter you need.

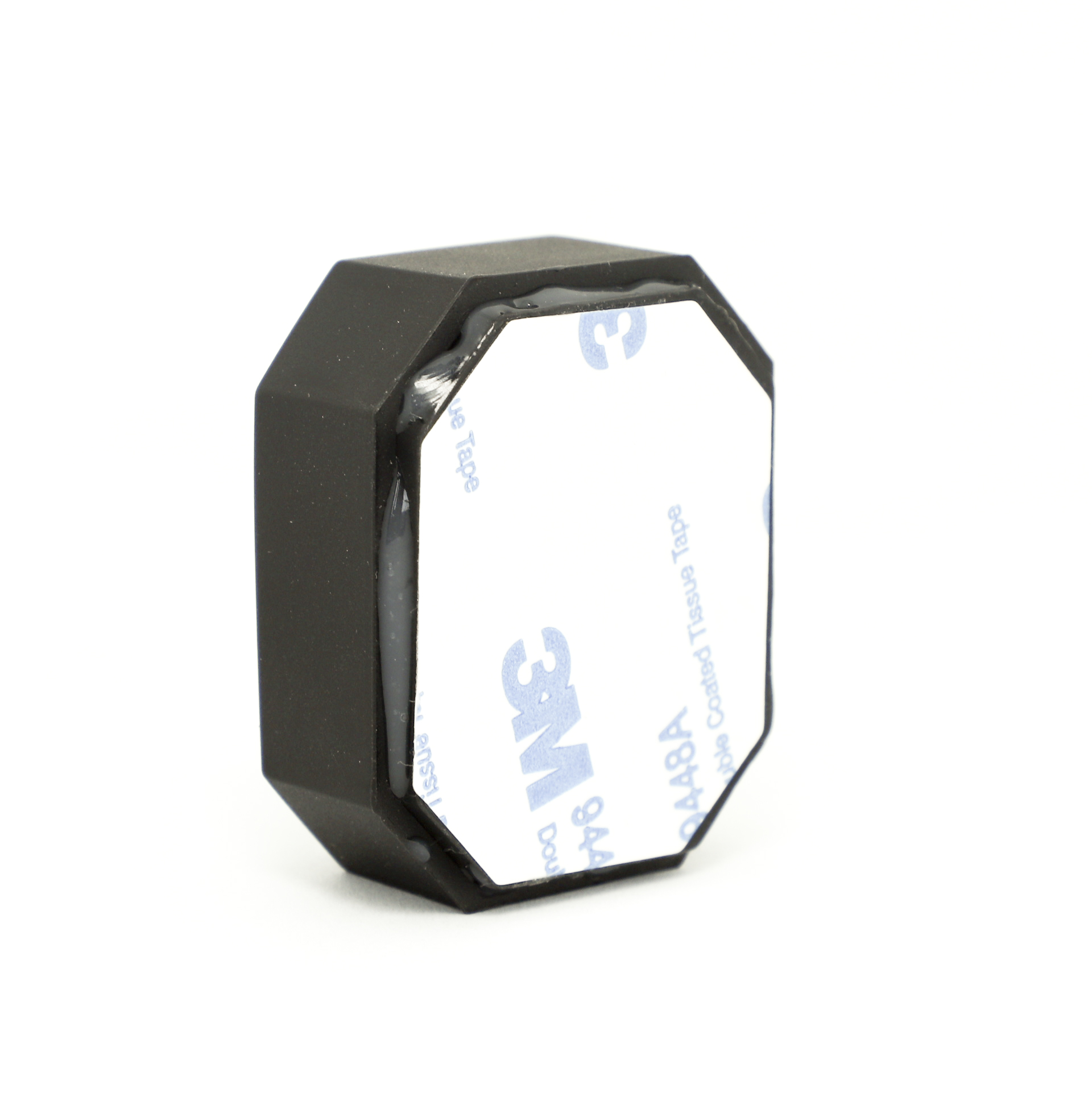

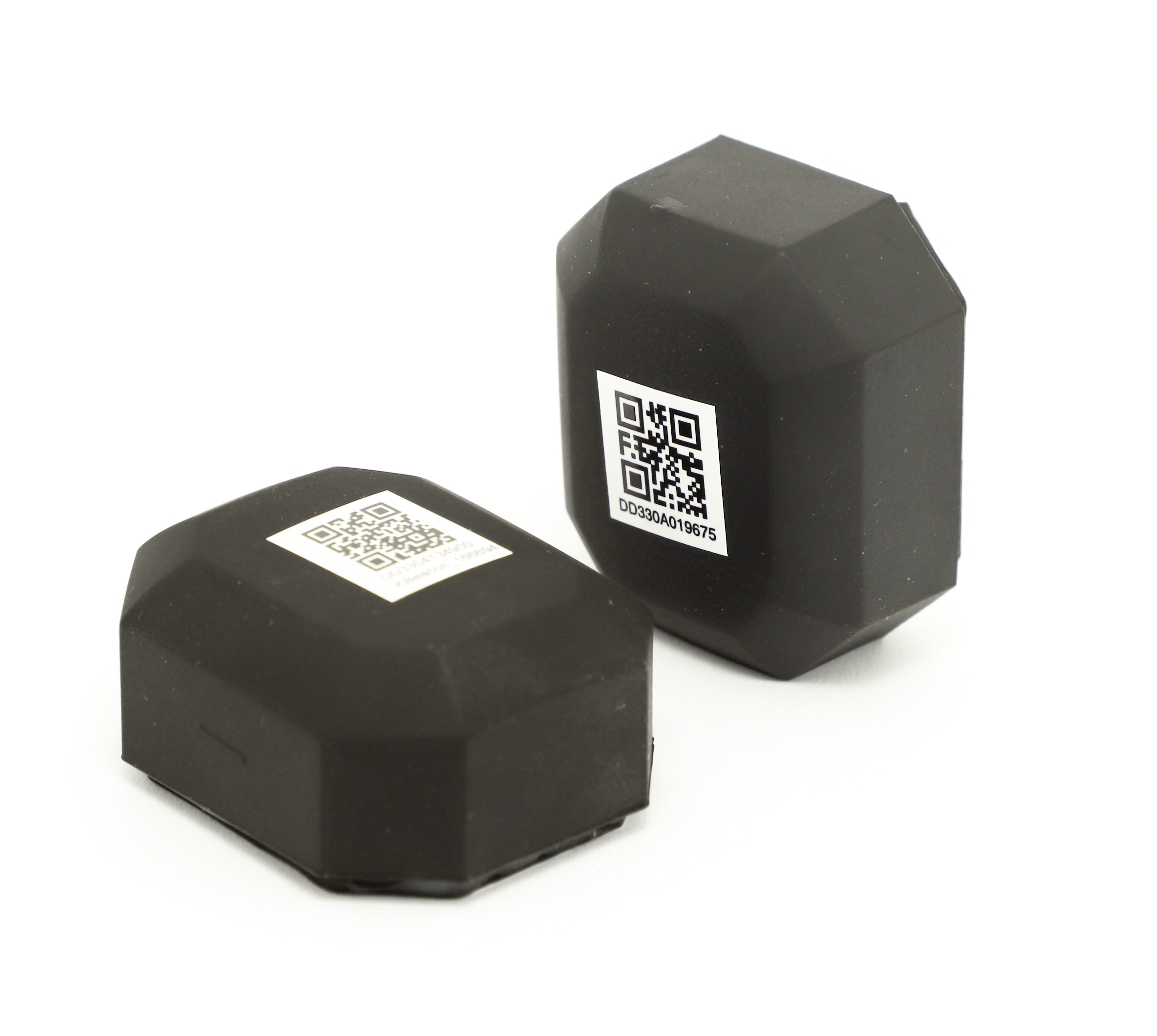

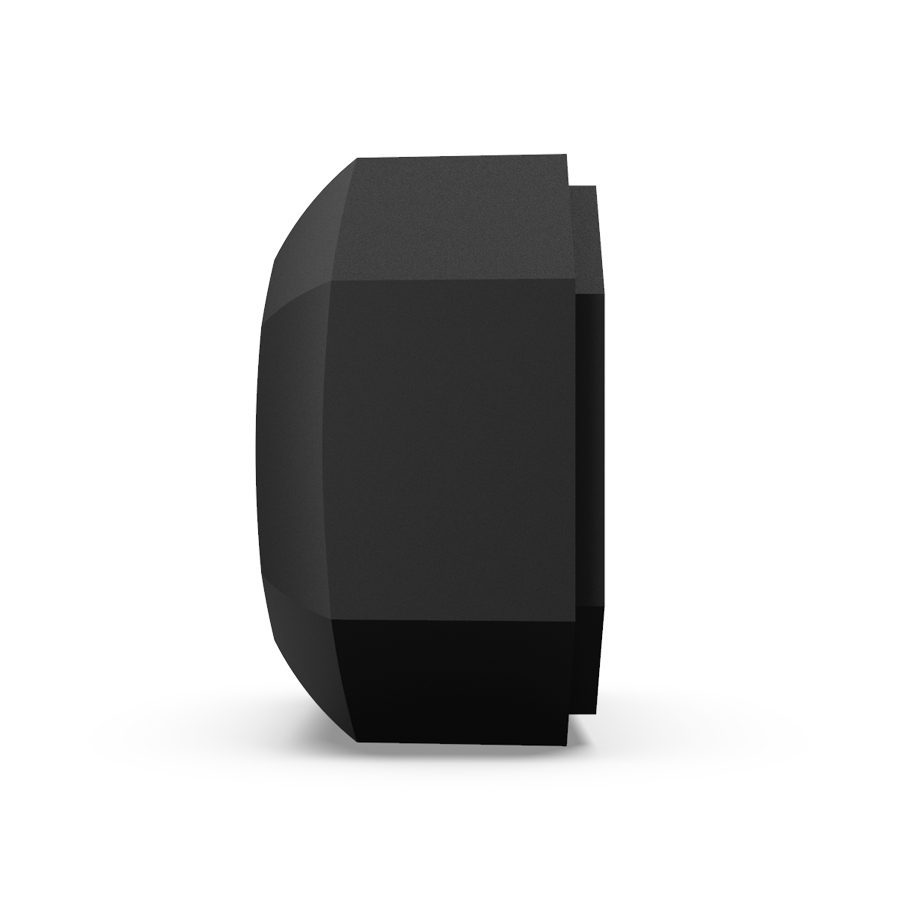

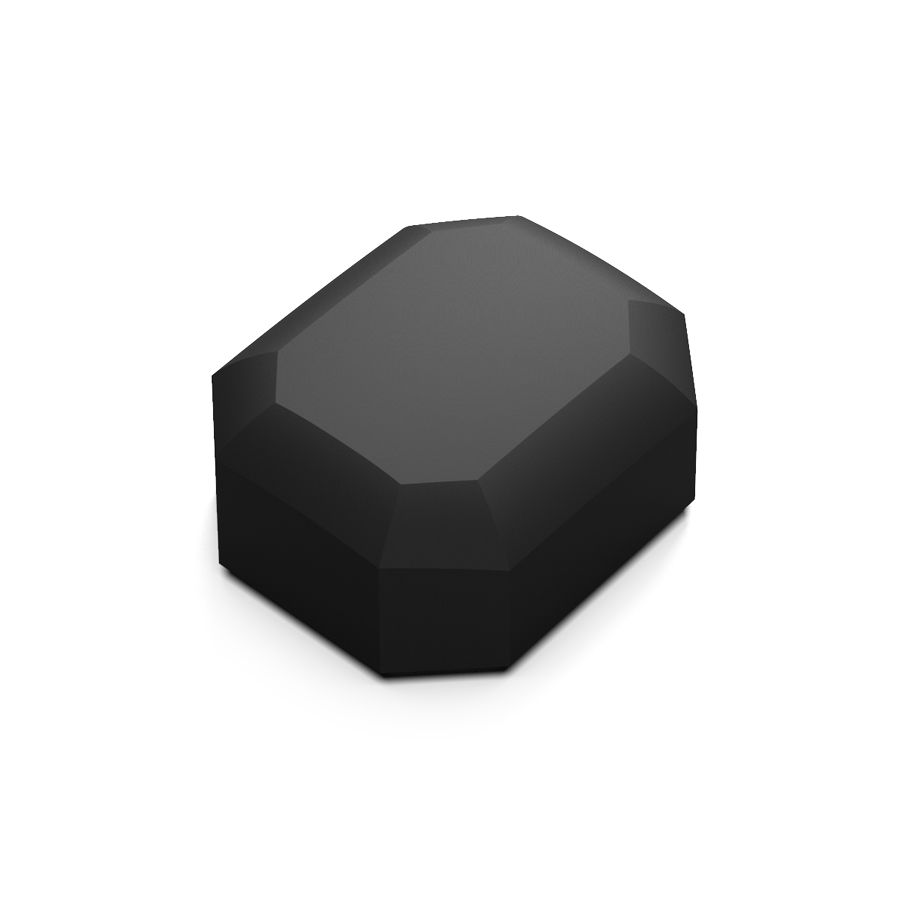

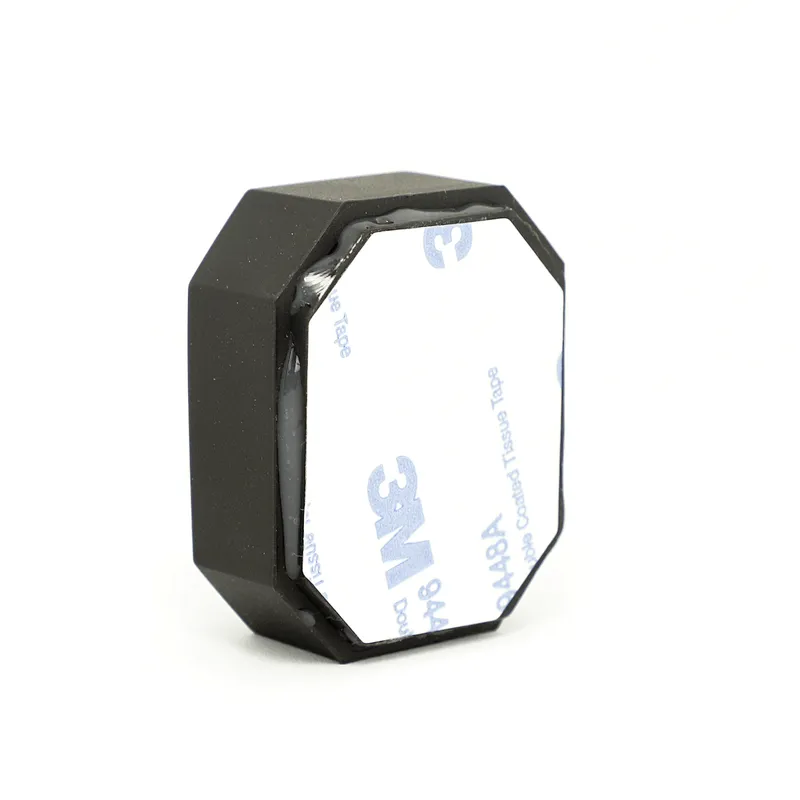

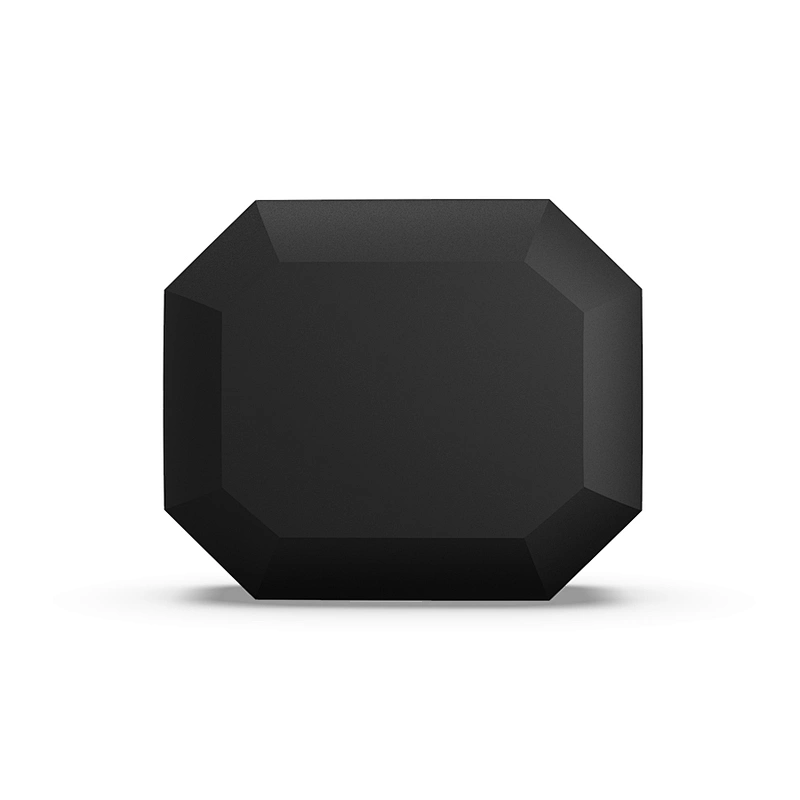

Details Images

Specification

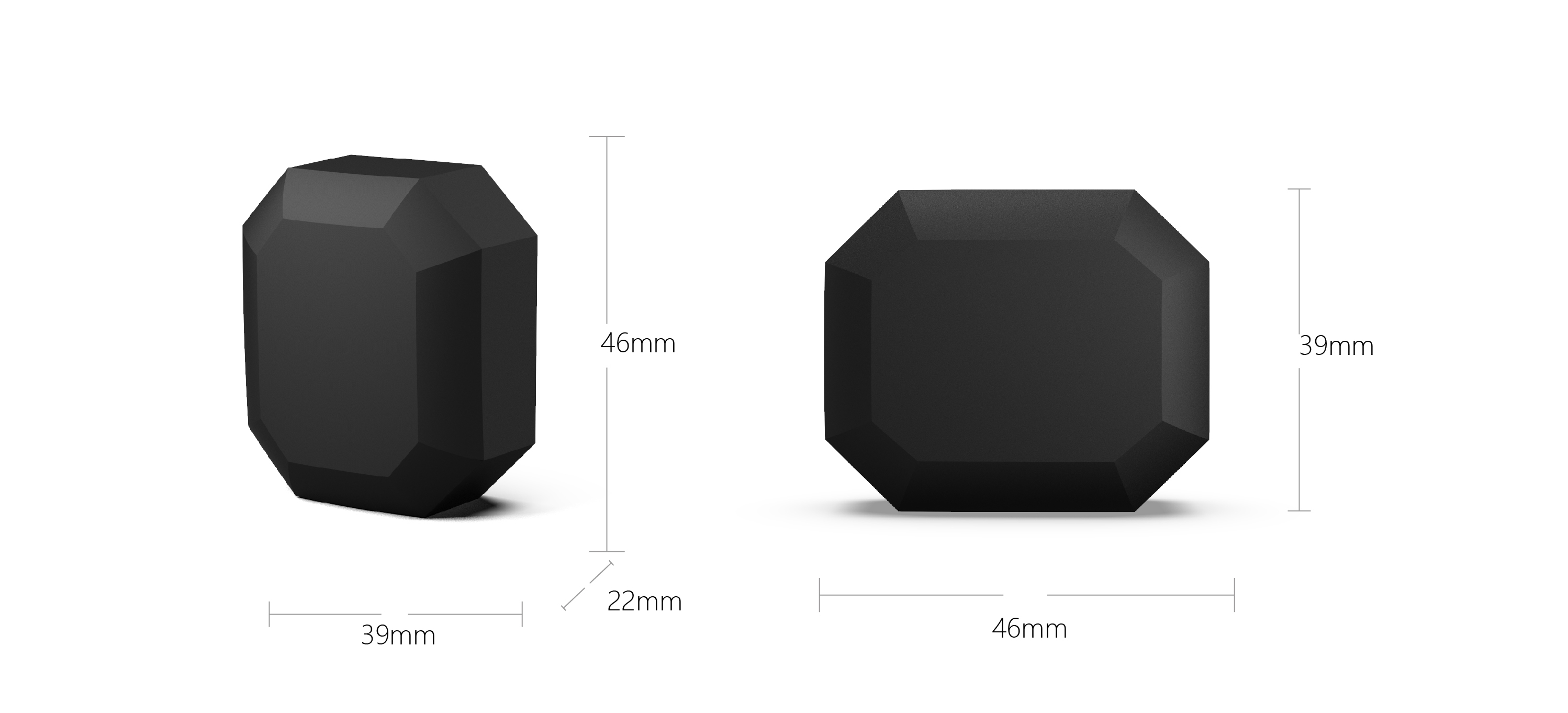

Size	46mm39mm22mm	BLE Version	BLE5.0
Material	Silicone	Protocol	iBeacon/Eddystone/Ksensor
Weight	37g (with battery)	OTA	YES
Battery	CR2477 (non-replaceable)	Button	1 Button
Battery Life	4 years (Base on Broadcast Interval 1s and TX power 0dBm)	Sensor	Accelerometer sensor
Waterproof	IP67	Working Temperuature	-40°C ~+70°C
Chipset	nRF528 series	Storage Temperature	10°C ~+25°C, ≤65%RH

Product Usage

How it works
1. You can use smartphone App to connect to the K3 Beacon and read the data.

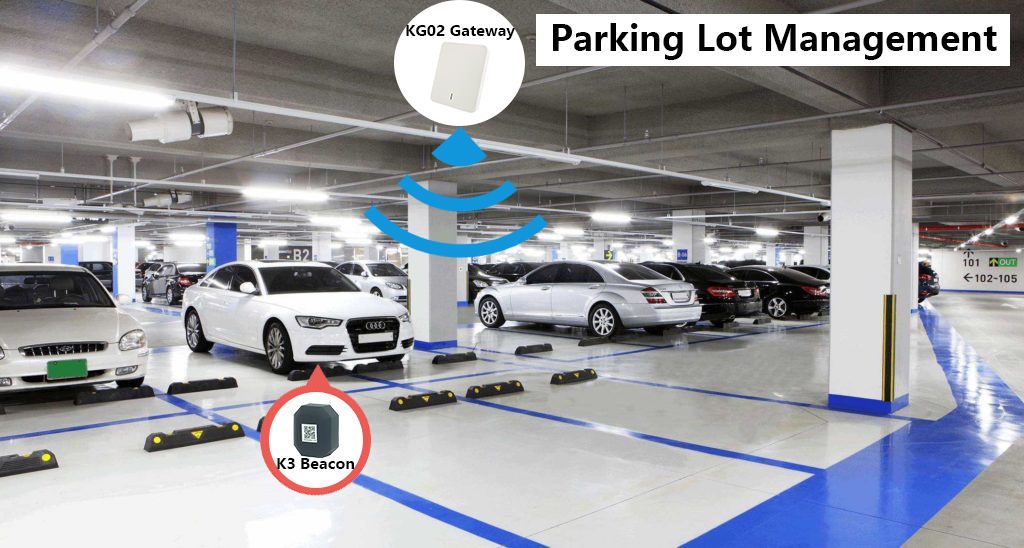

2. The K3 Beacon can also connect to KGateway KG01/ KG02 via Bluetooth. The KGateway can collect K3 Beacon data and upload to
cloud server via LTE/WIFI/Ethernet in real-time.

Application
