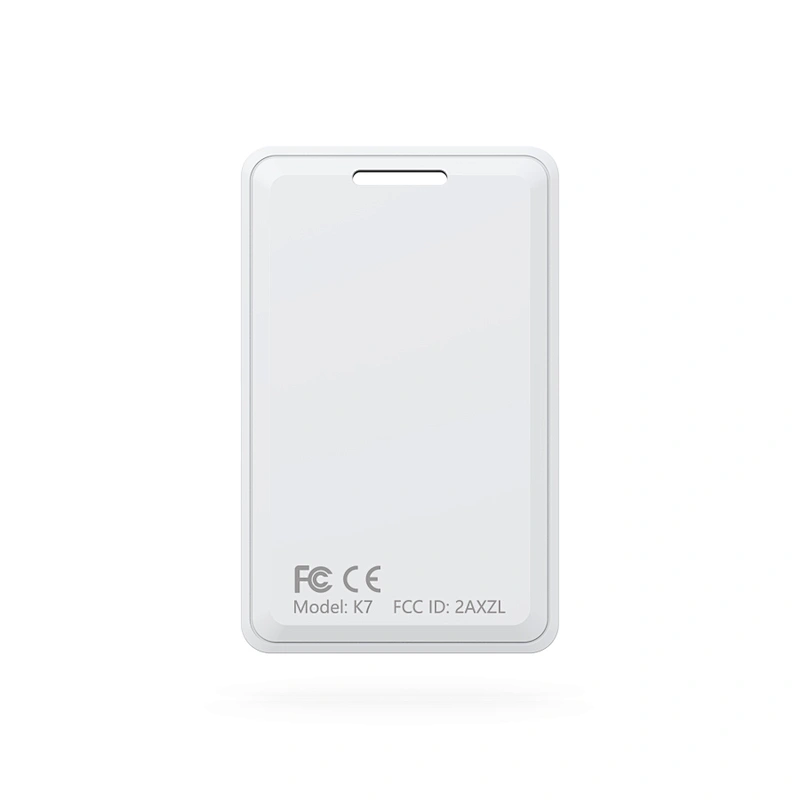

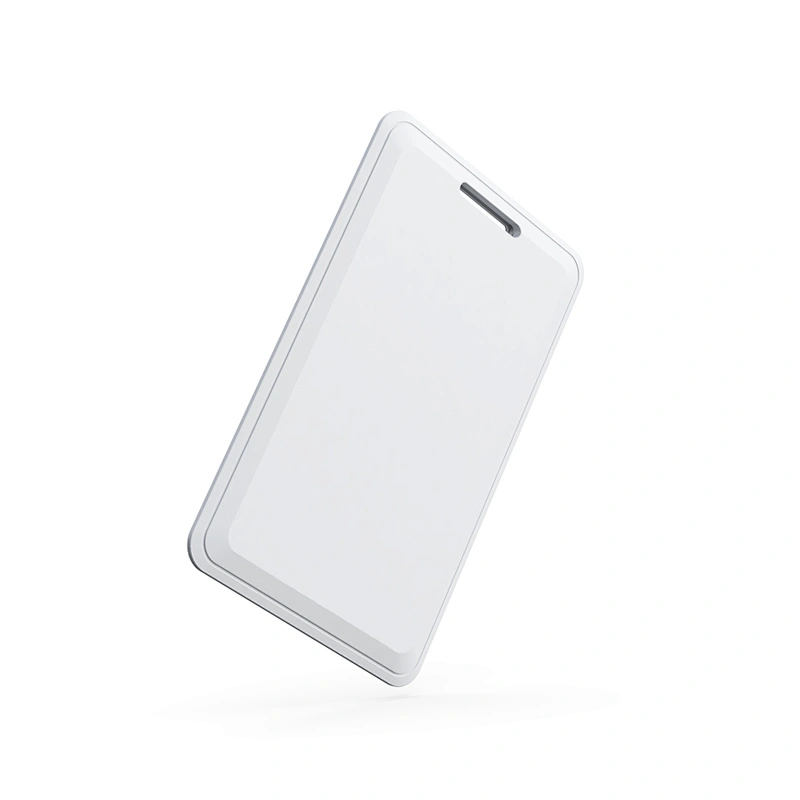

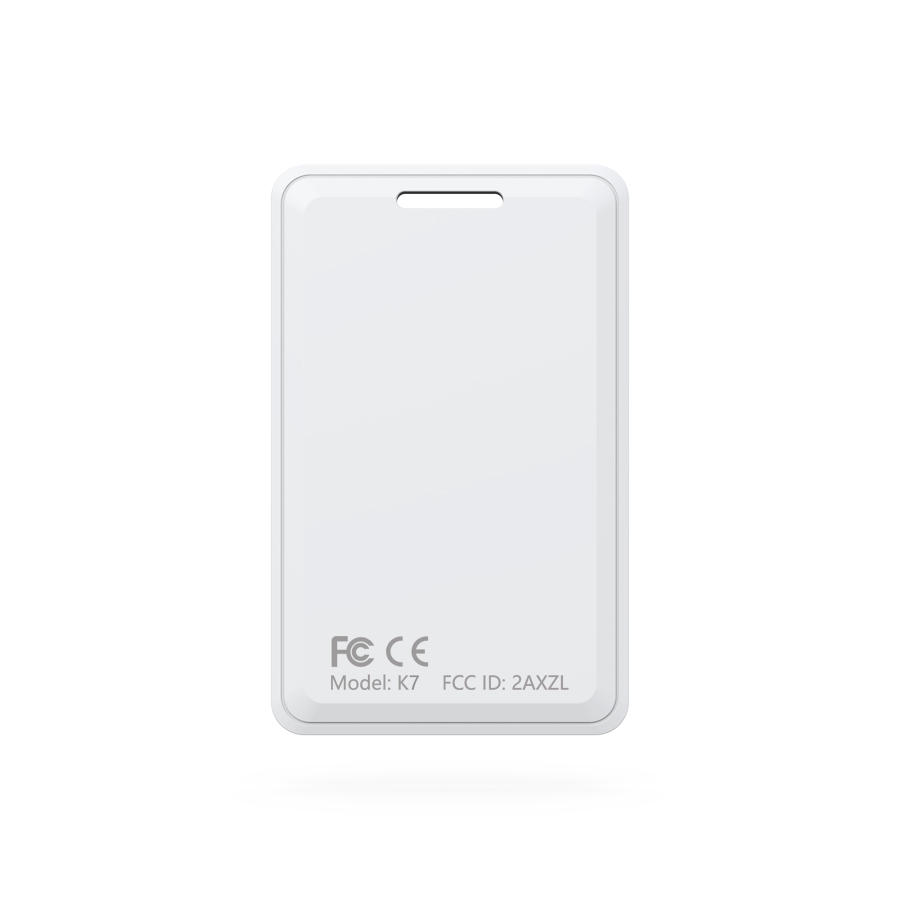

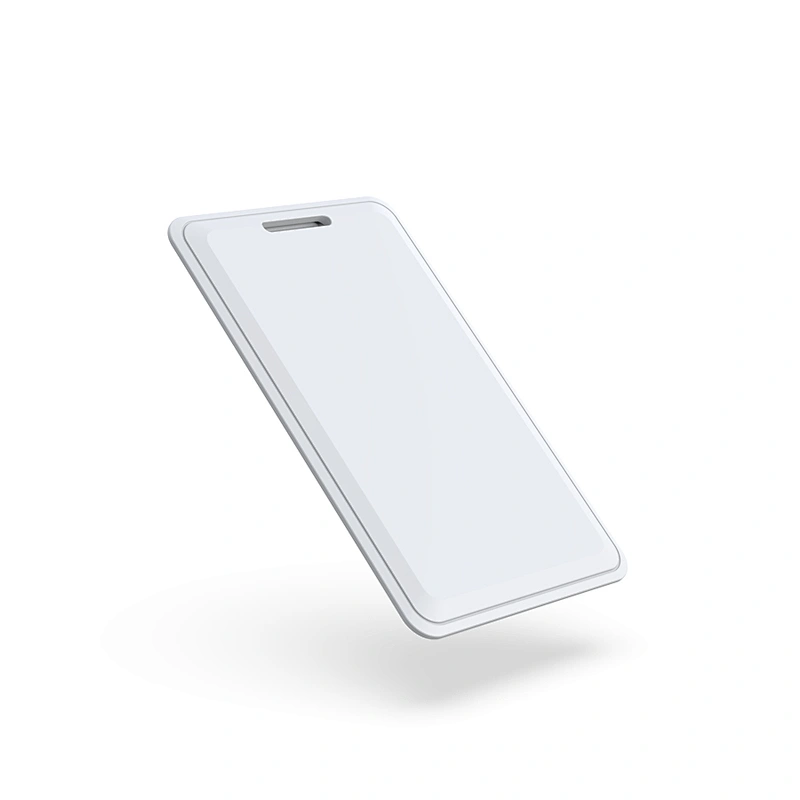

New arrival NFC bluetooth card badge beacon for personnel tracking

New arrival NFC bluetooth card badge beacon for personnel tracking

Model NO.: ibeacon K7
Price:: $ 10.00-10.00 / piece
Minimum order quantity: 1 piece
Country of Origin: shenzhen

Product Description

Network:SDK Avilable
Model Number:ibeacon K7
Type:Factory
Place of Origin:Guangdong, China
Brand Name:Kbeacon
Application:IOT
Product name:ibeacon eddystone K7
Compatibility:iOS 7.0+ and Android 4.3+ system
ibeacon Weight:20g
Battert lifetime:3.5 years
Real Working distance:BLE 4.0:100 meters
ibeacon chipset:NRF52810
Certification:CE FCC RoHS
ibeacon support:Mbps Mode

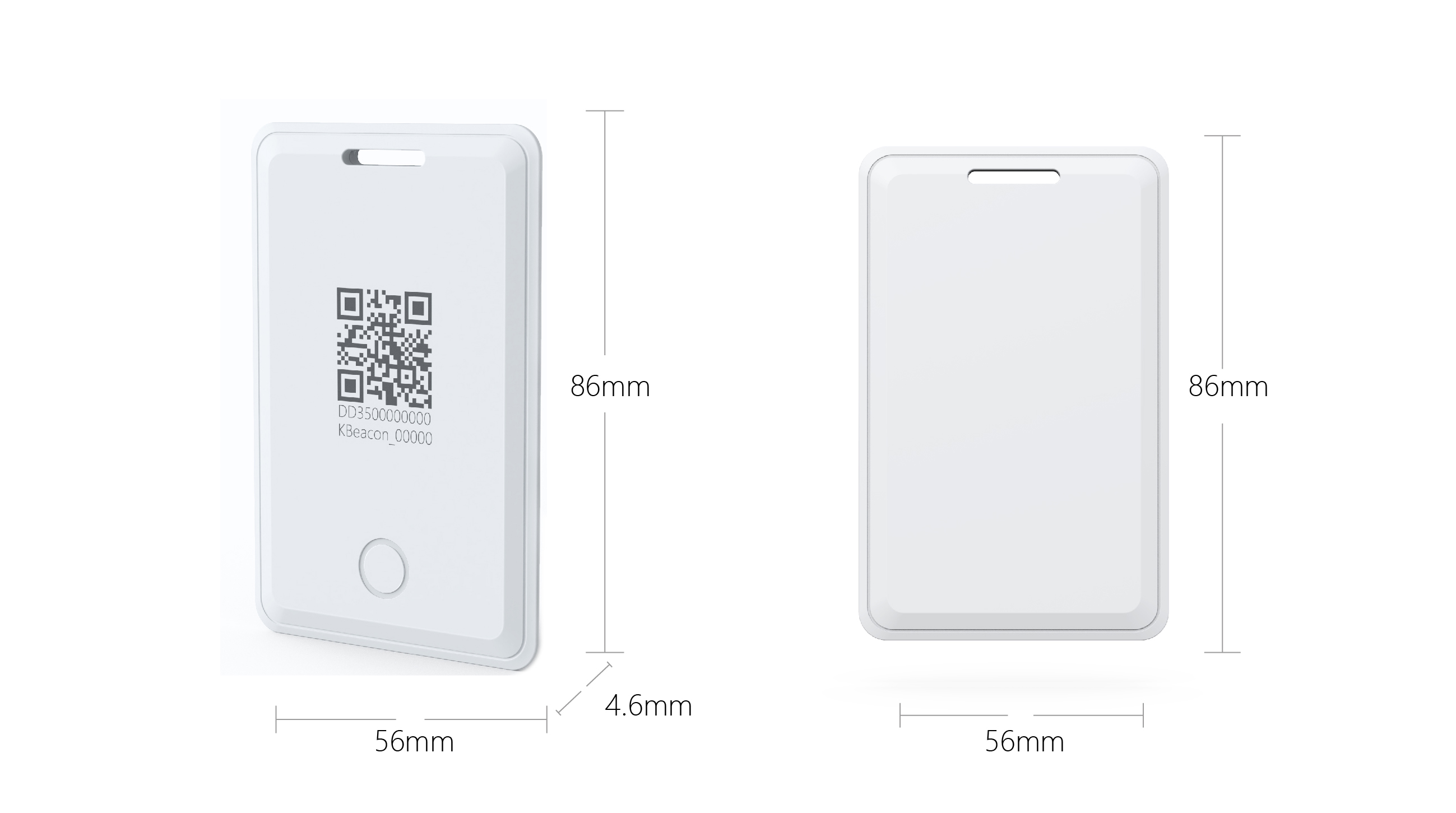

beacon size:86mm*56mm*4.6mm
Waterproof level:IP67

Product Description

New arrival NFC bluetooth card badge beacon for personnel tracking

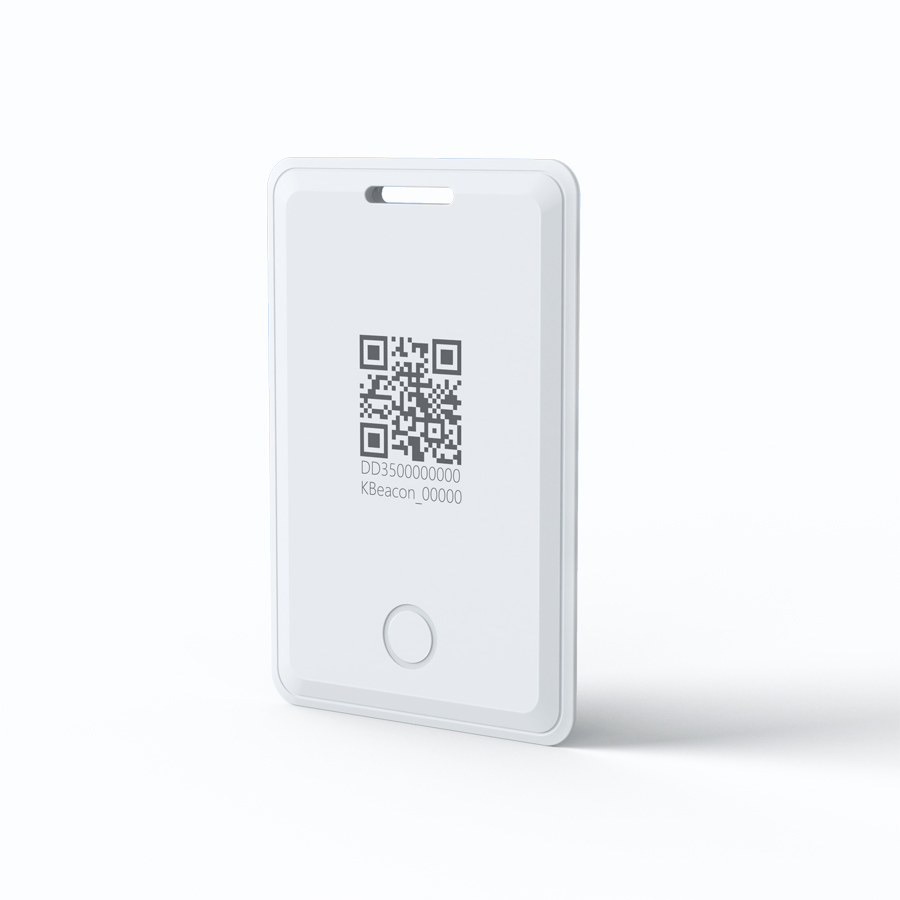

K7 Card Beacon

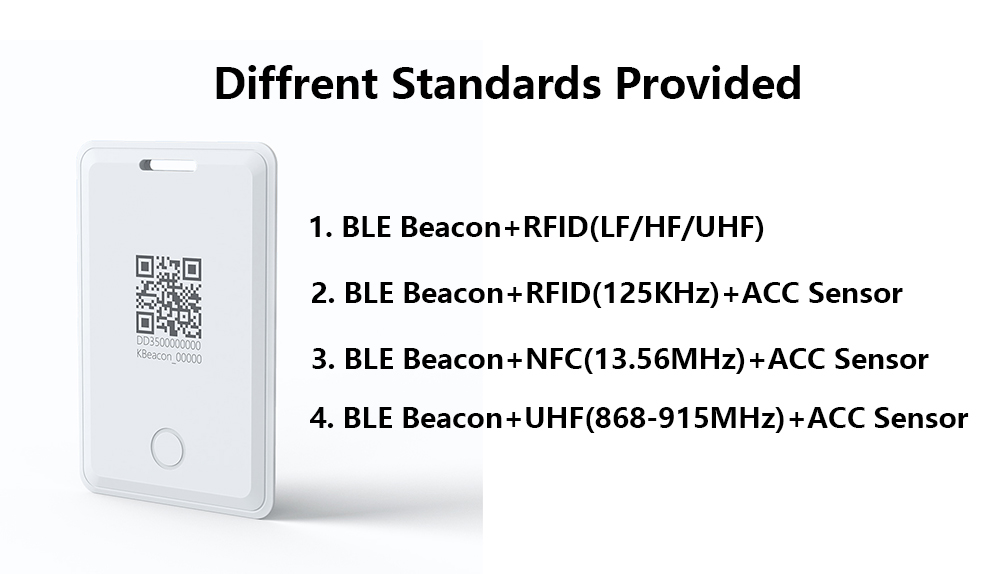

●NFC/RFID optional

●Support SOS button

●Accelerometer sensor
●Chip: Nordic nRF52 series

●850mAH capacity, 4 years battery life

●Bluetooth range: 100 meters

● CE/FCC certified

●IP67 waterproof

●Support iBeacon/Eddystone/KSensor

K7 Card Beacon

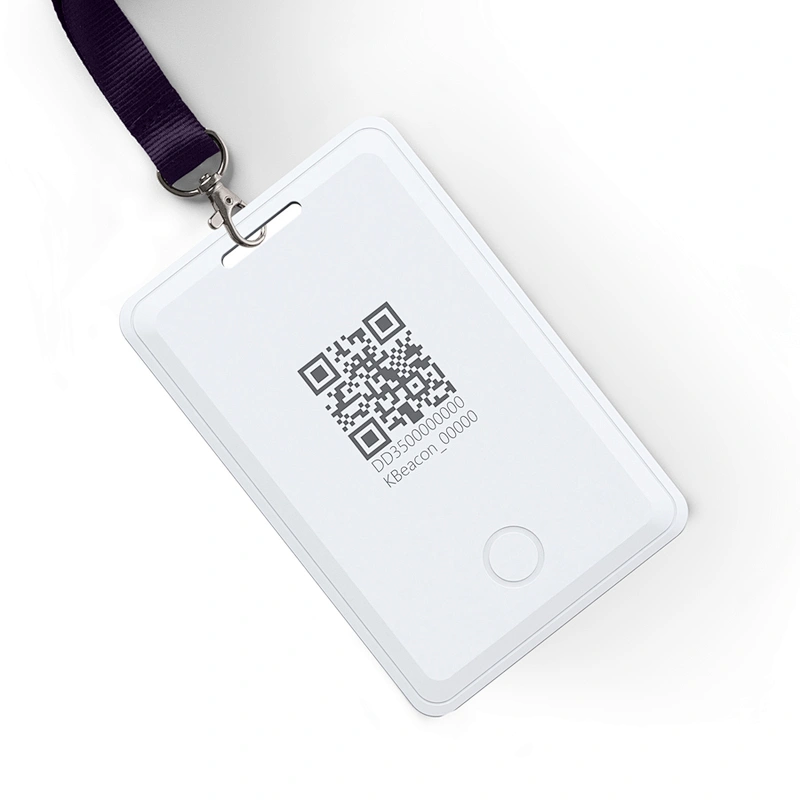

●K7 is a IP67 waterproof portable Beacon with ultra low power consumption , it has strong signal, designed for personnel
management, patients tracking and indoor location solutions.

●K7 supports a variety of NFC/RFID standards, can be used in door access, payment and etc.
●K7 has a push button and LED light, supports button trigger, can be used as SOS button.
●Device Name, TX Power, Advertisement period, UUID, Major ID, Minor ID can be configured with KBeacon APP.
●The Mac address, MajorID and MinorID is unique in each beacon.

●We can also customize or configure the parameter you need.

Details Images

Size	86mm56mm4.6mm	BLE Version	BLE5.0
Material	ABS	Protocol	iBeacon/Eddystone/Ksensor
Weight	20g (with battery)	OTA	YES
Battery	Li-polymer battery (non-replaceable)	Button	1 button
Battery Life	4 years (Base on Broadcast Interval 1s and TX power 0dBm)	Sensor	Acceleration sensor
Certification	CE/FCC	Working Temperuature	-40°C ~+70°C
Chipset	nRF52 series	Storage Temperature	10°C ~+25°C, ≤65%RH

Product Usage

How it works

1, You can use smartphone App to connect to the K7 Beacon and read the data. We can provide the SDK and library for you to develop your own App and do integration.

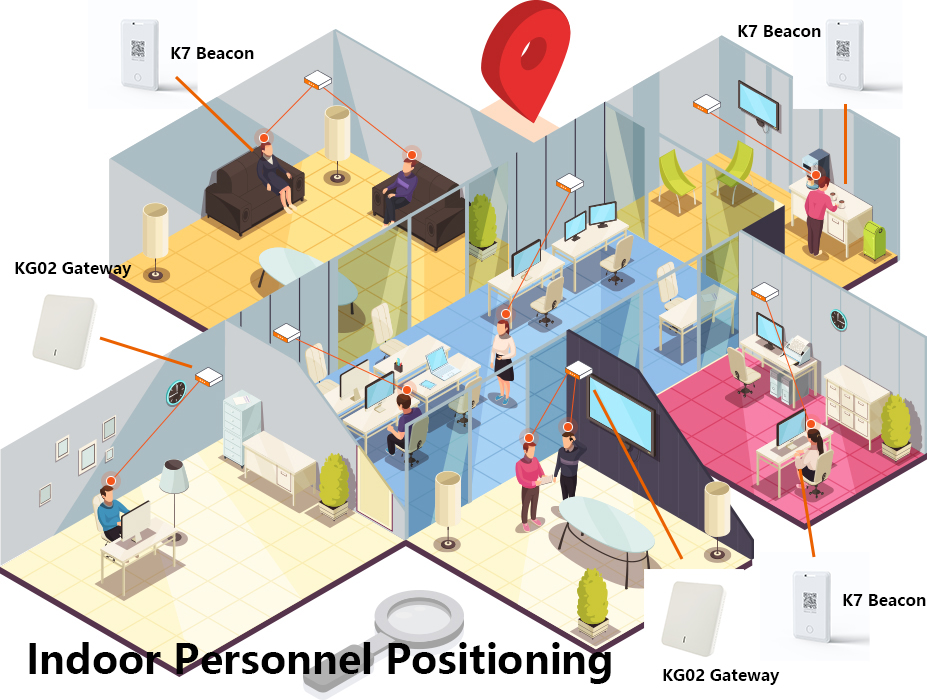

2,The K7 Beacon can also connect to KGateway KG01/ KG02 via Bluetooth. The KGateway can collect K11 Beacon data and upload to cloud server via LTE/WIFI/Ethernet in real-time. KKM will provide you the KGateway API to do integration to your system.

Application

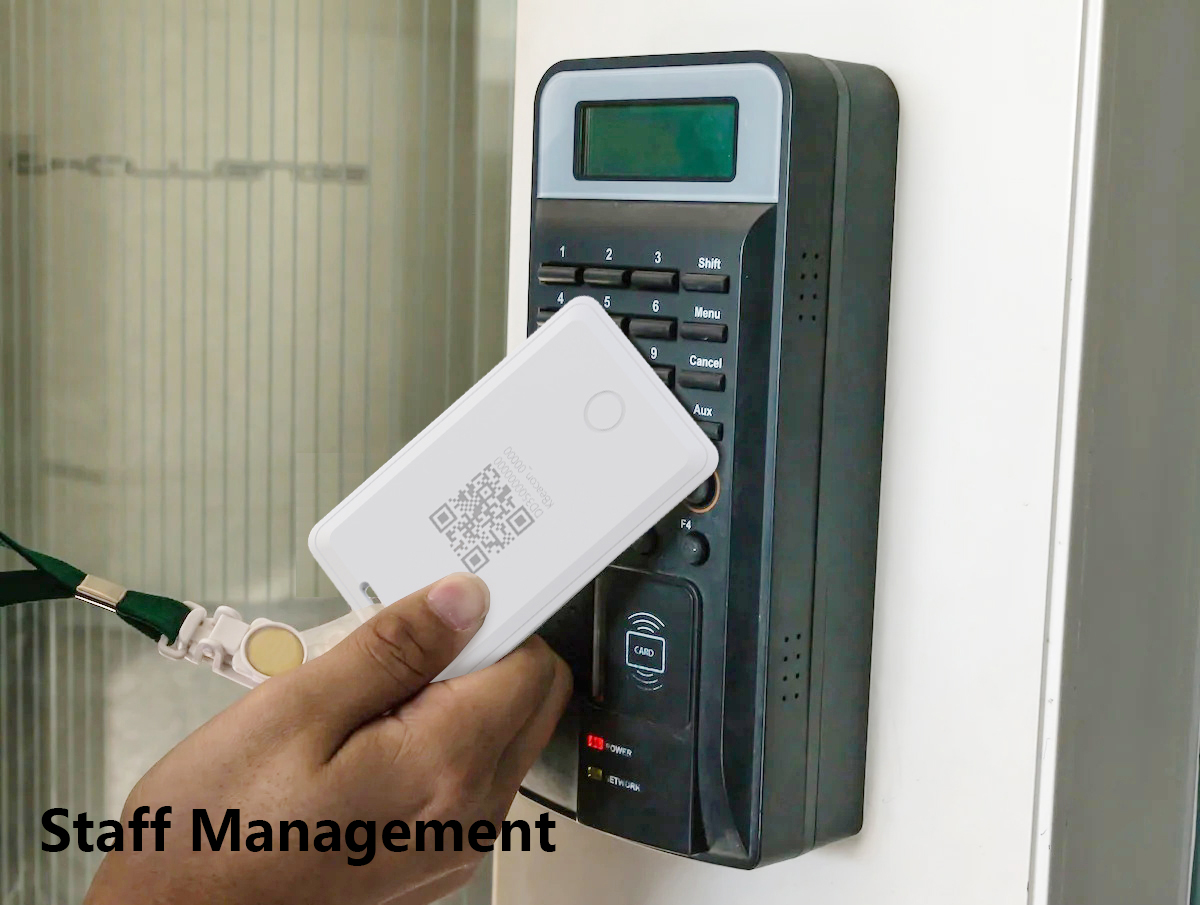

--Employee management

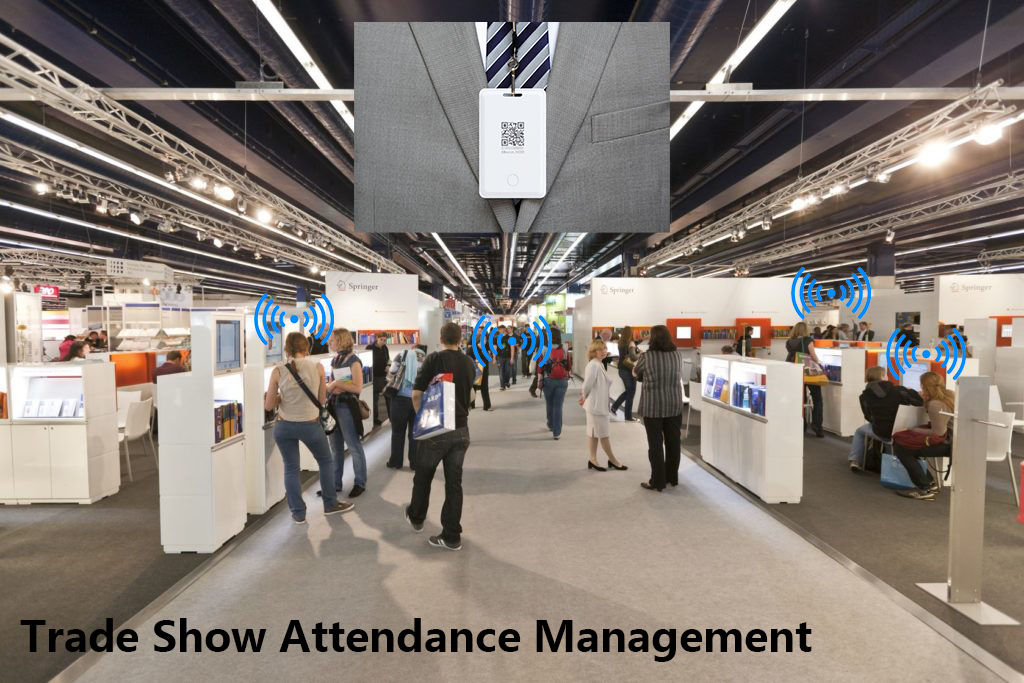

--Trade show attendance management

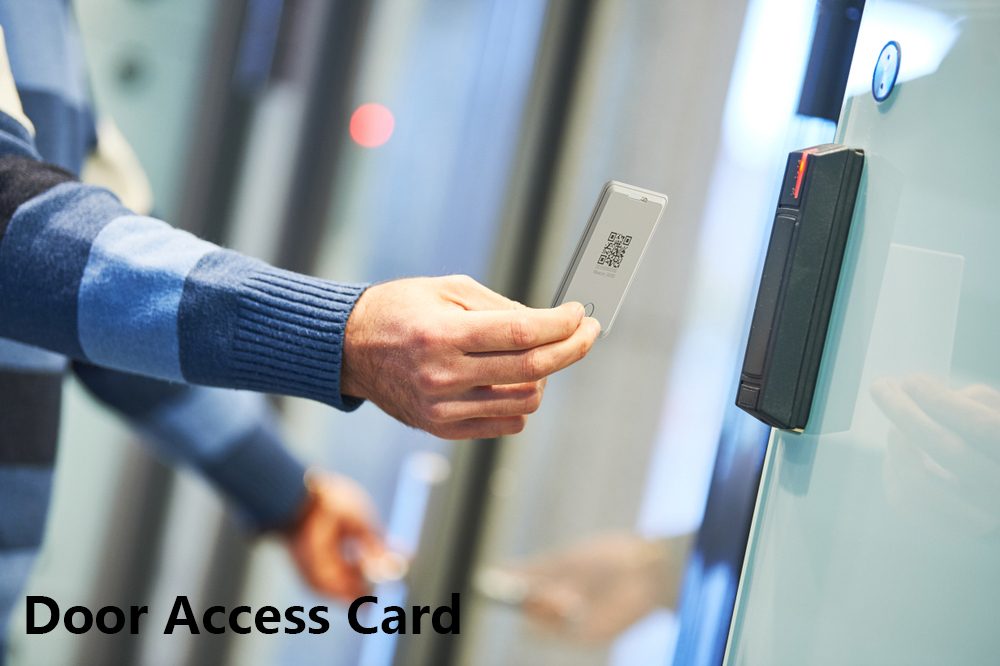

--Door access
--And more
