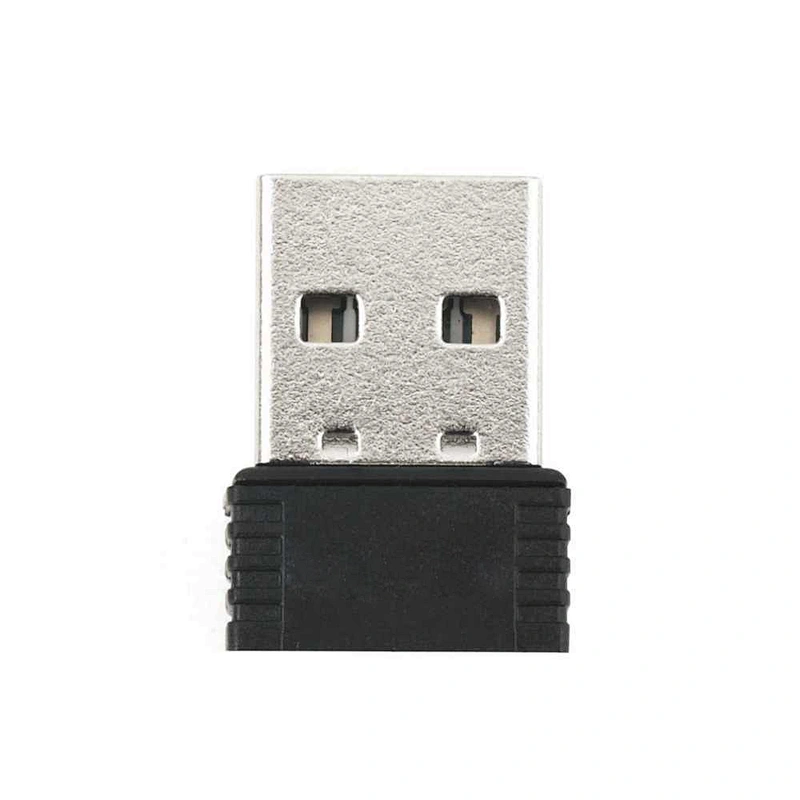

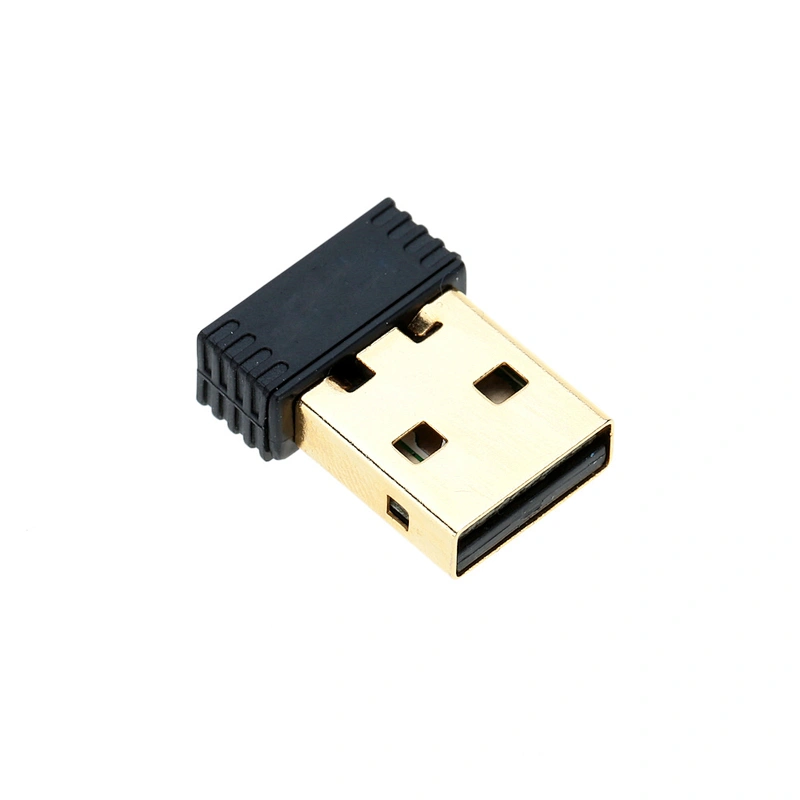

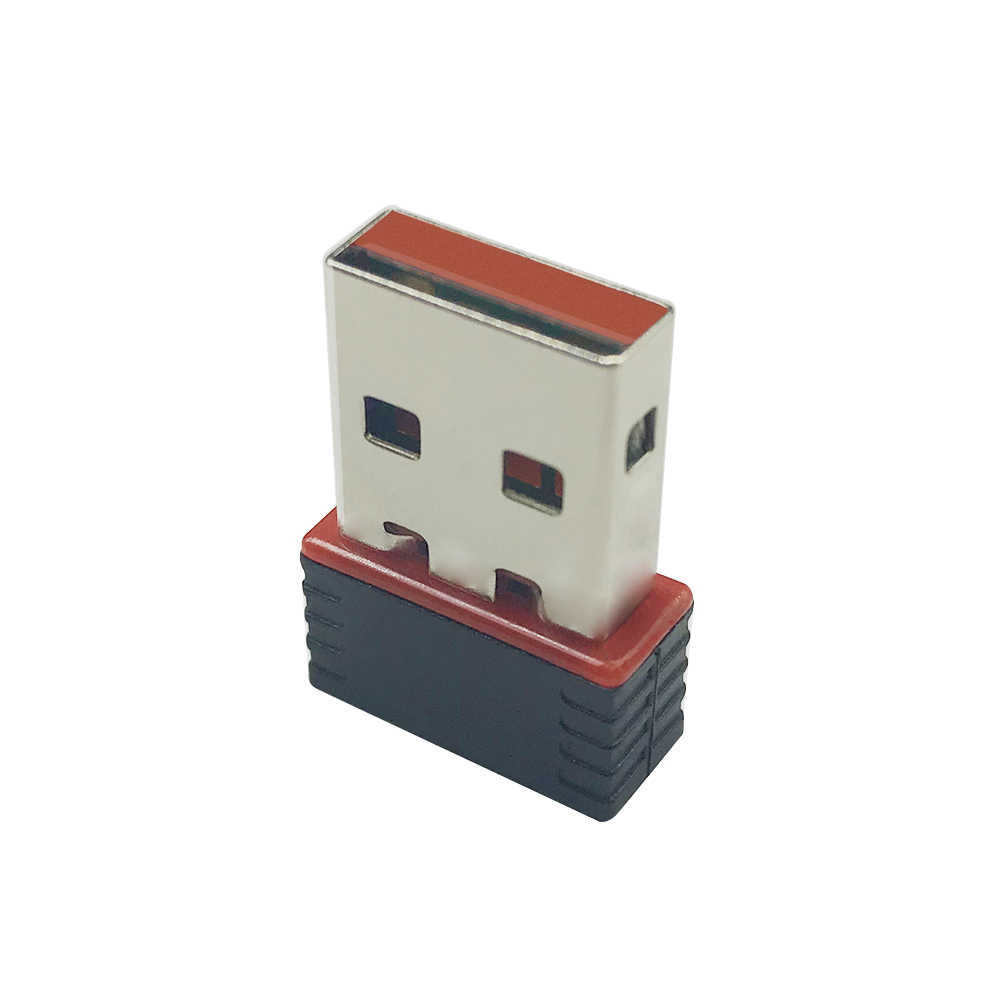

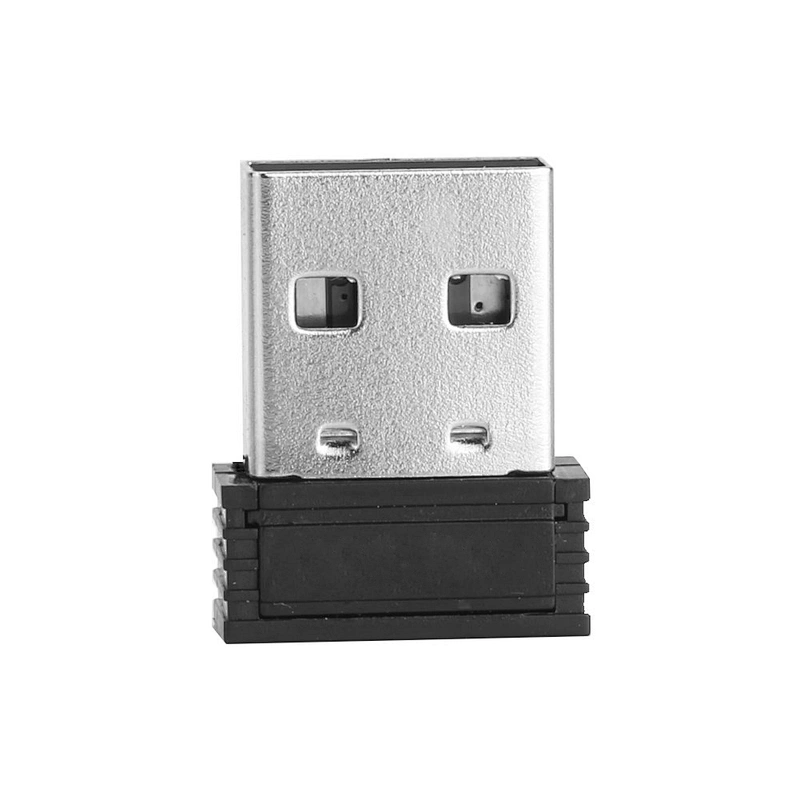

Ble Beacon Receiver USB Type

Model NO.: ibeacon U1
Price:: $ 3.05-3.85 / piece
Minimum order quantity: 1 piece
Country of Origin: shenzhen

Product Description

Model Number:ibeacon U1
Place of Origin:Guangdong, China
Brand Name:Kbeacon
Chipset:NRF52xxx
Supplier Type:Factory
Application:IOT
Product name:USB Beacon U1
Compatibility:iOS 7.0+ and Android 4.3+ system

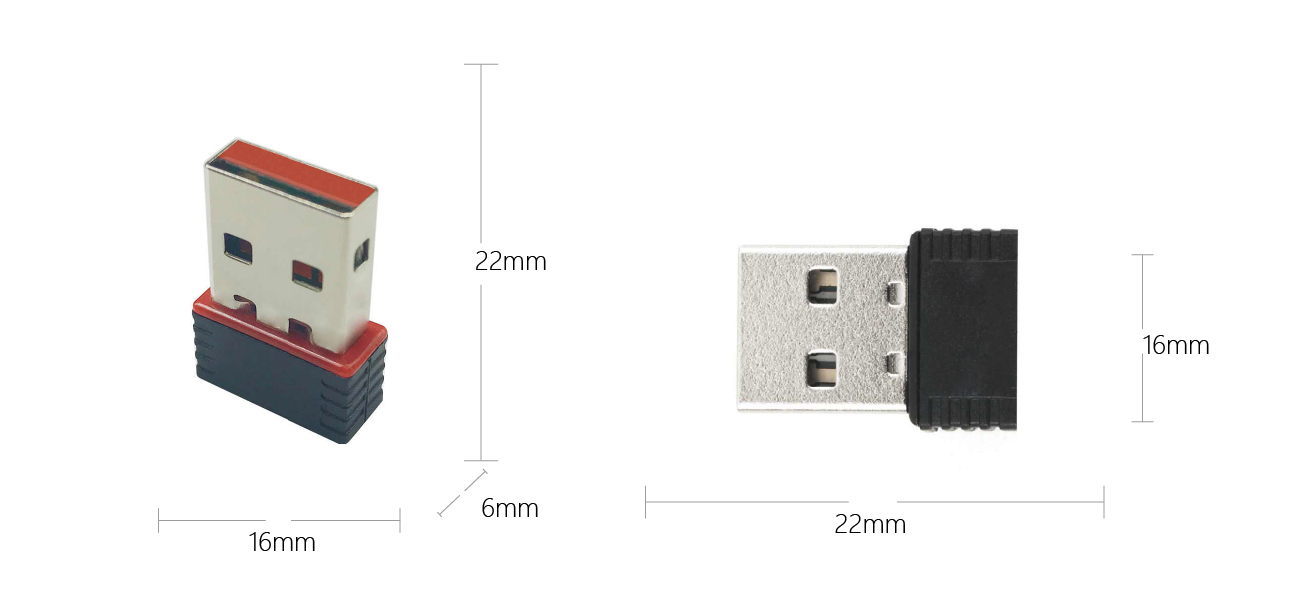

ibeacon Size:22mm*16mm*6mm
ibeacon Weight:1.5g
BLE verison:BLE 5.0
Charge way:USB powered 5V
Transmit range:100 meters
ibeacon chipset:NRF528xx
Certification:CE FCC RoHS
ibeacon support:Mbps Mode

Product Description

Ble Beacon Receiver USB Type

U1 USB beacon

●Ultra-mini size
● USB powered 5V DC
● Plug and play
● No battery maintenance needed

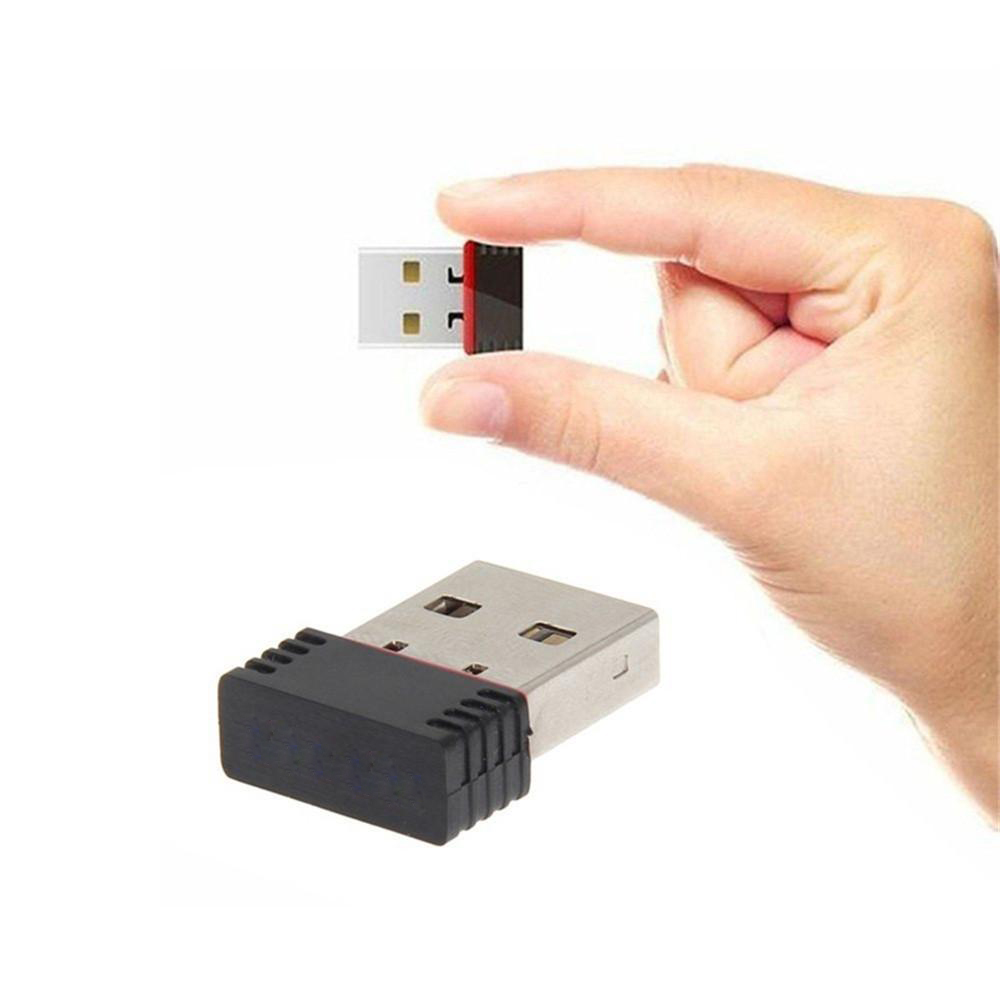

●Smallest size, 22*16*6mm, each to carry.
● Chipset: Ultra-low power consumption nRF52 series
● Bluetooth range: 60m
● CE/FCC certified

U1 USB Beacon

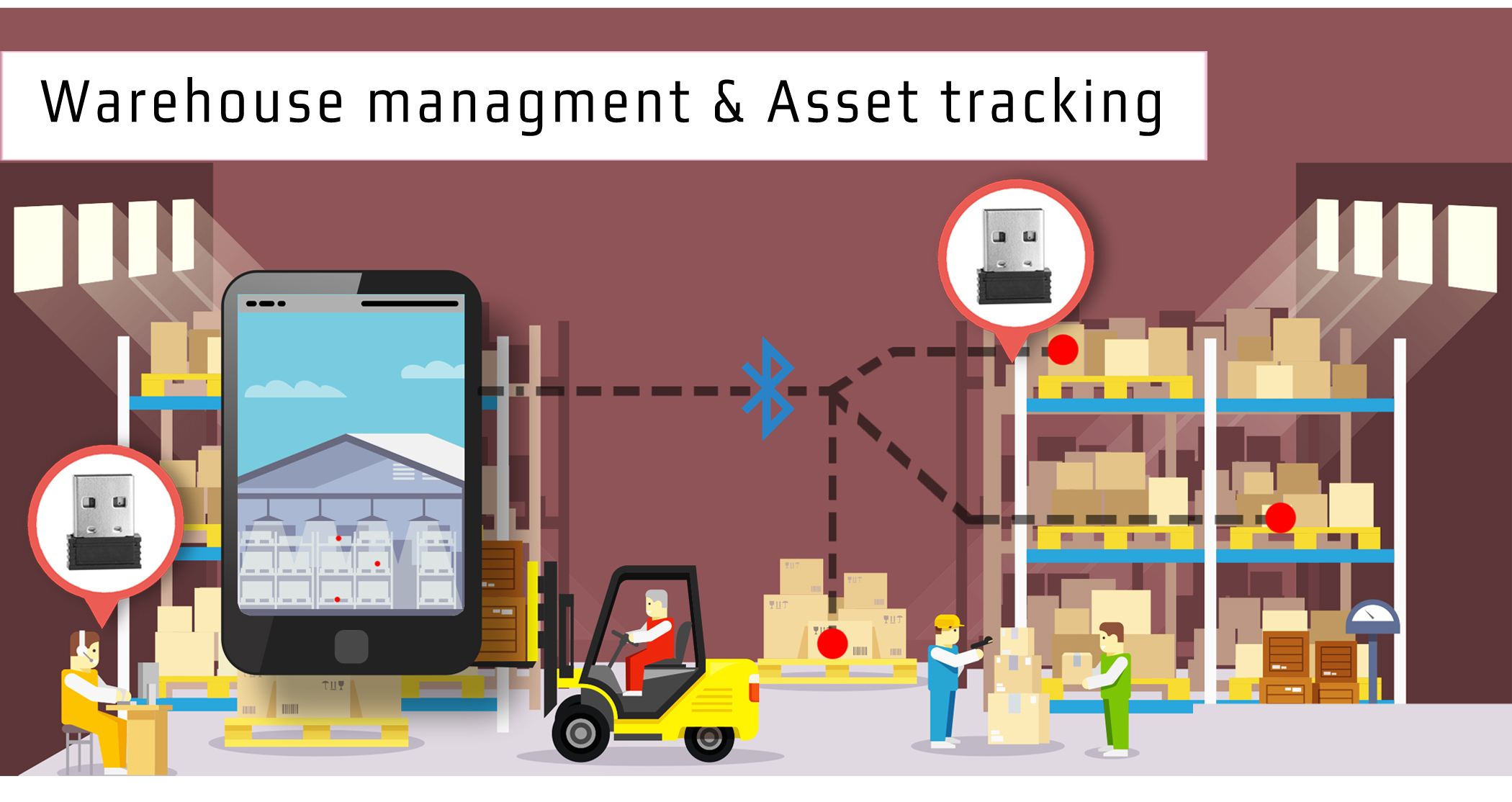

● U1 has ultra-small size, it can be used for proximity marketing, asset tracking, etc.

● U1 is a BLE5.0 Beacon, with ultra-low power consumption. U1 uses USB 5V power supply. It cuts down the maintenance cost for replace battery.

● Support iBeacon/Eddystone(UID,URL,TLM) at the same time

● You can use 'KBeacon' App to configure the Beacon parameters, such as Device Name, TX Power, Adv Period, UUID, Major, Minor etc. We can also provide SDK or Library for your development and integration.

● The MAC address, Major and Minor is unique in each Beacon, we can also customize or configure the parameters as you need.

Details Images

Size	22mm16mm6mm	BLE Version	BLE5.0
Material	ABS	Protocol	iBeacon/Eddystone
Weight	1.5g (without battery)	OTA	YES
Battery	USB 5V DC	Button	NA
Battery Life	Plug & play	Sensor	NA
Sound Volume	NA	Working Temperuature	-40°C ~+70°C
Chipset	nRF52 series	Storage Temperature	10°C ~+25°C, ≤65%RH

Product Usage

How it works

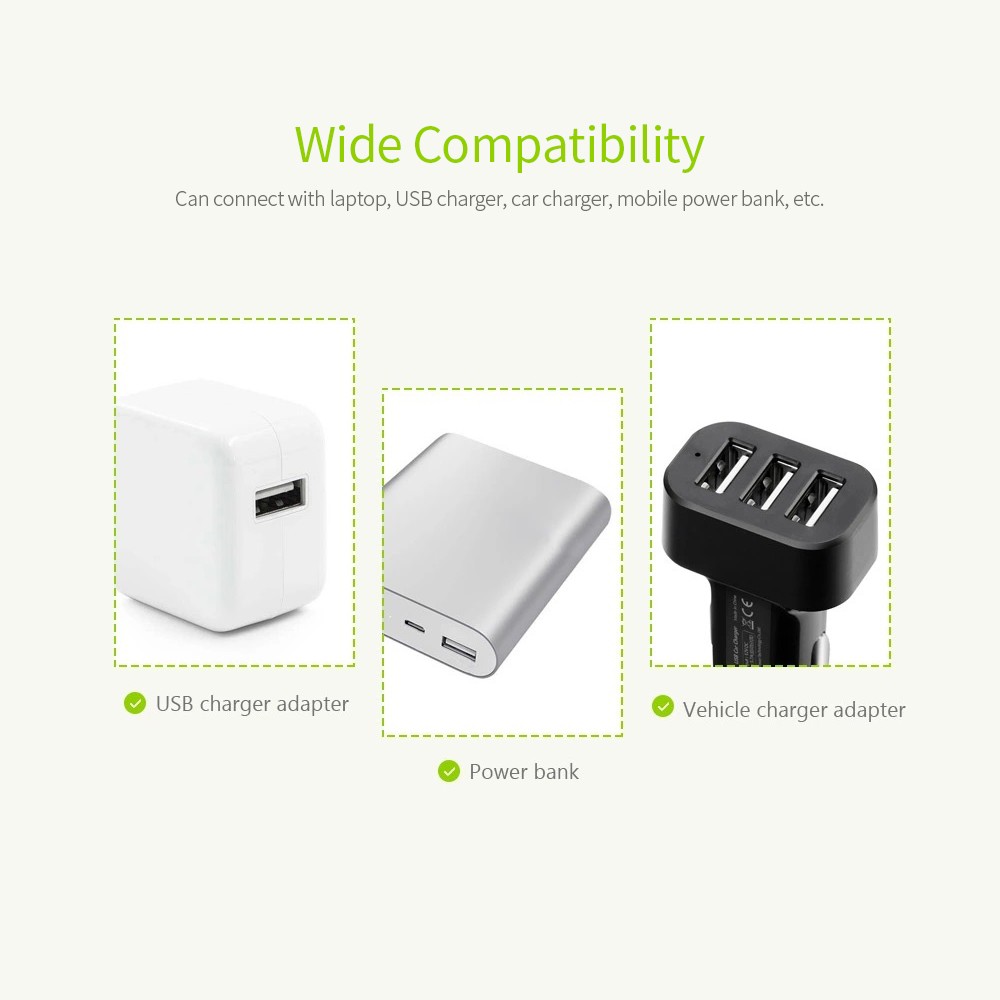

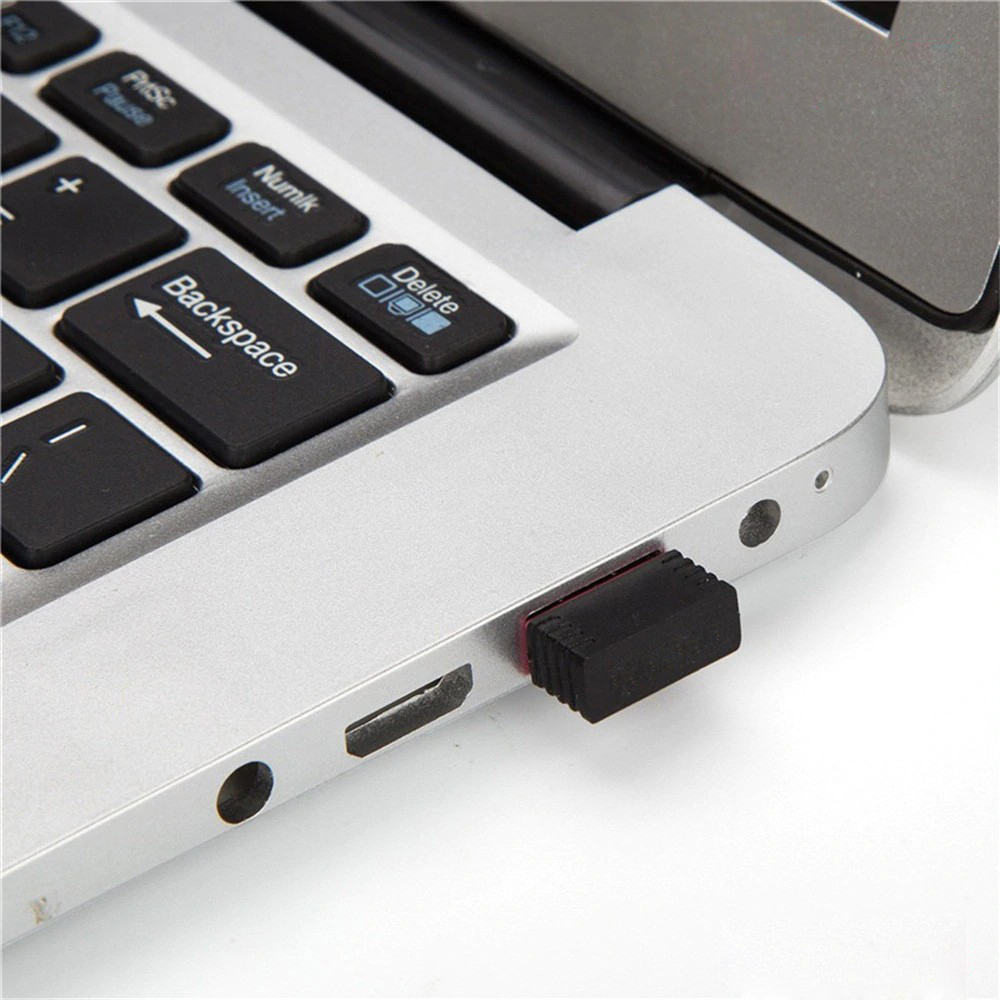

1, Plug and Play, you can easily plug to the computer/laptop USB port, USB power adapter or even power bank.

2. You can use smartphone App to connect to the U1 Beacon and read the data. We can provide the SDK and library for you to develop your own App and do integration.

3,The U1 Beacon can also connect to KGateway KG01/ KG02 via Bluetooth. The KGateway can collect U1 Beacon data and upload to cloud server via LTE/WIFI/Ethernet in real-time. KKM wil provide you the KGateway API to do integration to your system.
