Bluetooth ID Card iBeacon Tag BLE Beacon Waterproof Beacon Programable

Bluetooth ID Card iBeacon Tag BLE Beacon Waterproof Beacon Programable

Model NO.: K7
Price:: $ 2.80-7.00 / piece
Minimum order quantity: 1 piece
Country of Origin: Shenzhen

Product Description

Model Number:K7
Place of Origin:China
Brand Name:OEM
Chipset:nRF52 Series, Nordic nRF52 Series
Supplier Type:Manufacturer
Application:Industry
APP Name:KBeacon
Size:86mm*56mm*4.6mm
Battery Life:4 Years
Weigth:20g (with battery)
Certificate:FCC/CE
Waterproof:IP67
BLE Version:5.0
Sensor:Accelerometer (Optional)

Product Description

Bluetooth Card Beacon nRF52832 Chip Employee Staff Location iBeacon Eddystone Beacon Push Button

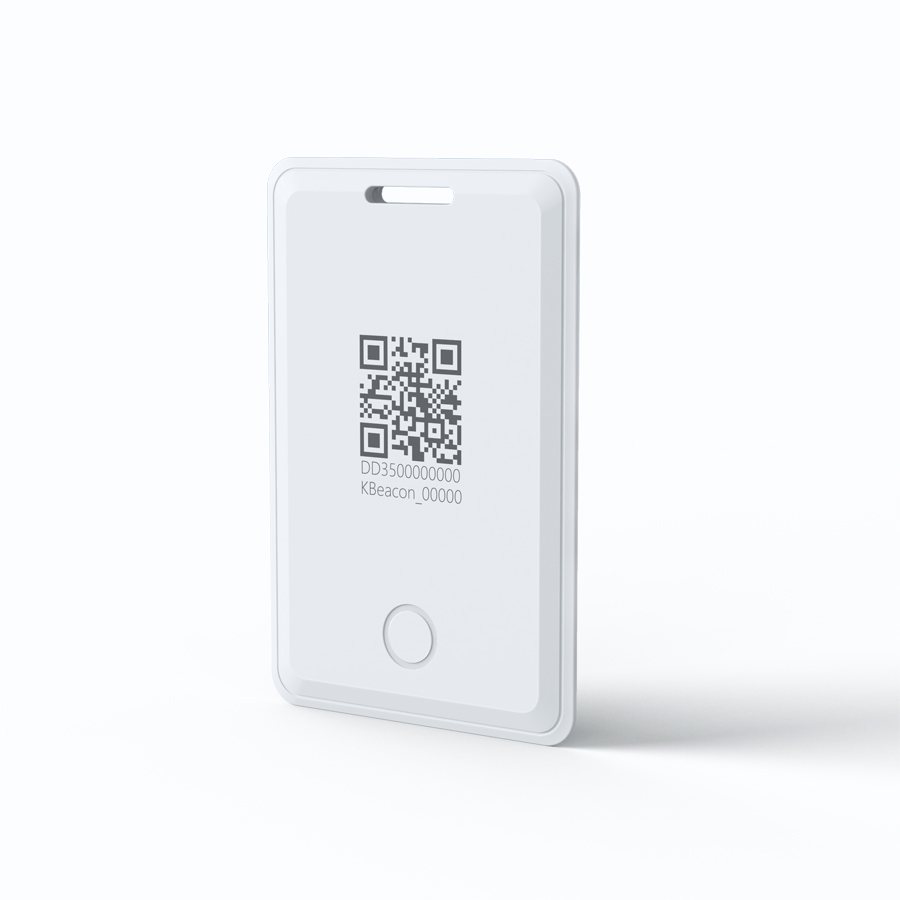

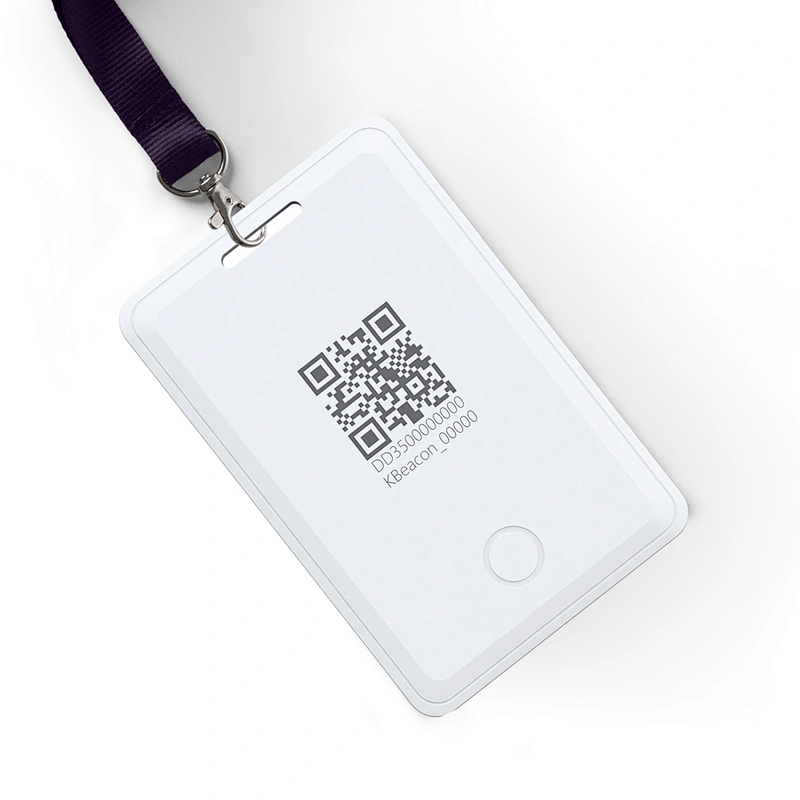

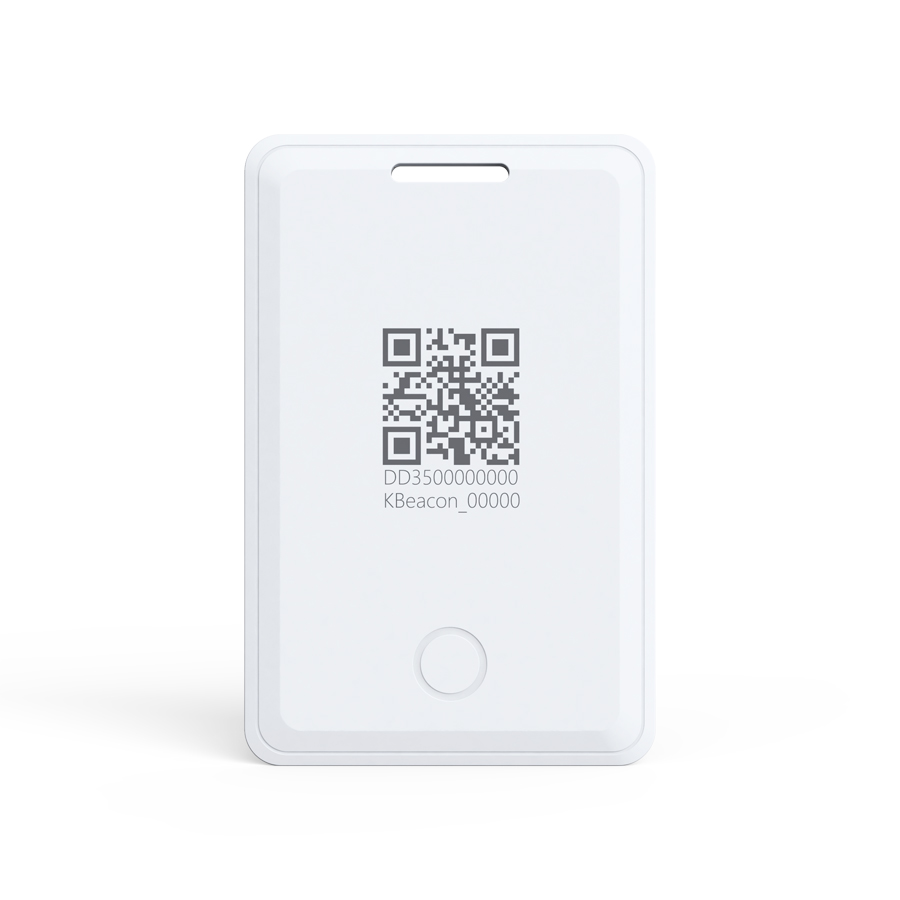

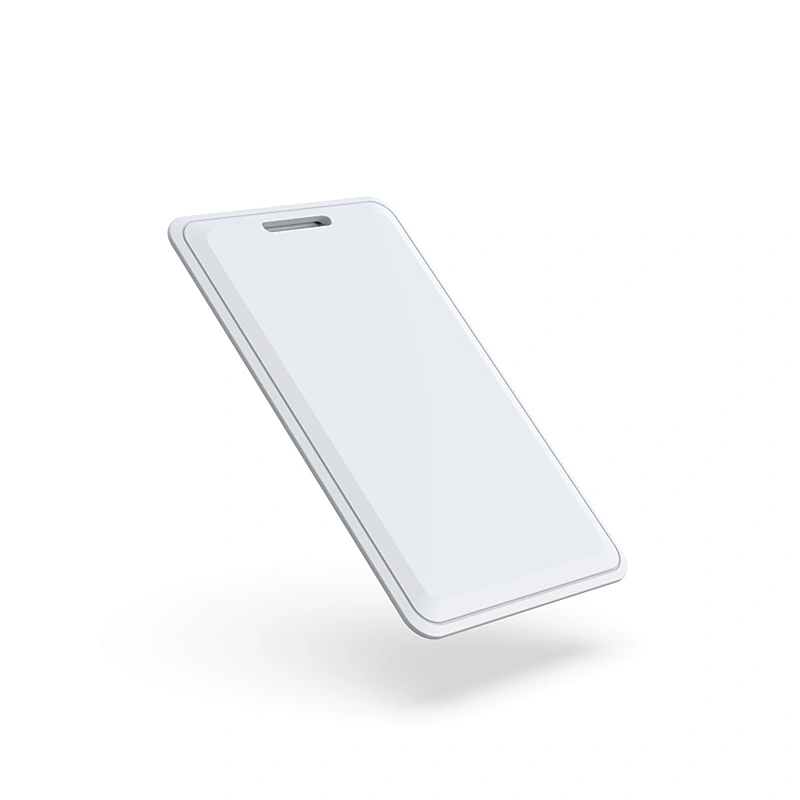

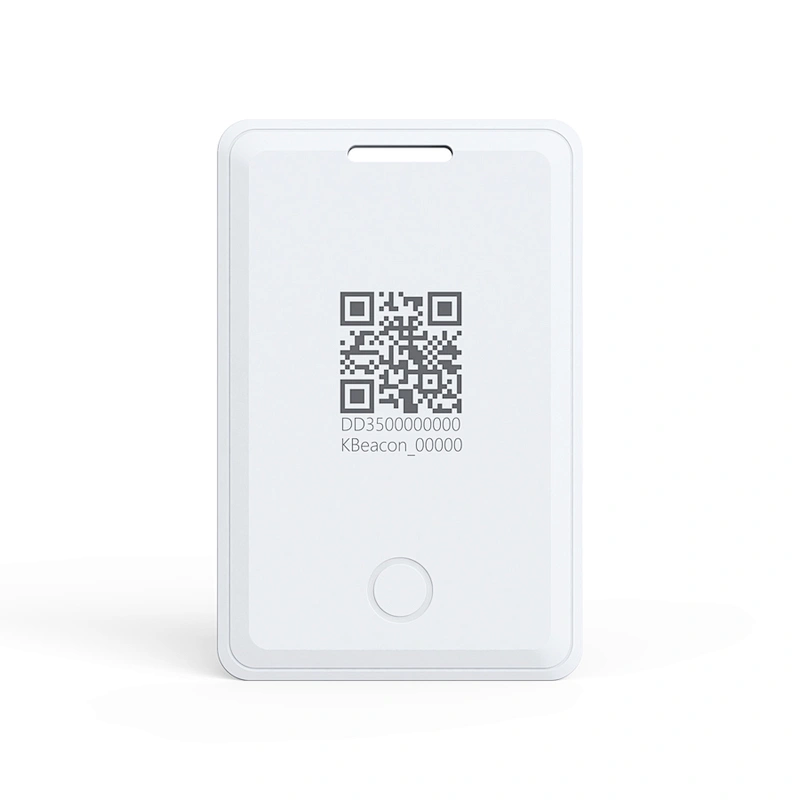

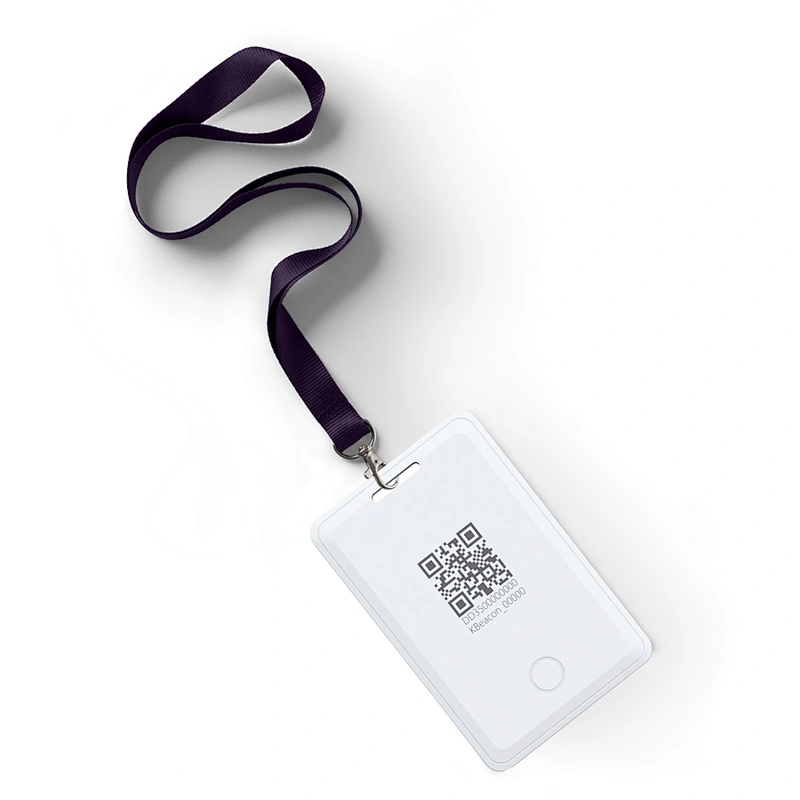

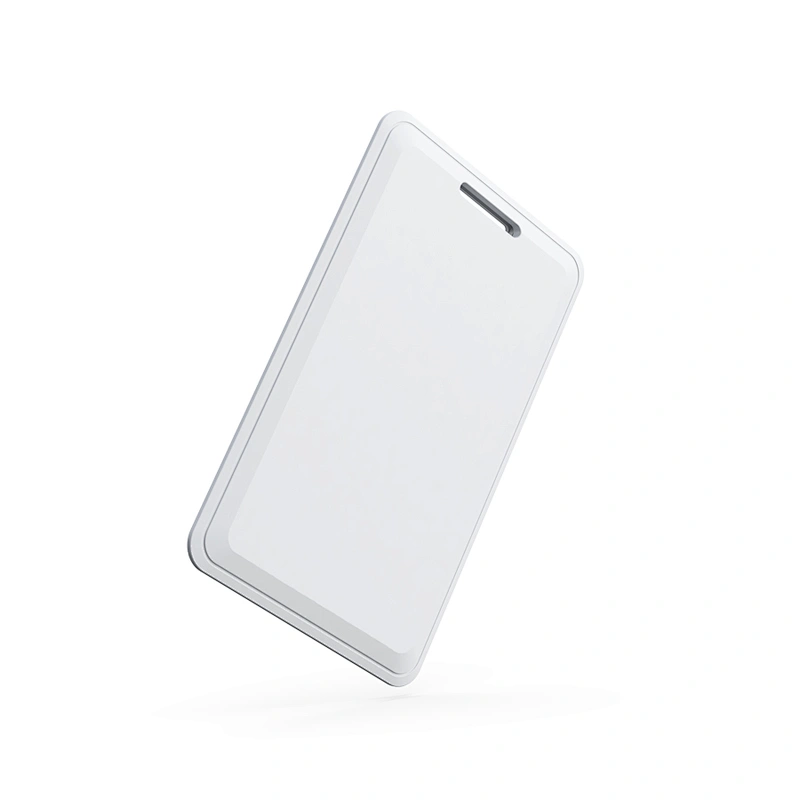

K7 Card Beacon

●NFC/RFID optional

●Support SOS button

●Accelerometer sensor
●Chip: Nordic nRF52 series

●850mAH capacity, 4 years battery life

●Bluetooth range: 100 meters

● CE/FCC certified

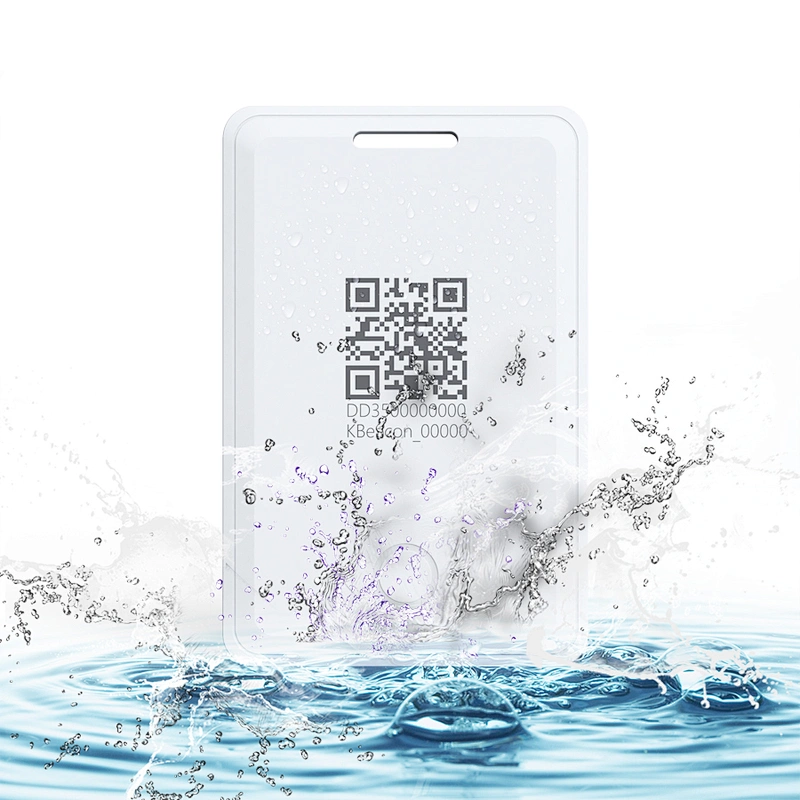

●IP67 waterproof

●Support iBeacon/Eddystone/KSensor

K7 Card Beacon

●K7 is a IP67 waterproof portable Beacon with ultra low power consumption , it has strong signal, designed for personnel
management, patients tracking and indoor location solutions.

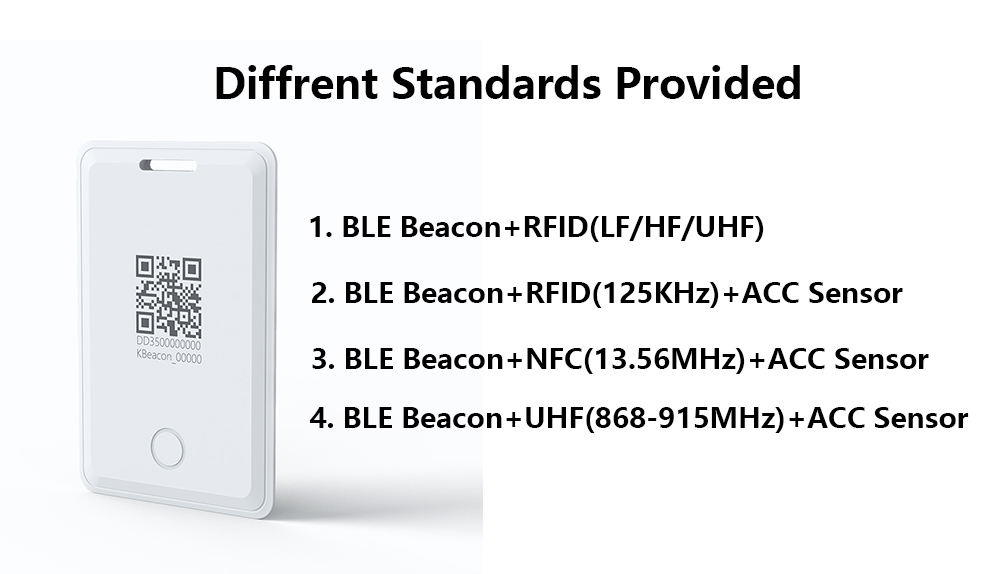

●K7 supports a variety of NFC/RFID standards, can be used in door access, payment and etc.
●K7 has a push button and LED light, supports button trigger, can be used as SOS button.
●Device Name, TX Power, Advertisement period, UUID, Major ID, Minor ID can be configured with KBeacon APP.
●The Mac address, MajorID and MinorID is unique in each beacon.

●We can also customize or configure the parameter you need.

Details Images

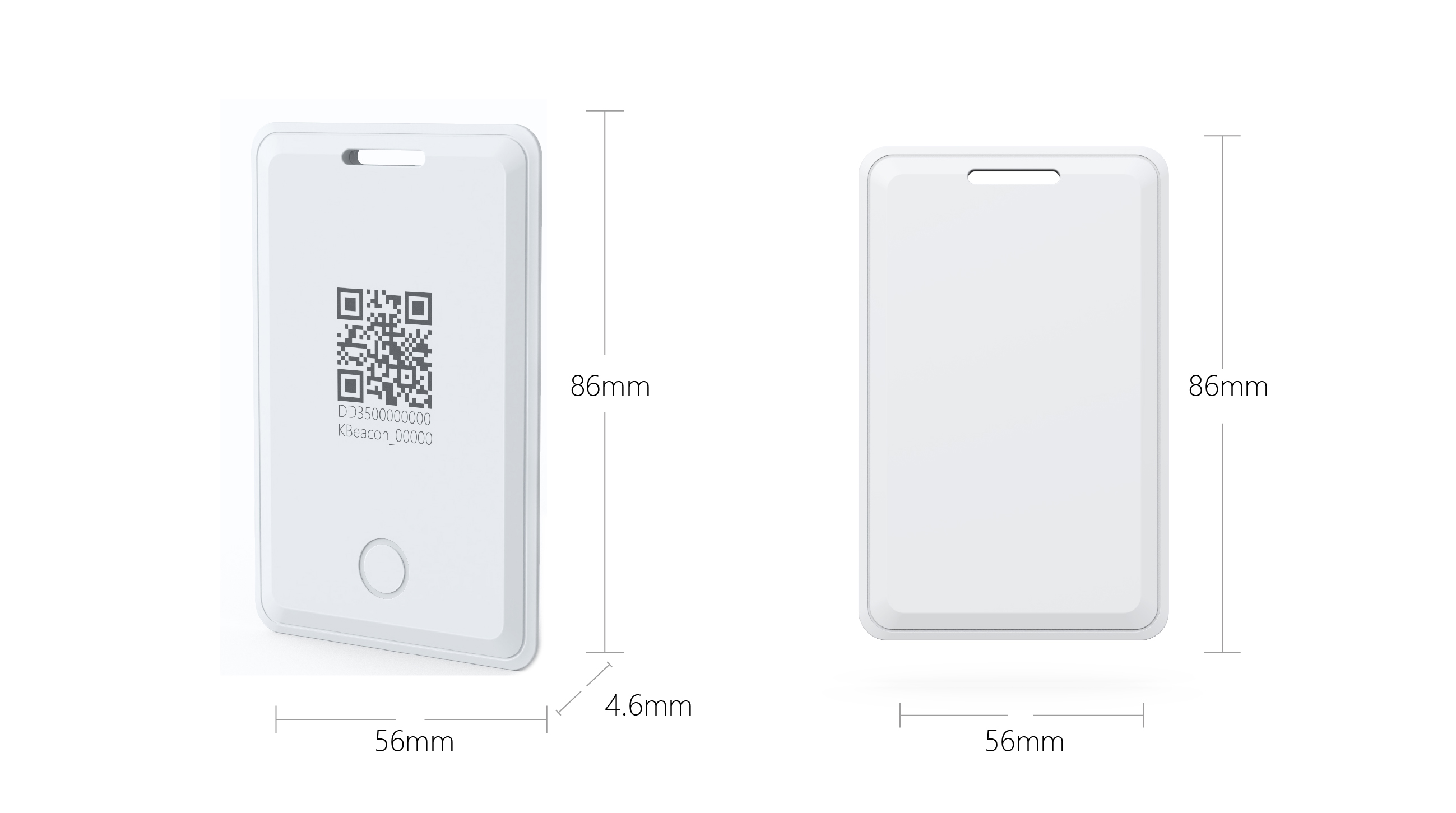

Size	86mm56mm4.6mm	BLE Version	BLE5.0
Material	ABS	Protocol	iBeacon/Eddystone/Ksensor
Weight	20g (with battery)	OTA	YES
Battery	Li-polymer battery (non-replaceable)	Button	1 button
Battery Life	4 years (Base on Broadcast Interval 1s and TX power 0dBm)	Sensor	Acceleration sensor
Certification	CE/FCC	Working Temperuature	-40°C ~+70°C
Chipset	nRF52 series	Storage Temperature	10°C ~+25°C, ≤65%RH

Product Usage

How it works

1, You can use smartphone App to connect to the K7 Beacon and read the data. We can provide the SDK and library for you to develop your own App and do integration.

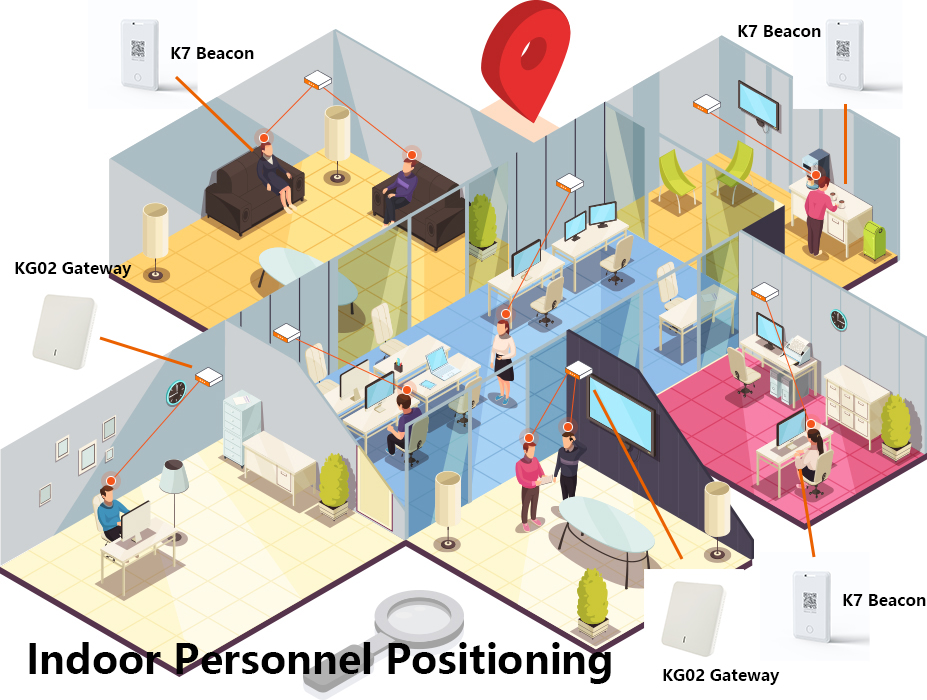

2,The K7 Beacon can also connect to KGateway KG01/ KG02 via Bluetooth. The KGateway can collect K11 Beacon data and upload to cloud server via LTE/WIFI/Ethernet in real-time. KKM will provide you the KGateway API to do integration to your system.

Application

--Employee management
--Trade show attendance management
--Door access
--And more
