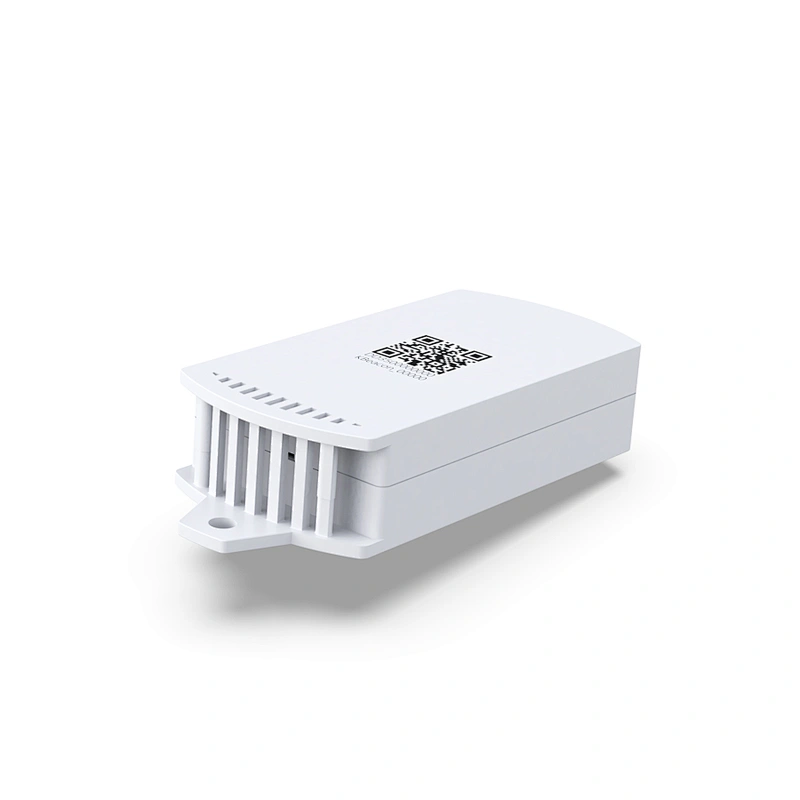

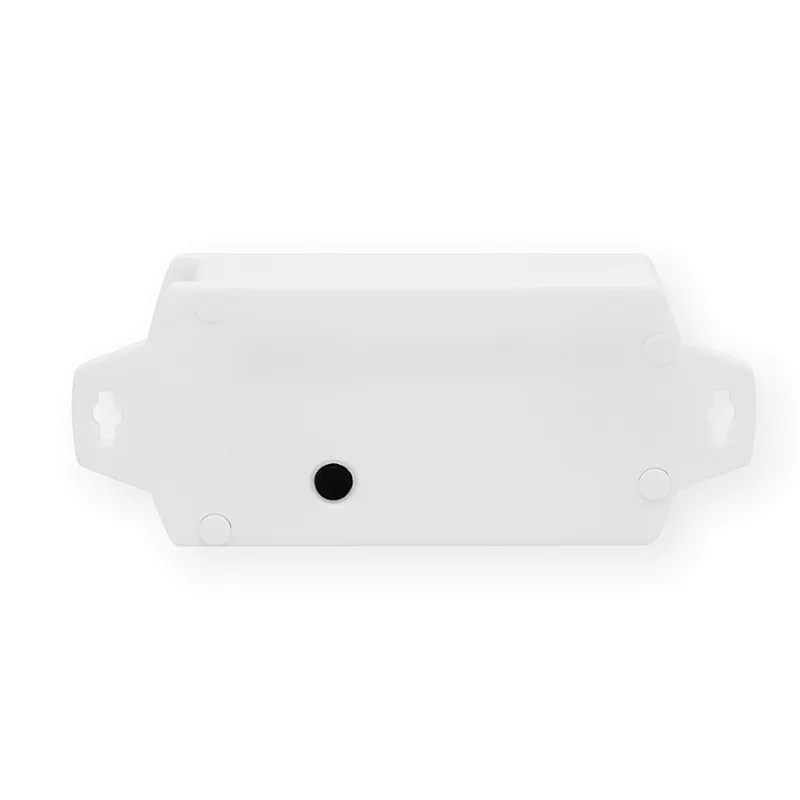

Smart Ble Temperature Humidity monitoring IoT Beacon Waterproof wall mounting Beacon with screw hole
K6 Sensor Beacon
• Chip: Nordic nRF52 series
• Bluetooth range: 100 meters • Ultra low&high temperature sensor • Probe Optional • 2600mAh battery capacity • Up to 8 years ultra-long battery life • FCC/CE certified • Support iBeacon/Eddystone/KSensor • SDK or Library Provided • Support offline temp. & humidity records. • IP63 waterproof

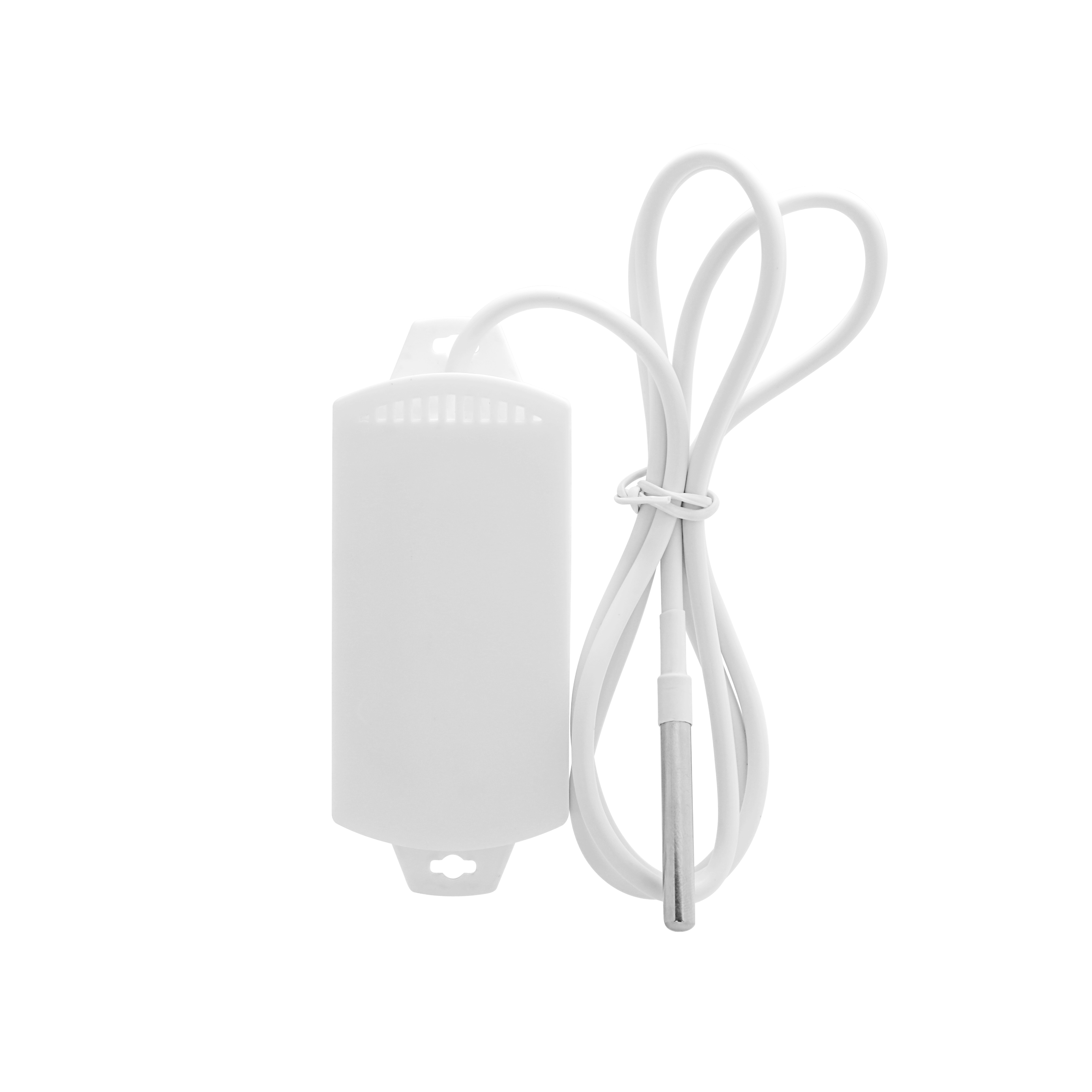

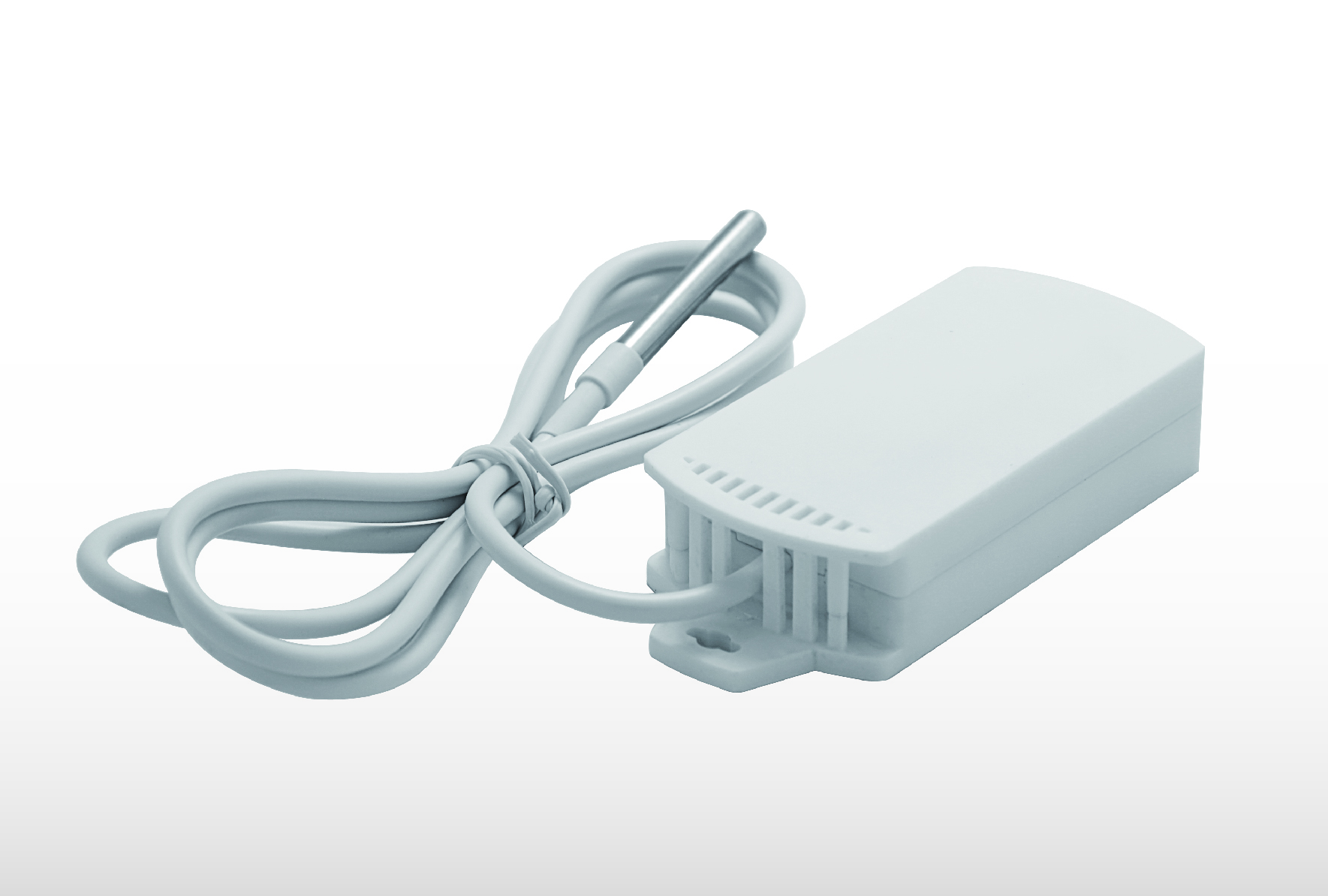

K6 Sensor Beacon ● K6 can mount on wall, measure and monitor the environment temperature and humidity data. ● K6 can extend the sensor in probe, you can put the probe in soil or put inside the refrigerator. ● Device Name, TX Power, Advertisement period, UUID, Major ID, Minor ID can be configured with KBeacon APP. ● The Mac address, MajorID and MinorID is unique in each beacon.
● We can also customize or configure the parameter you need.

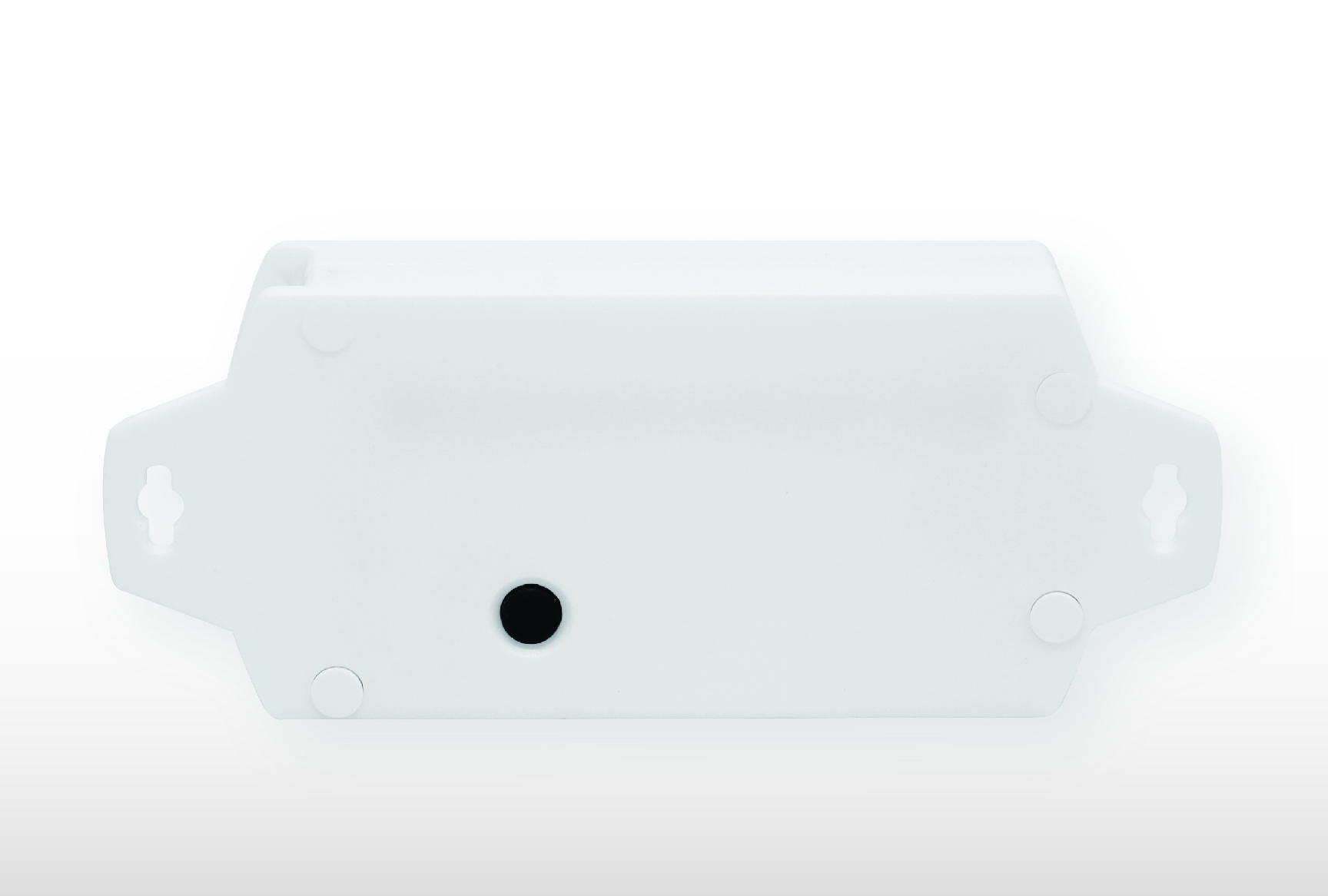

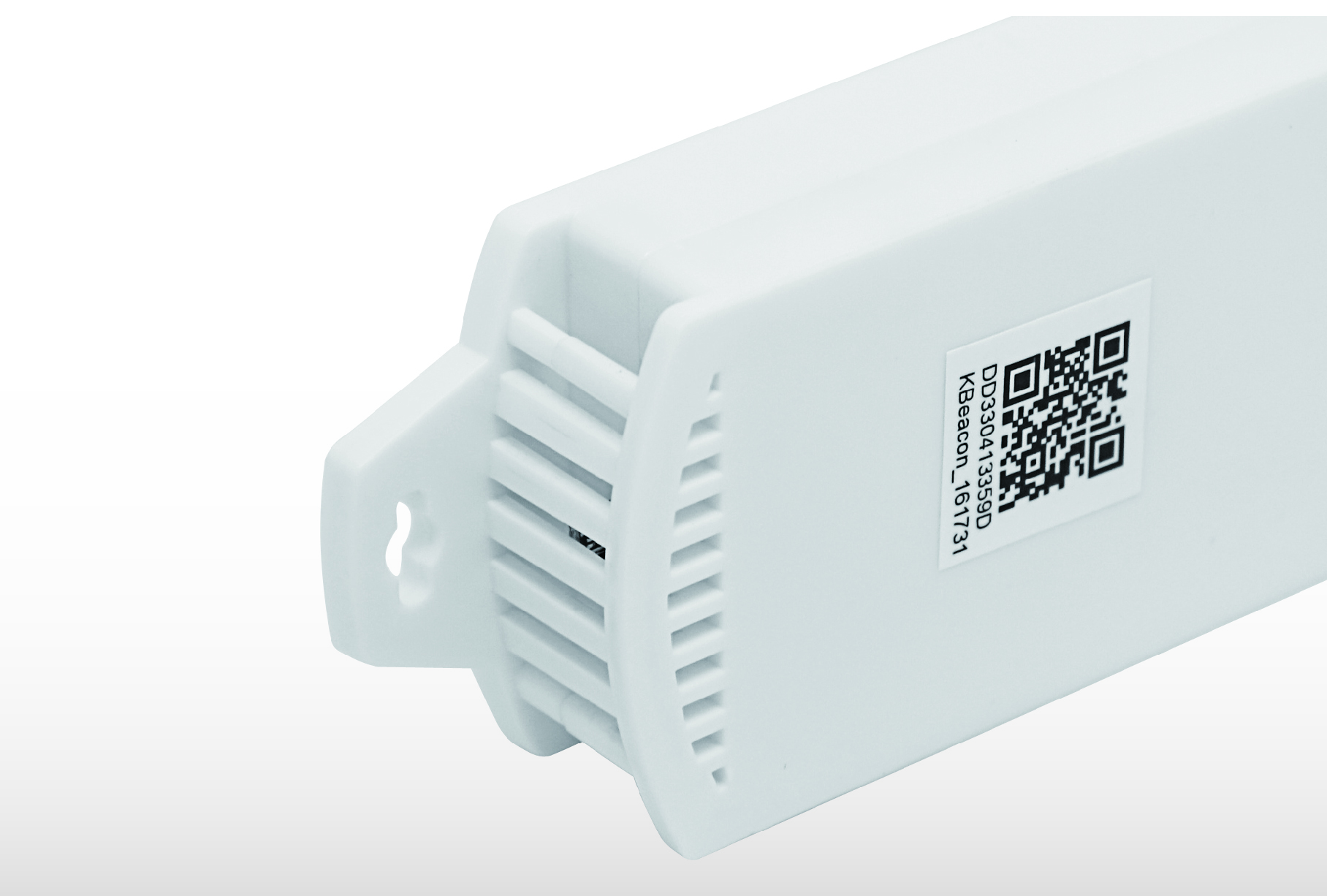

Details Images
Specification

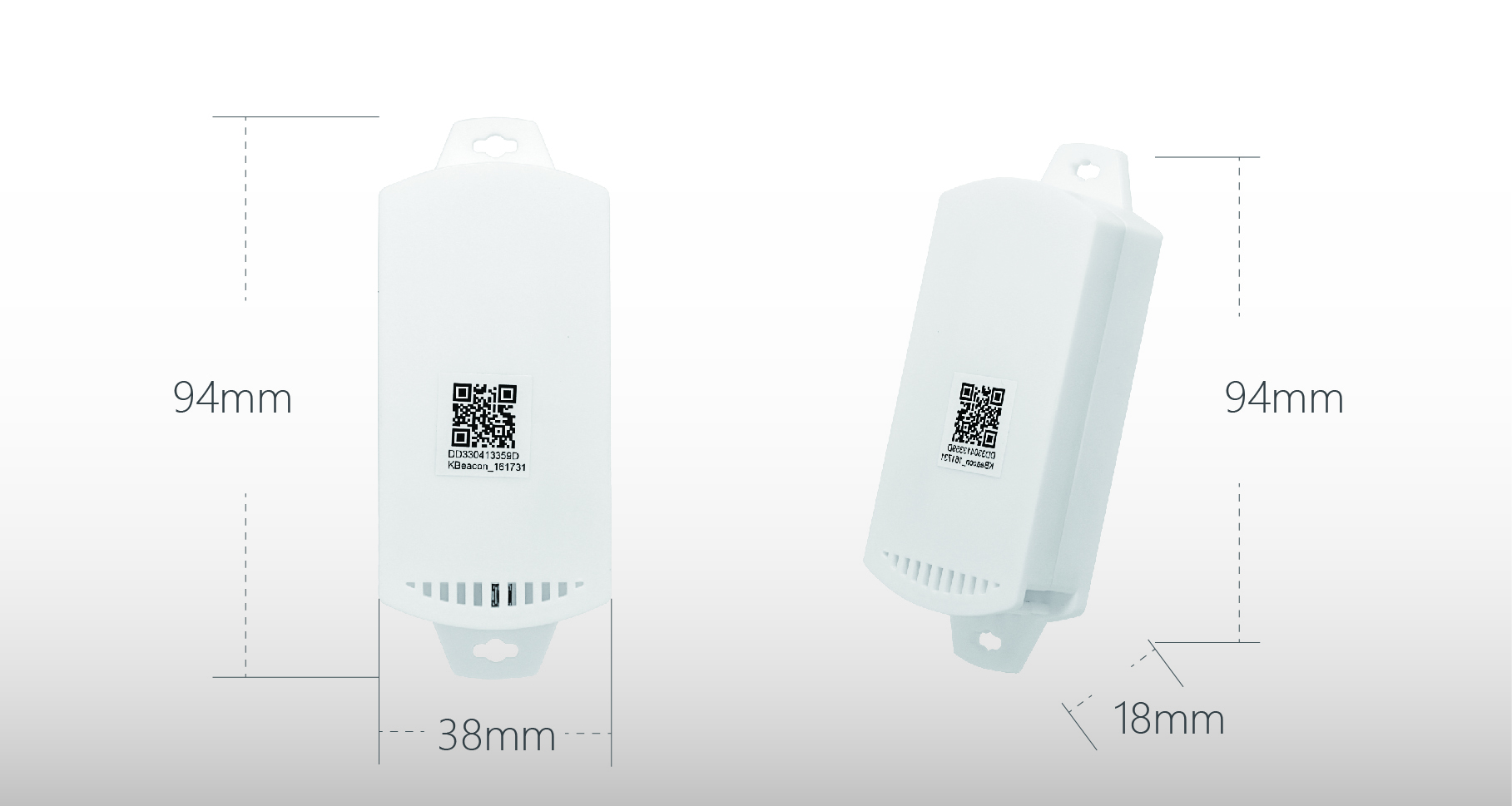

Size
94mm*38mm*18mm
BLE Version
BLE5.0
Material
Industrial Plastic
Protocol
iBeacon/Eddystone/Ksensor
Weight
42g (with battery)
OTA
YES
Battery
3.6V 2600mAh ER14505 Lithium battery
Button
1 button
Battery Life
8 years (Base on Broadcast Interval 1s and TX power 0dBm)
Sensor
Temperature-Humidity sensor
± 0.3°C error
Accelerometer sensor
Waterproof
IP63
Working Temperuature
-40°C ~+70°C
Chipset
nRF528 serie
Storage Temperature
10°C ~+25°C, ≤65%RH
Product Usage
How it works 1, You can use smartphone App to connect to the K6 sensor beacon and read the temperature & humidity data. The K6 can store 2000 temperature&humidity data. You can download and read the stored remote records.

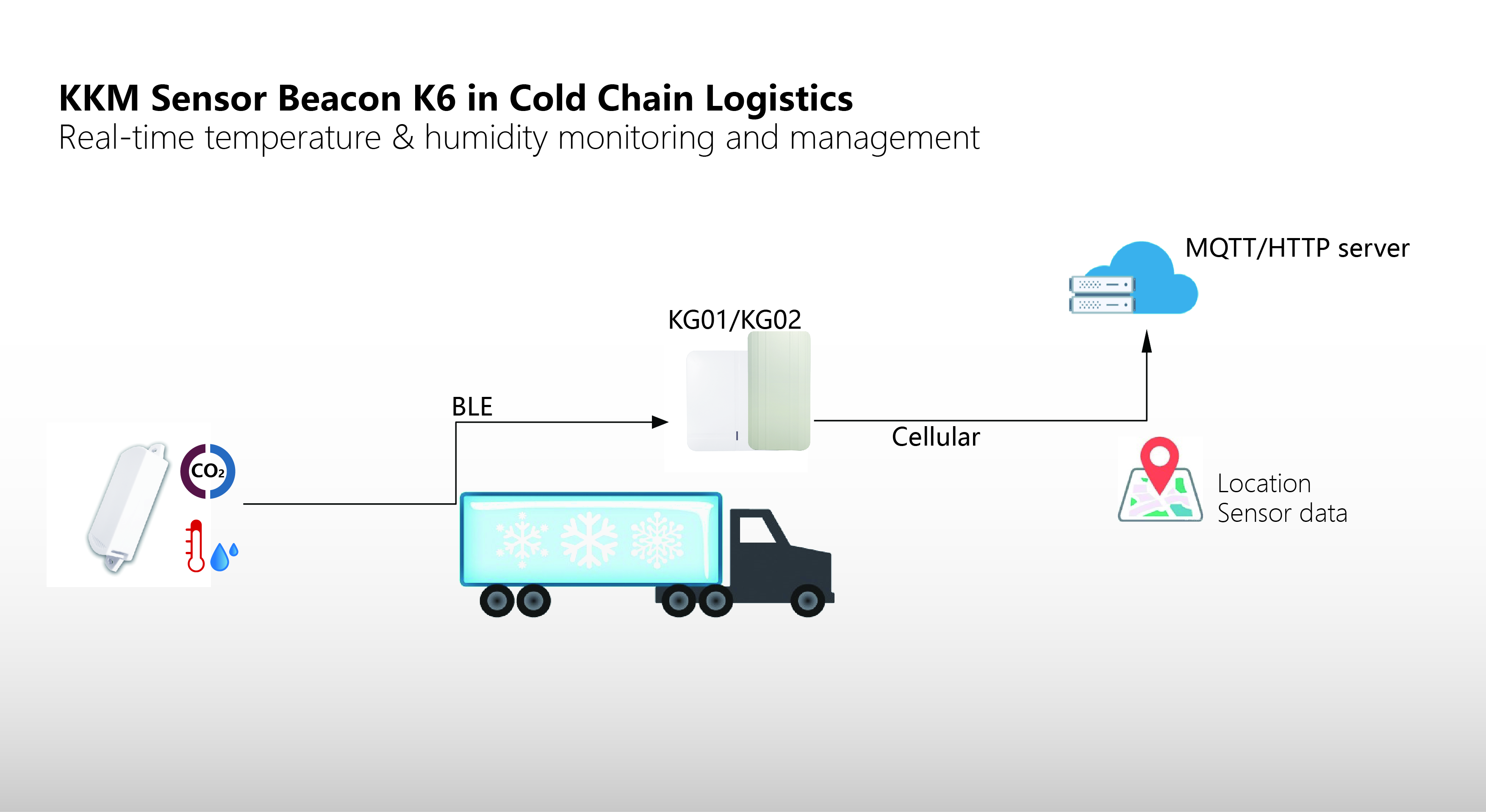

2, The K6 can connect to KG01/KG02 gateway via Bluetooth. The temperature & humidity data will upload to your server via LTE/WiFi/PoE in real-time.

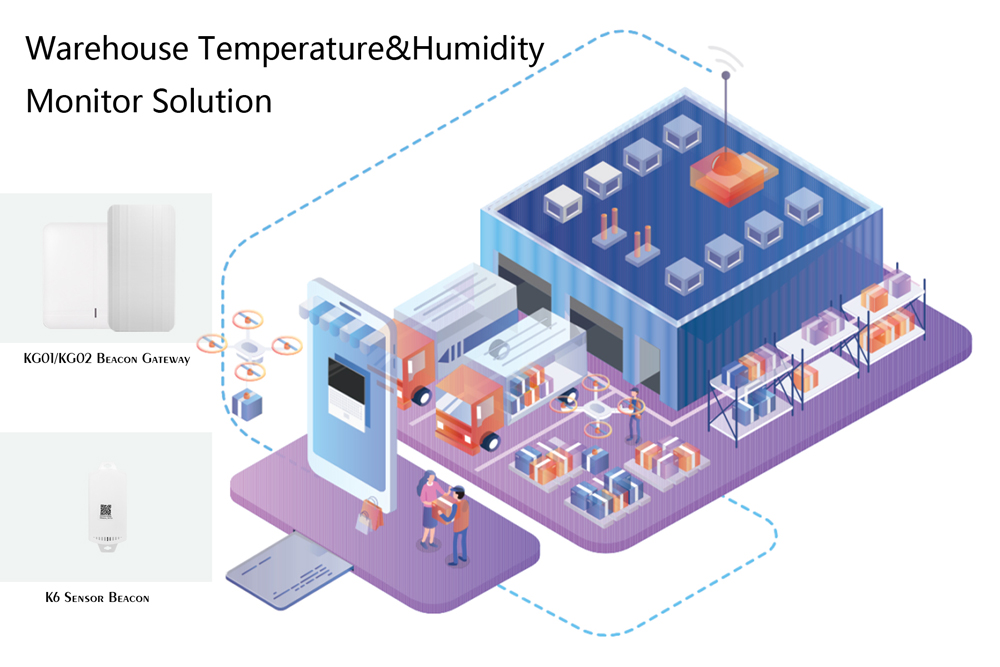

Application --Warehouse temperature monitoring--Cold Chain real-time temperature tracking --Agriculture temerature monitoring --Super market --Smart Office --Greenhouse --Lab
