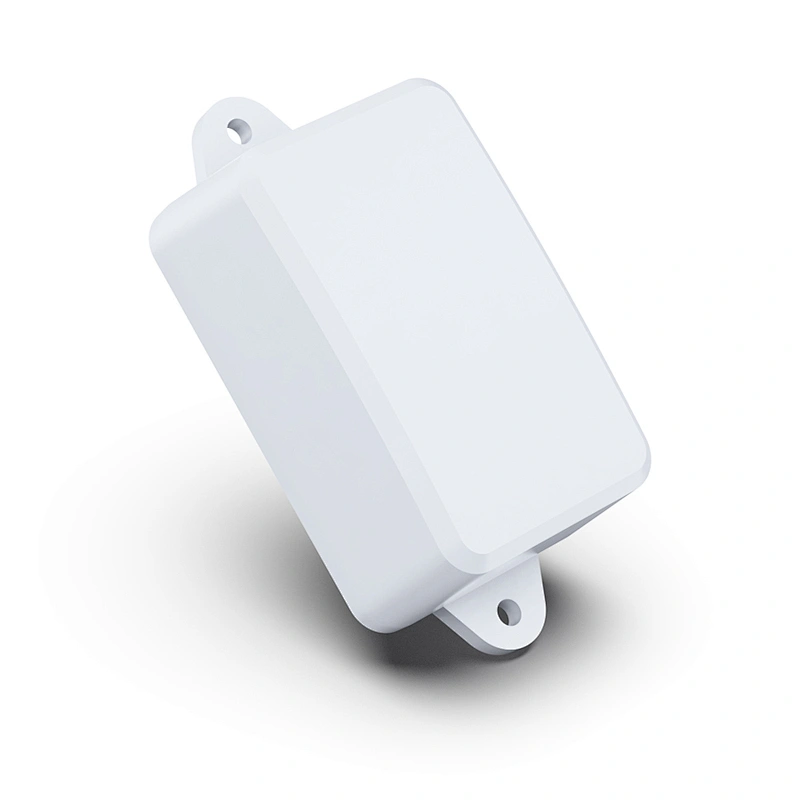

long distance bluetooth ble 5.0 indoor location ibeacon IP67 waterproof beacon Asset tracking device

long distance bluetooth ble 5.0 indoor location ibeacon IP67 waterproof beacon Asset tracking device

Model NO.: beacon eddystone K9
Price:: $ 5.38-10.00 / piece
Minimum order quantity: 1 piece
Country of Origin: shenzhen

Product Description

Network:SDK Avilable, API Avilable
Model Number:beacon eddystone K9
Type:Factory
Place of Origin:Guangdong, China
Brand Name:Kbeacon
Application:IOT
Product name:beacon eddystone K9
Compatibility:iOS 7.0+ and Android 4.3+ system
Battery Model:ER14505 Lithium battery
ibeacon Size:58mm*36mm*25mm
ibeacon Weight:40g (with battery)
Battert lifetime:more then 8 years
Real Working distance:BLE 5.0:100 meters
ibeacon chipset:NRF528xx
Certification:CE FCC RoHS
ibeacon support:Mbps Mode

Product Description

Eddystone&ibeacon Technology Android IOS Hardware Technology for RTLS Tracking K9

Long range Beacon

● Support BLE5.0

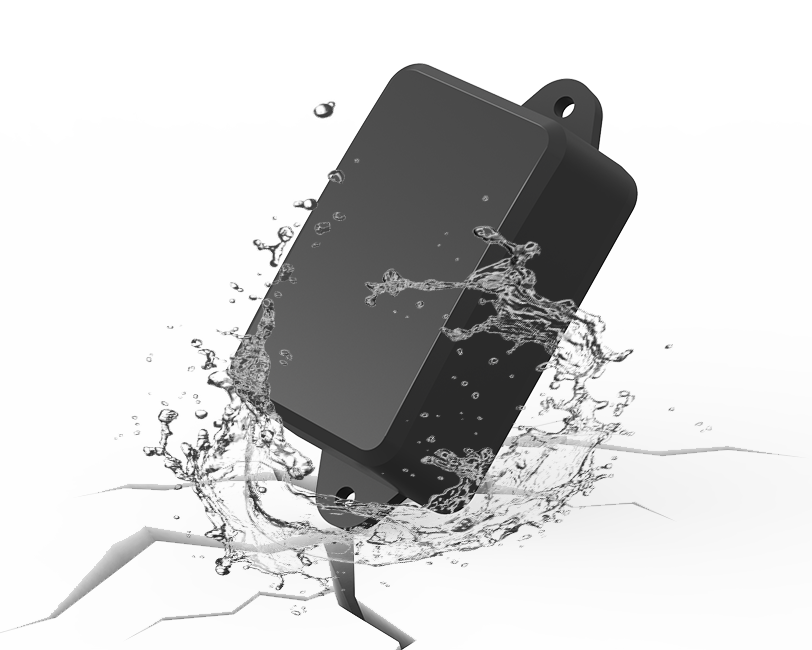

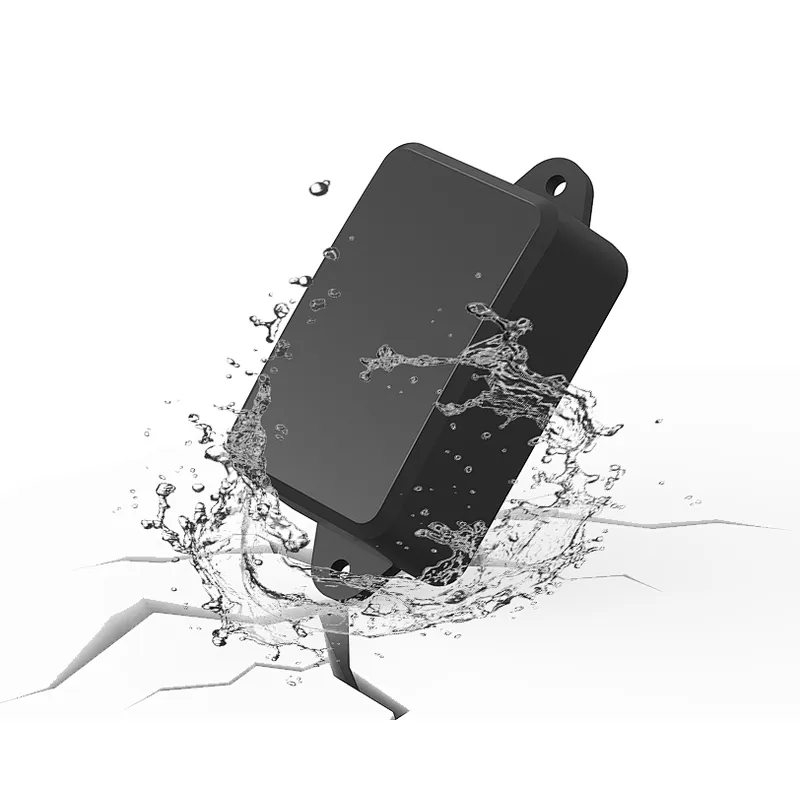

●Waterproof IP67

●Accelerometer sensor optional

●Strong and durable industrial design
●Chip: Nordic nRF52 series

● Up to 8 years battery life

●Range: 300 meters in open area

● CE/FCC certified

●Support iBeacon/Eddystone/KSensor

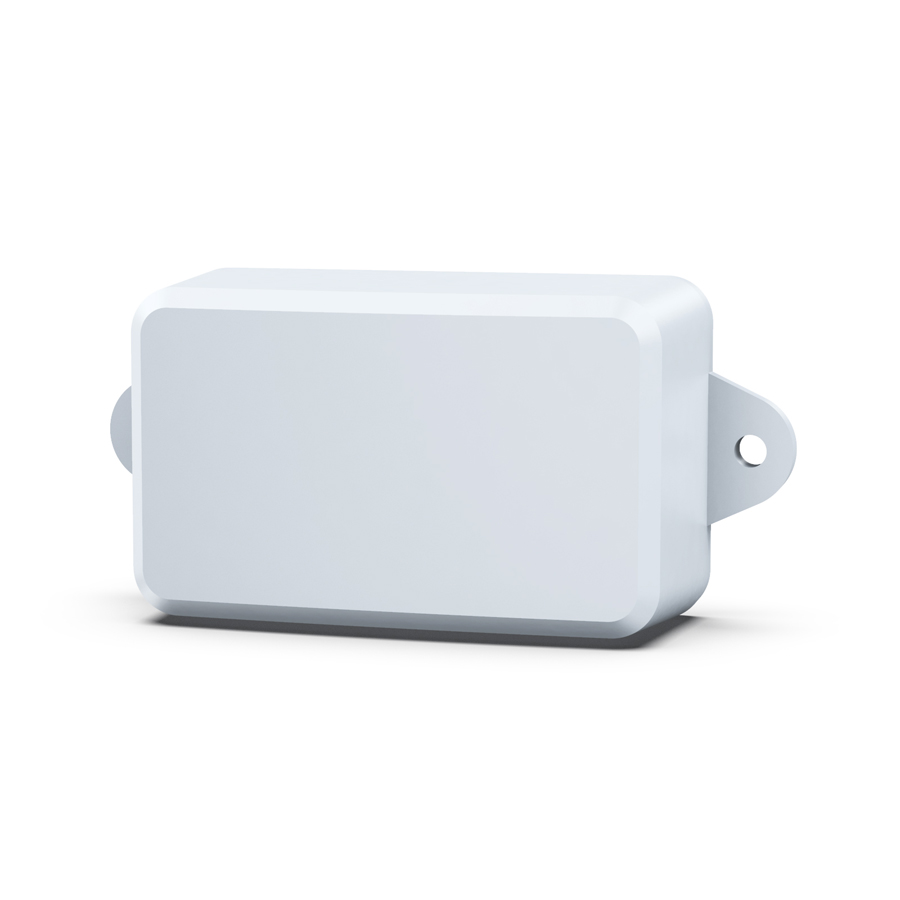

K9 Long Range Beacon

●K9 is a IP67 waterproof Beacon with ultra low power consumption, it support long range feature. The range is more than 300meters in open area.

● K9 has strong signal, designed for asset tracking, advertising and indoor location solutions.

●K9 comes with strong and durable industrial design, it can stand hostile working environment.
●Device Name, TX Power, Advertisement period, UUID, Major ID, Minor ID can be configured with KBeacon APP.
●The Mac address, MajorID and MinorID is unique in each beacon.

●We can also customize or configure the parameter you need.

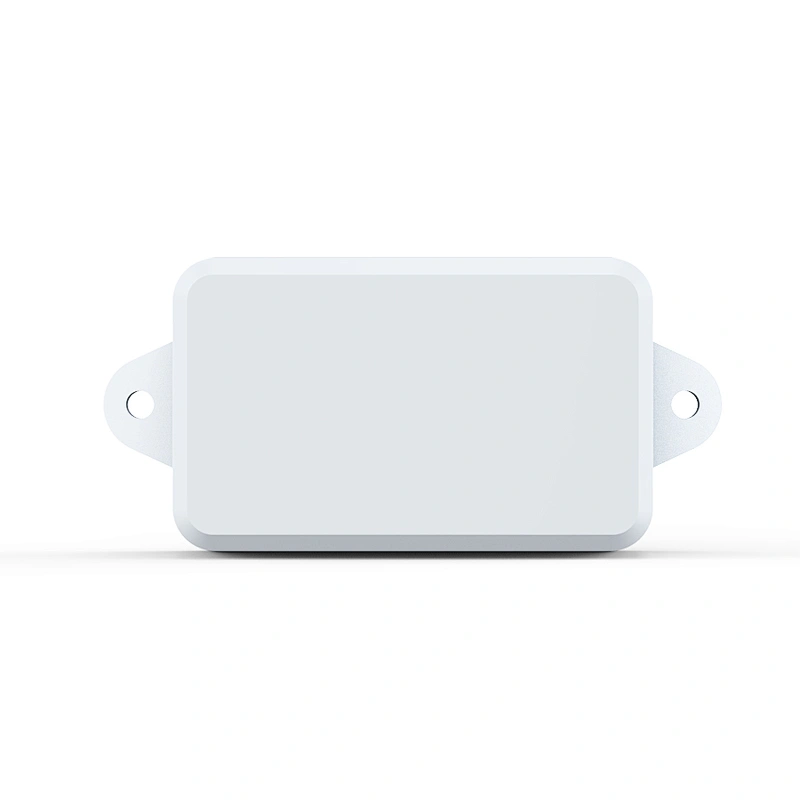

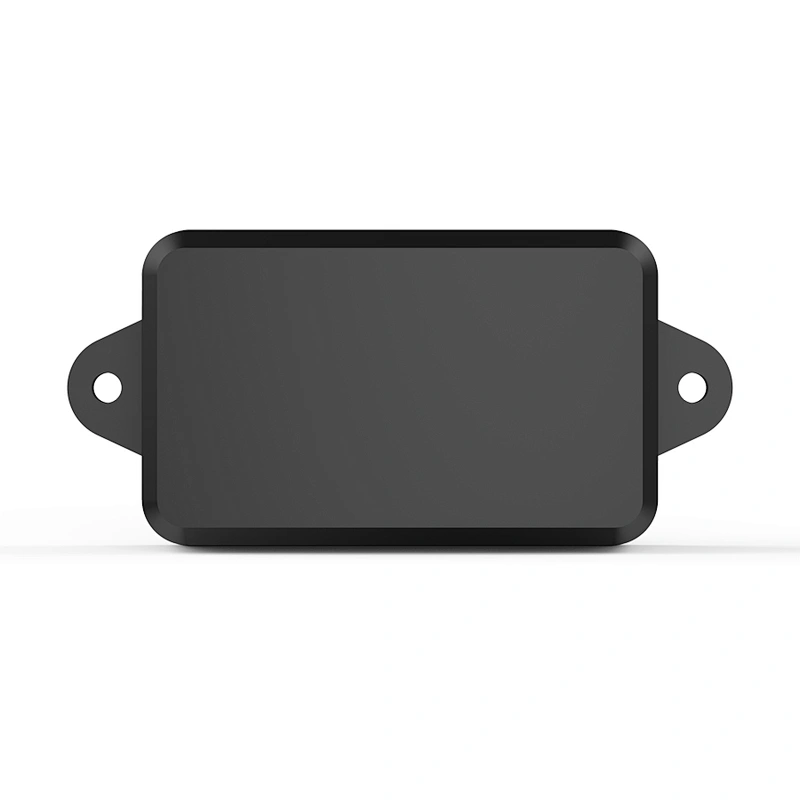

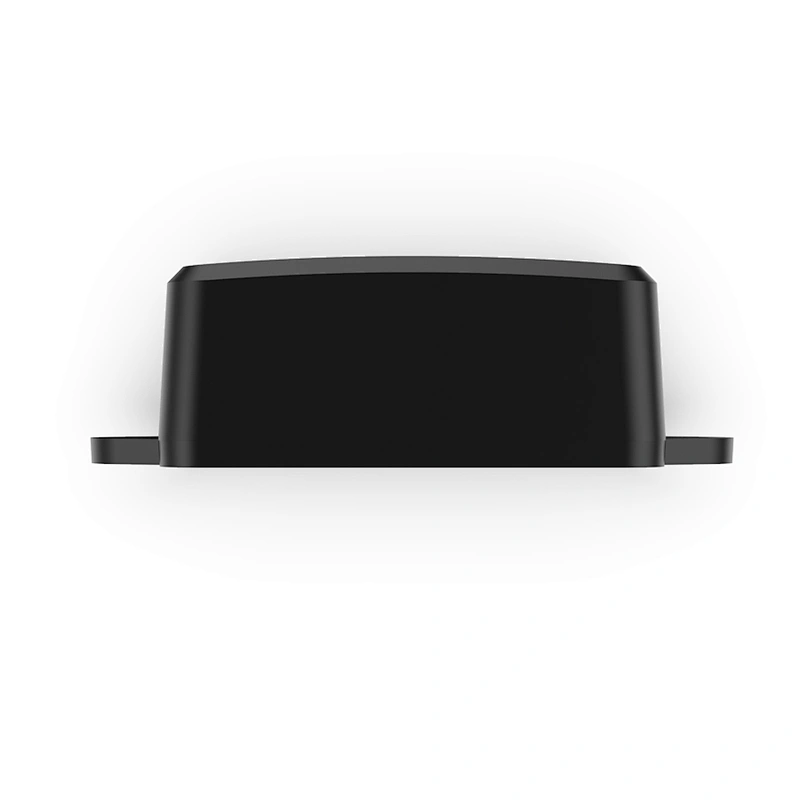

Details Images

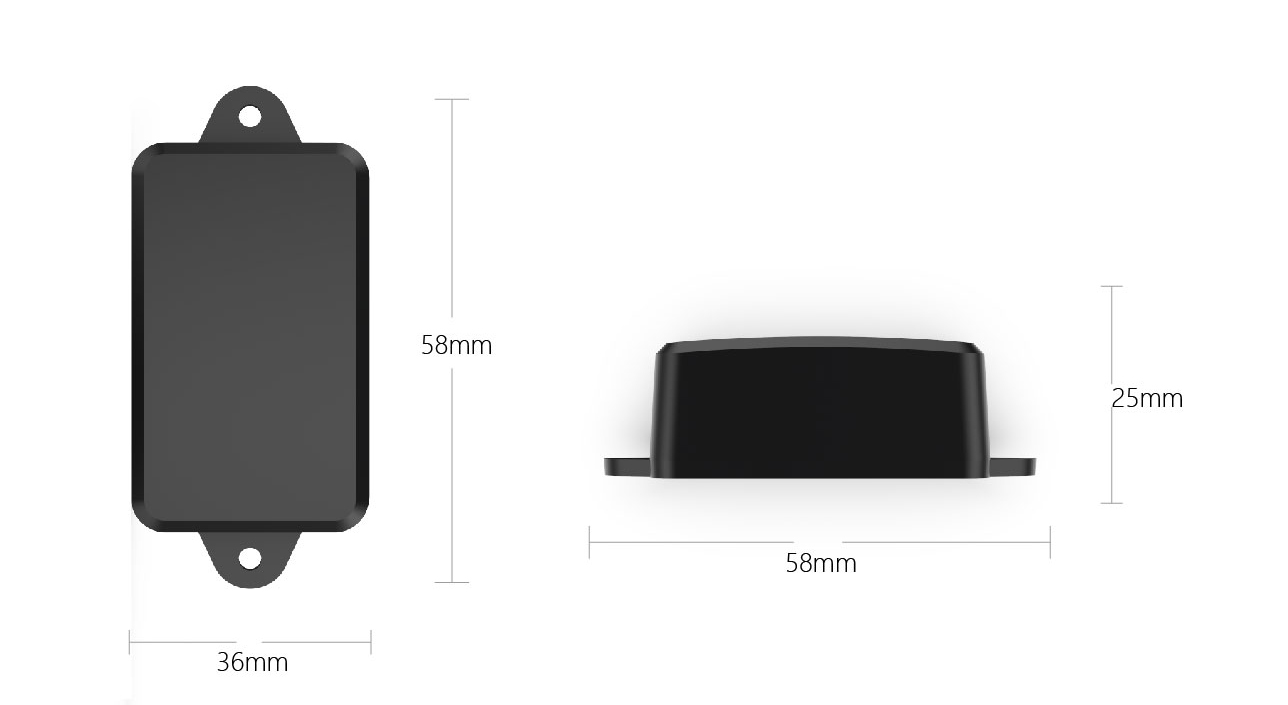

Size	58mm36mm25mm	BLE Version	BLE5.0
Material	ABS	Protocol	iBeacon/Eddystone/Ksensor
Weight	20g (with battery)	OTA	YES
Battery	ER14505 Lithium battery	Button	1 button inside
Battery Life	8 years (Base on broadcast Interval 1s and TX power 0dBm)	Sensor	Acceleration sensor Optional
Certification	CE/FCC	Working Temperuature	-40°C ~+70°C
Chipset	nRF52 series	Storage Temperature	10°C ~+25°C, ≤65%RH

Product Usage

How it works

1, You can use smartphone App to connect to the K9 Beacon and read the data. We can provide the SDK and library for you to develop your own App and do integration.

2,The K9 Beacon can also connect to KGateway KG01/ KG02 via Bluetooth. The KGateway can collect K11 Beacon data and upload to cloud server via LTE/WIFI/Ethernet in real-time. KKM will provide you the KGateway API to do integration to your system.

Application

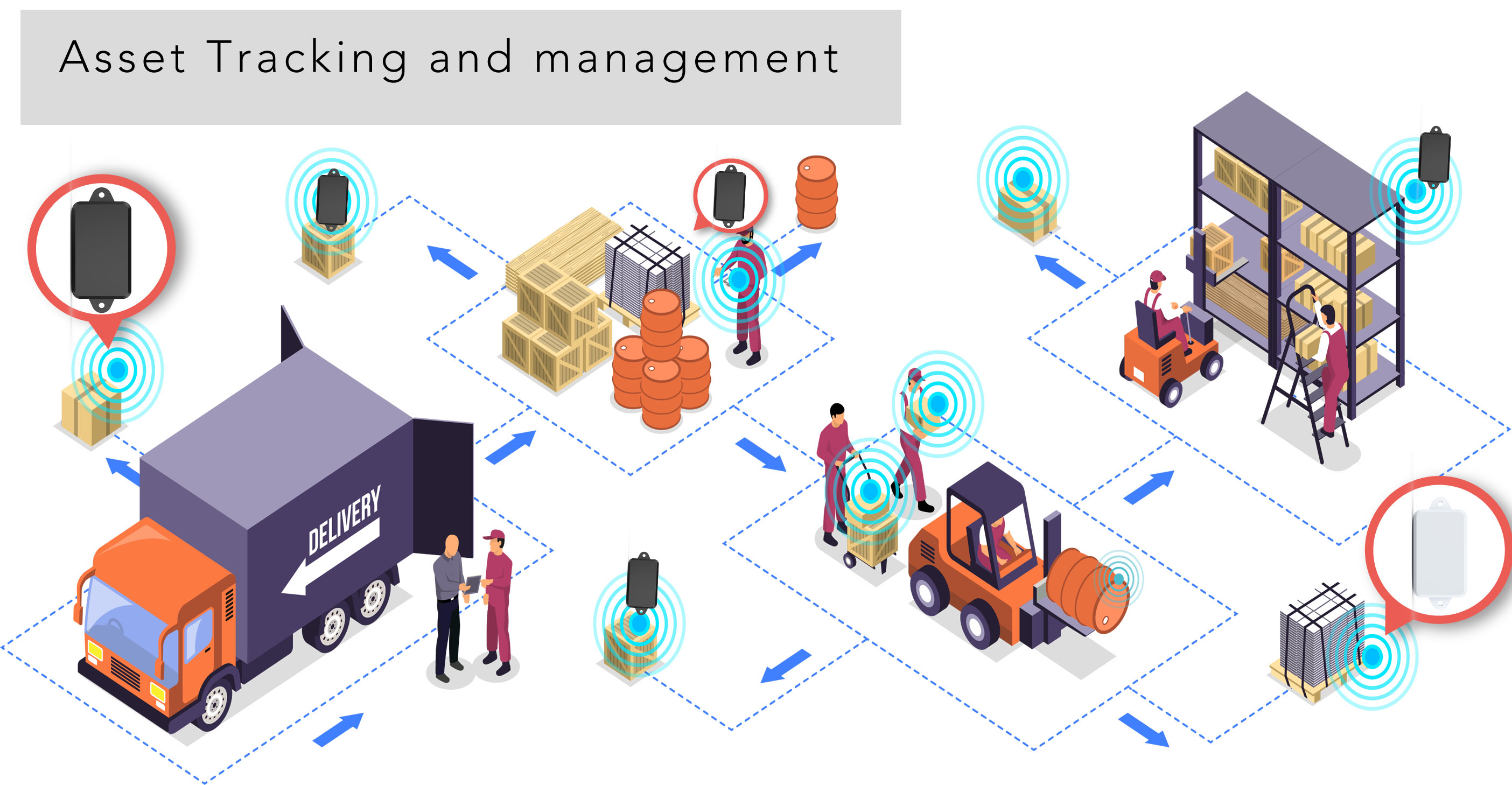

--Asset tracking
--Navigation & positioning
--Advertising & promotions
--And more
