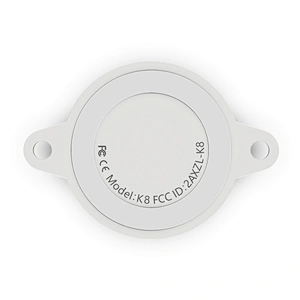

smallest mount badge ibeacon beacon accelerometer bluetooth ble beacon with accelerator

smallest mount badge ibeacon beacon accelerometer bluetooth ble beacon with accelerator

Model NO.: ibeacon K8
Price:: $ 4.73-5.13 / piece
Minimum order quantity: 1 piece
Country of Origin: shenzhen

Product Description

Model Number:ibeacon K8
Place of Origin:China
Brand Name:Kbeacon
Chipset:NRF52xxx
Supplier Type:Factory
Application:IOT
Product name:ibeacon K8
Compatibility:iOS 7.0+ and Android 4.3+ system
Battery Model:CR2477 Replaceable
ibeacon Size:47mm*15mm Waterproof IP67
ibeacon Weight:25g
Battert lifetime:more than 48 months
Real Working distance:BLE 4.0:100 meters
ibeacon chipset:NRF528xx
Certification:CE FCC RoHS
ibeacon support:Mbps Mode

Product Description

smallest mount badge ibeacon beacon accelerometer bluetooth ble beacon with accelerator

K8 Sensor Beacon

•Chip: Nordic nRF52 series

• Bluetooth range: 100 meters
• Accelerometer Sensor
•CR2477, 48 months battery life
• SDK or Library Provided
• FCC/CE certified
• Support iBeacon/Eddystone/KSensor
•IP65 waterproof

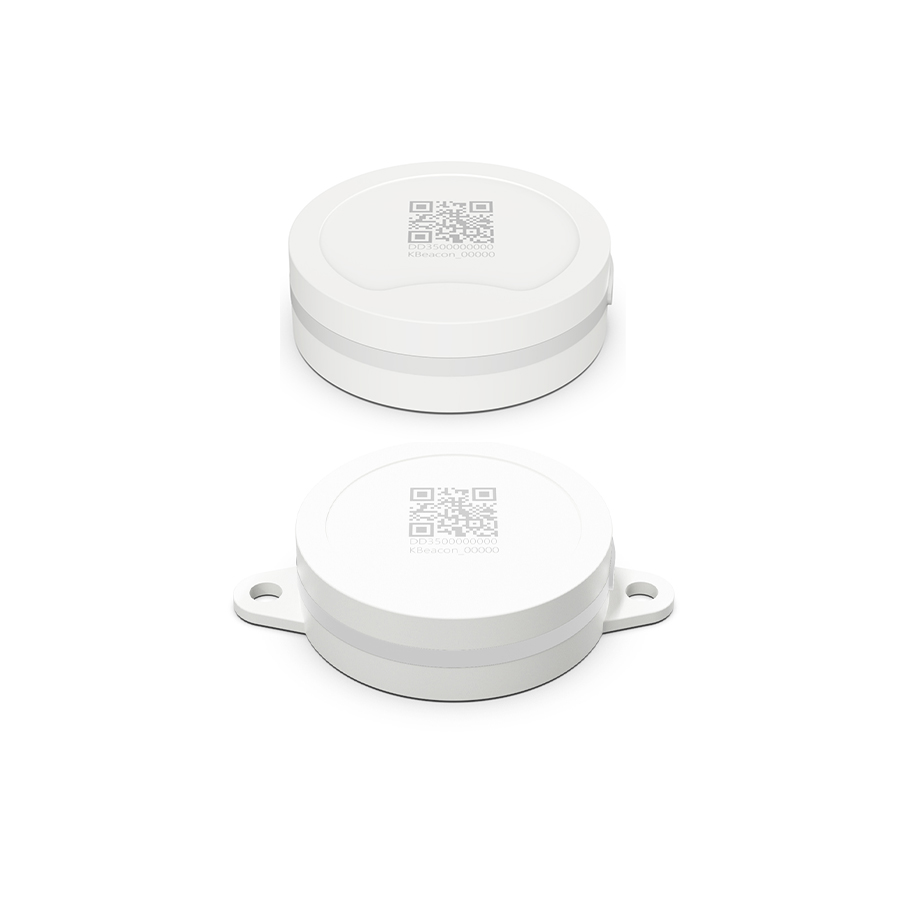

K8 Sensor Beacon
● K8 is a BLE5.0 waterproof beacon, with ultra-low power consumption. K8 with 1000mAh big capacity, the battery life is more than 4 years and the battery is replaceable.

● K8 can install by adhered type or mounting on wall or subjects, it is widely used in indoor navigation, mapping and marketing.
● Device Name, TX Power, Advertisement period, UUID, Major ID, Minor ID can be configured with KBeacon APP.
● The Mac address, MajorID and MinorID is unique in each beacon.

● We can also customize or configure the parameter as you need.

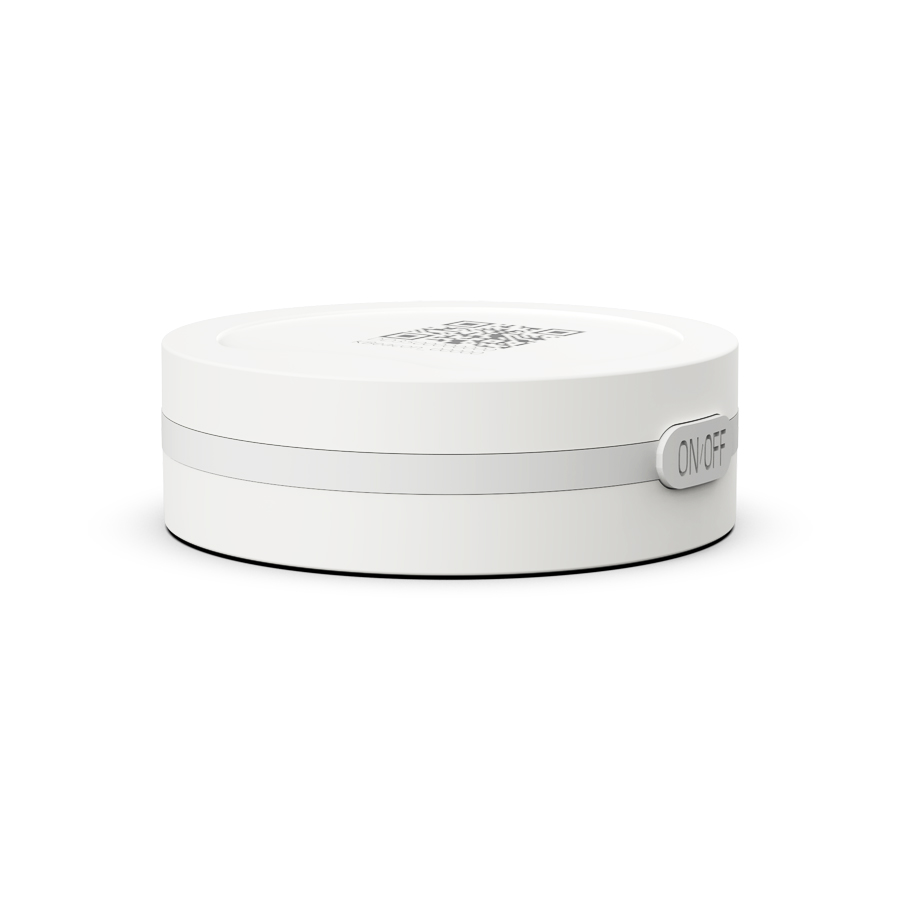

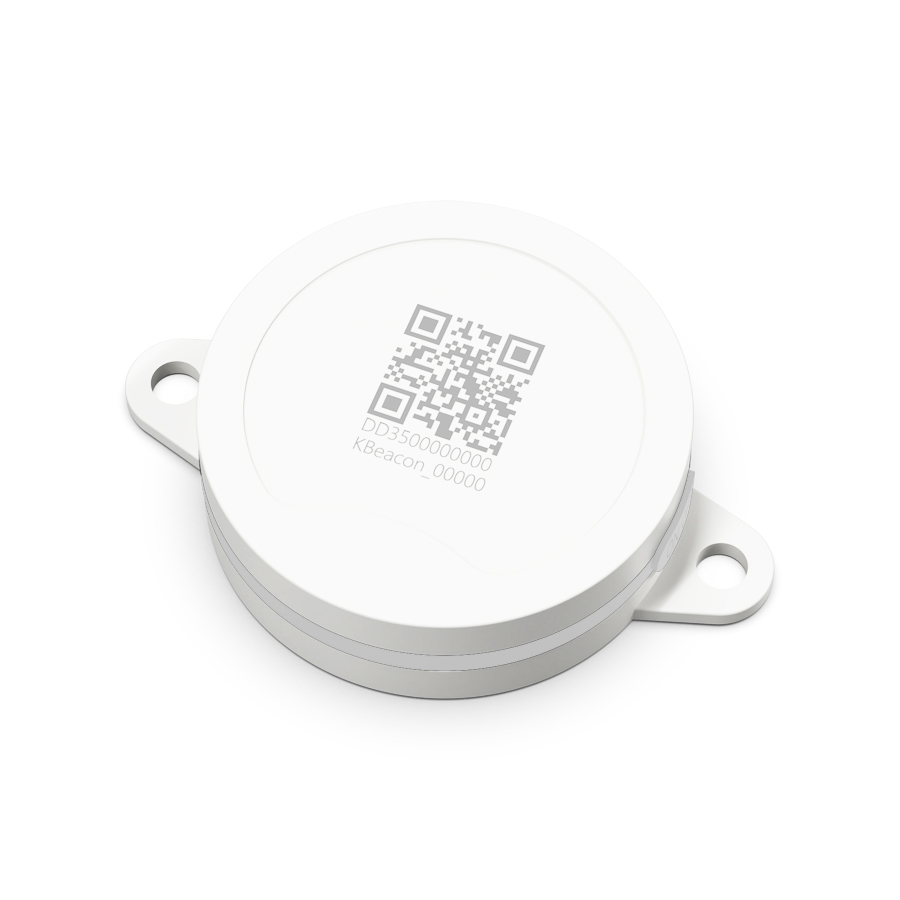

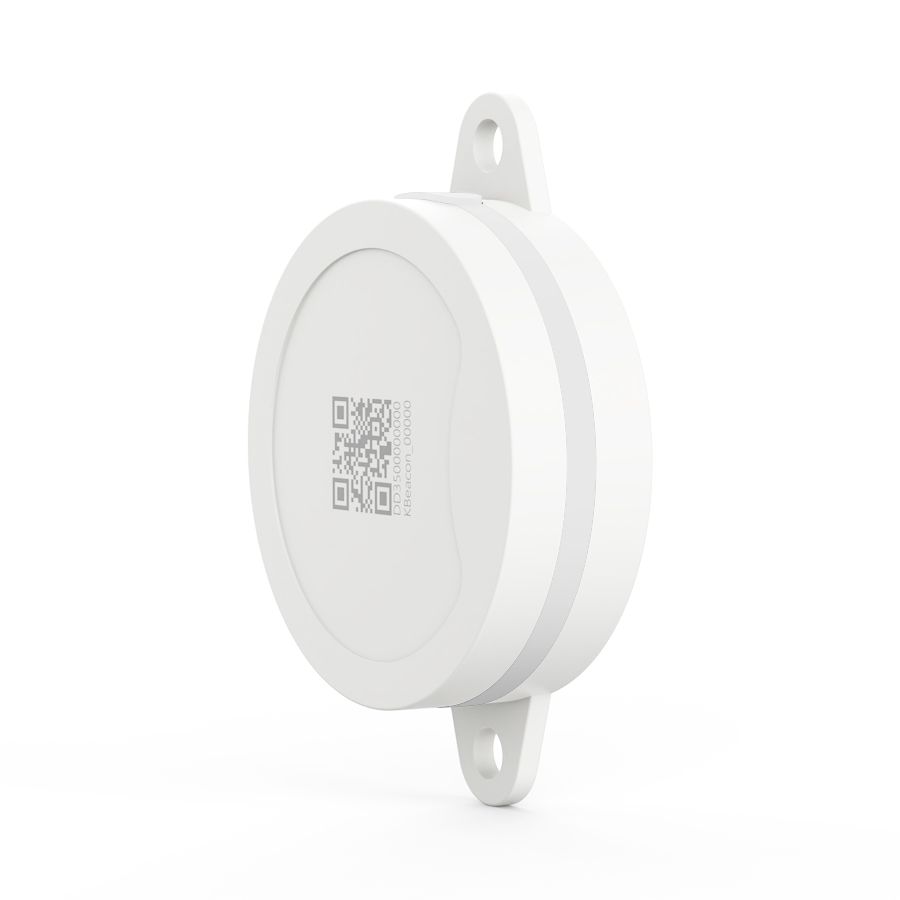

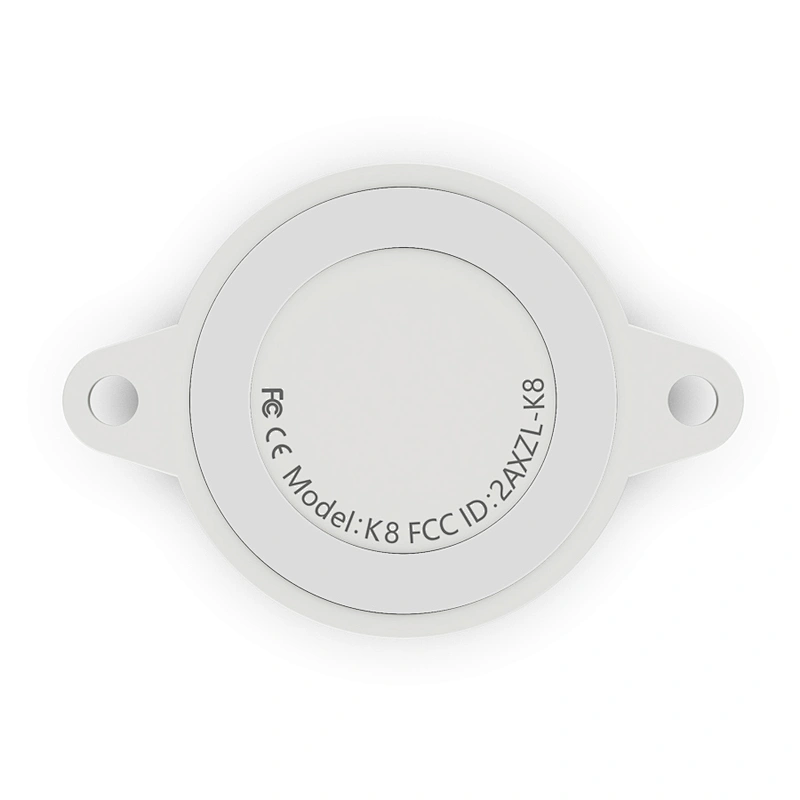

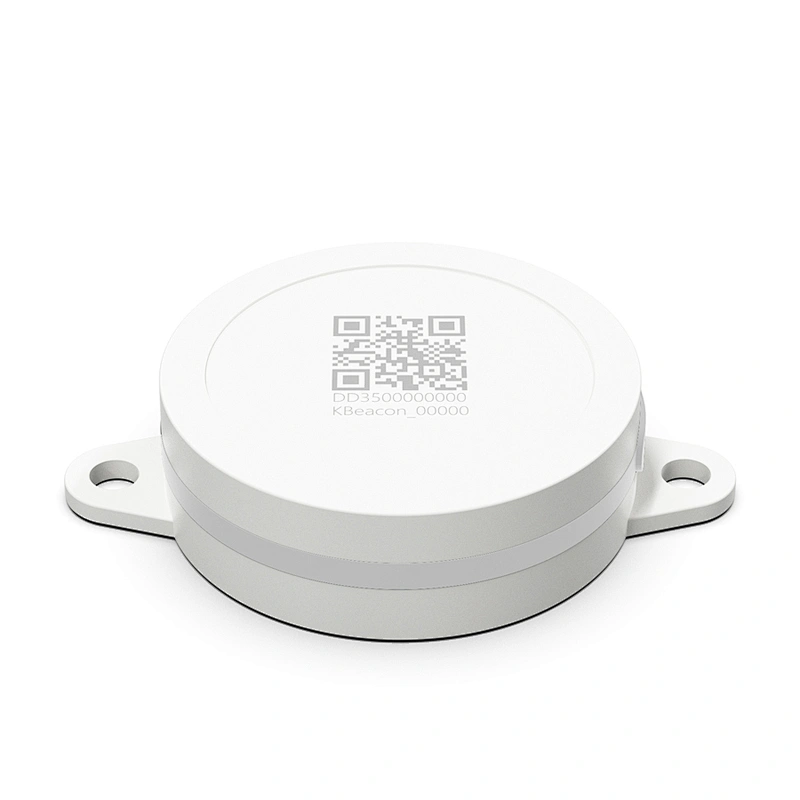

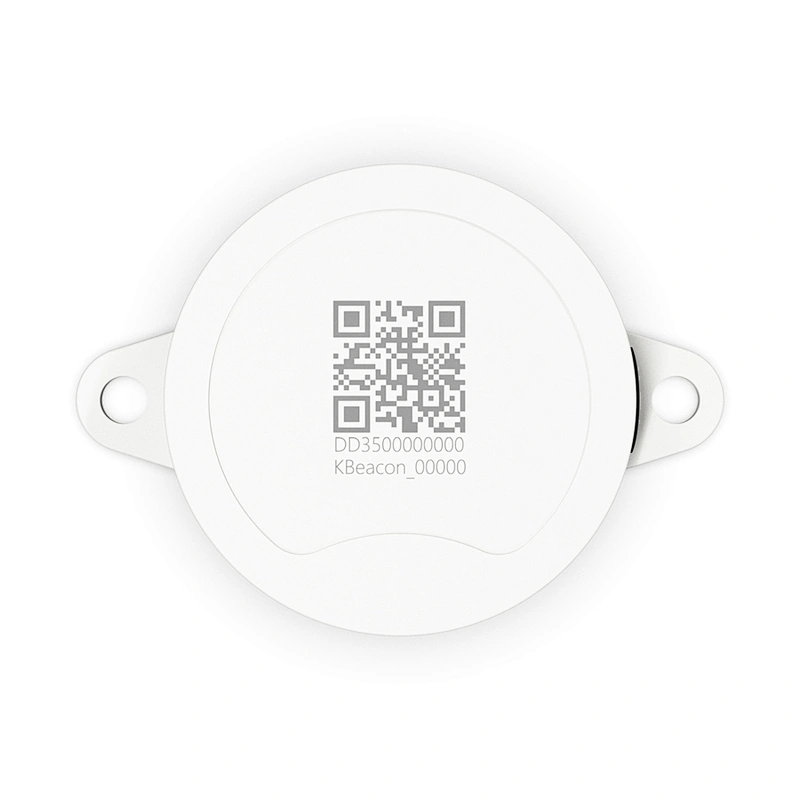

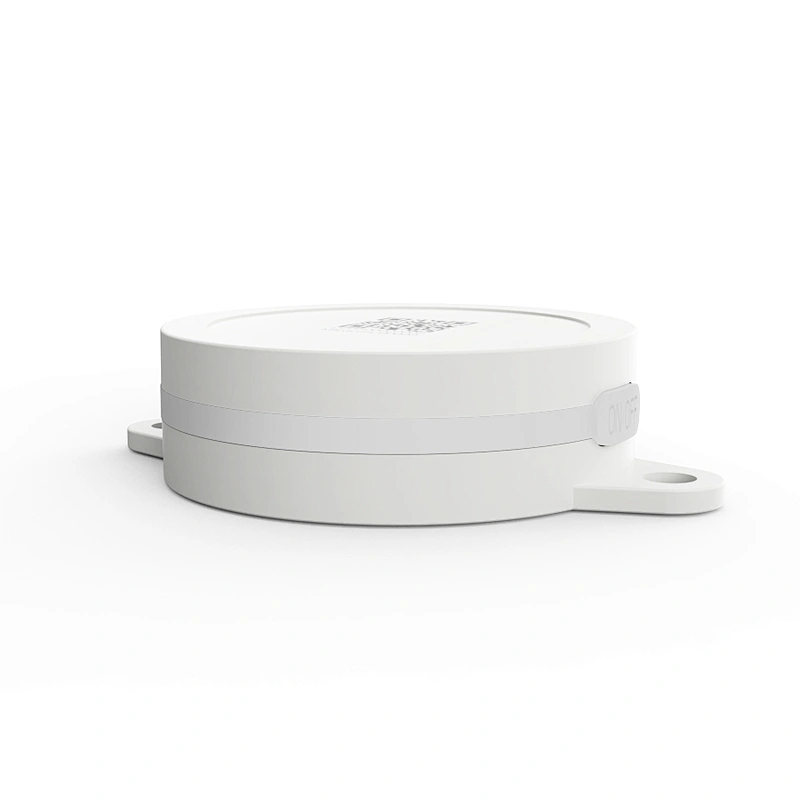

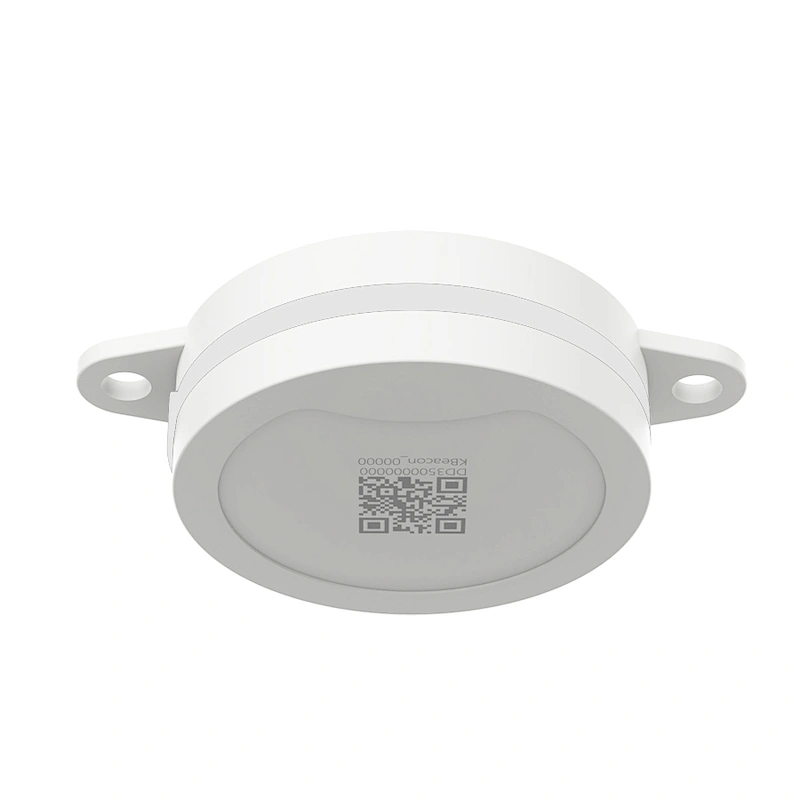

Details Images

Specification

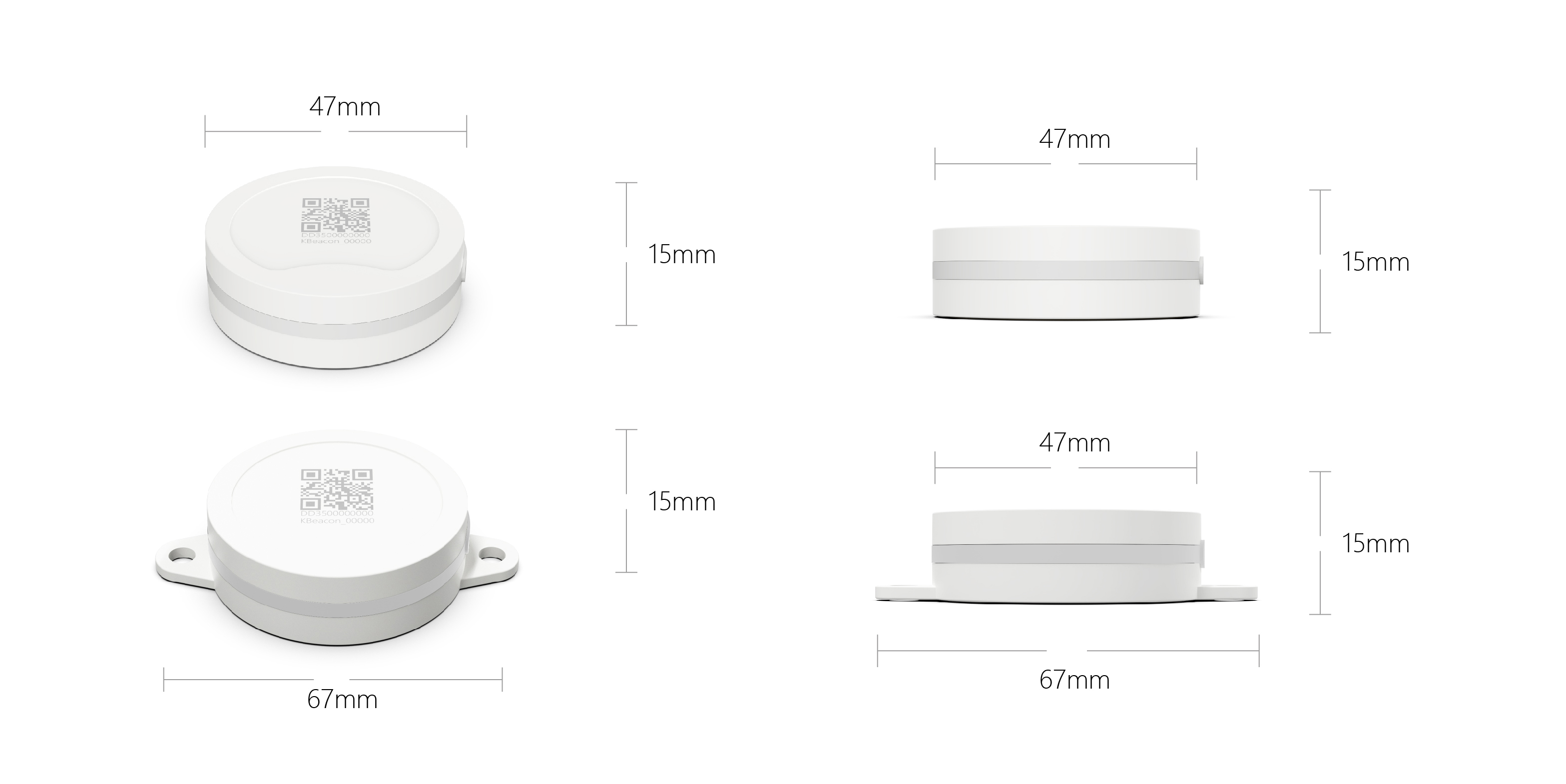

Size	Dia 47mm*15mm	BLE Version	BLE5.0/5.1/5.2
Material	ABS+Silicone	Protocol	iBeacon/Eddystone/Ksensor
Weight	25g (with battery)	OTA	YES
Battery	CR2477	Button	1 Button
Battery Life	4 years (Base on Broadcast Interval 1s and TX power 0dBm)	Sensor	Accelerometer sensor
Waterproof	IP65	Working Temperuature	-40°C ~+70°C
Chipset	Nordic nRF52 series	Storage Temperature	10°C ~+25°C, ≤65%RH

Product Usage

How it works
1. You can use smartphone App to connect to the K8 Beacon and read the data.

2. The K8 Beacon can also connect to KGateway KG01/ KG02 via Bluetooth. The KGateway can collect K8 Beacon data and upload to cloud server via LTE/WIFI/Ethernet in real-time

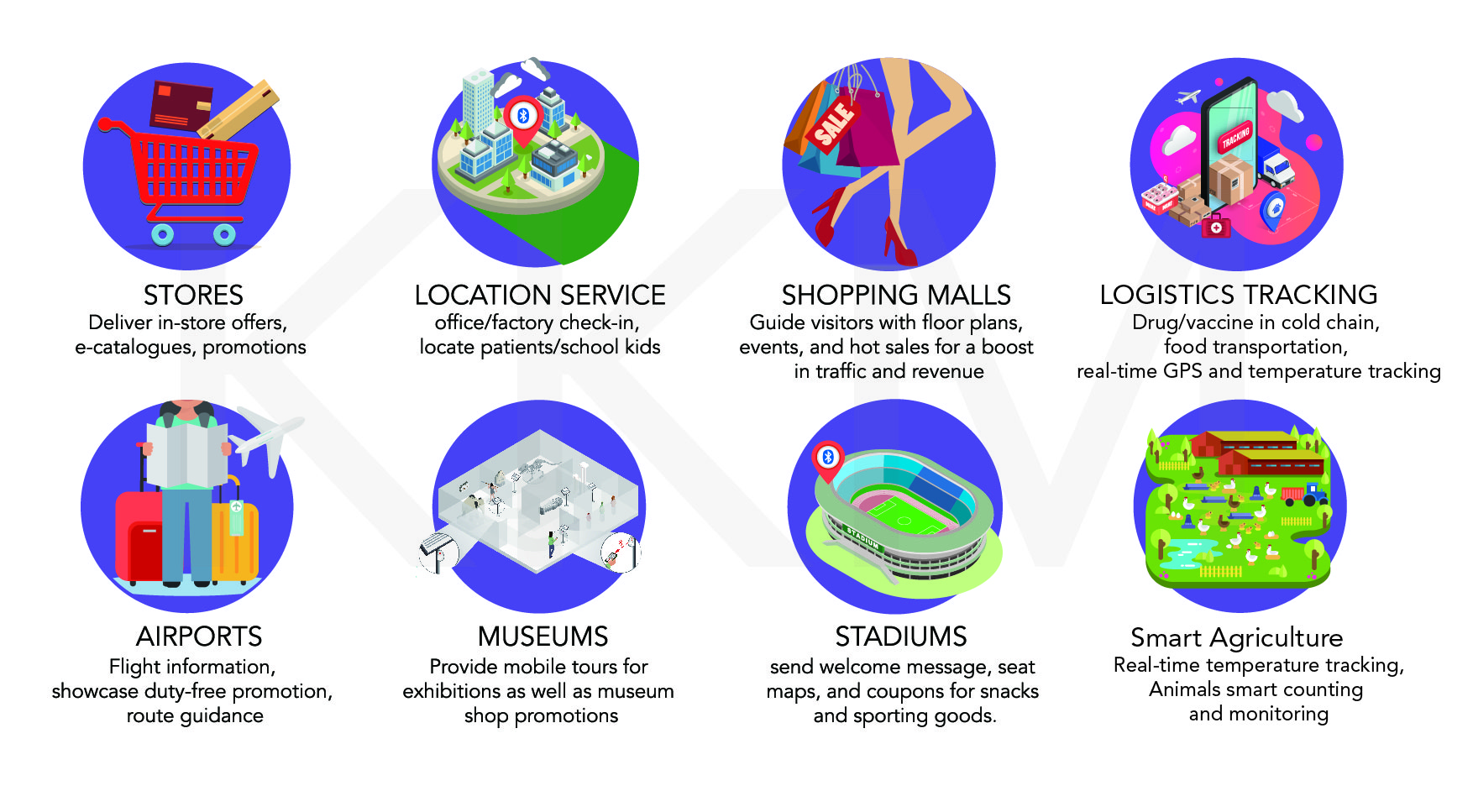

Application
