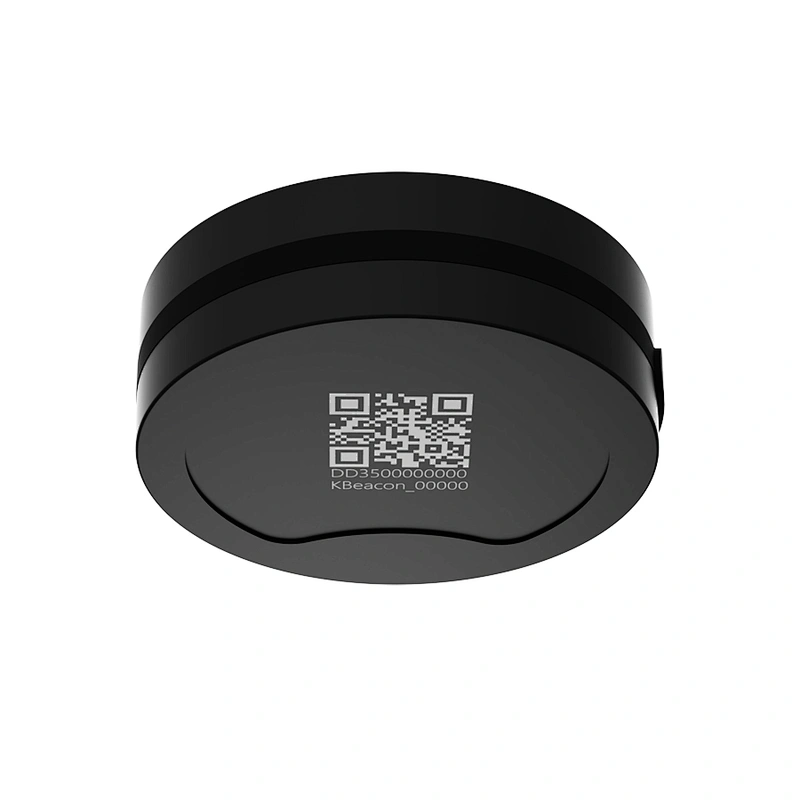

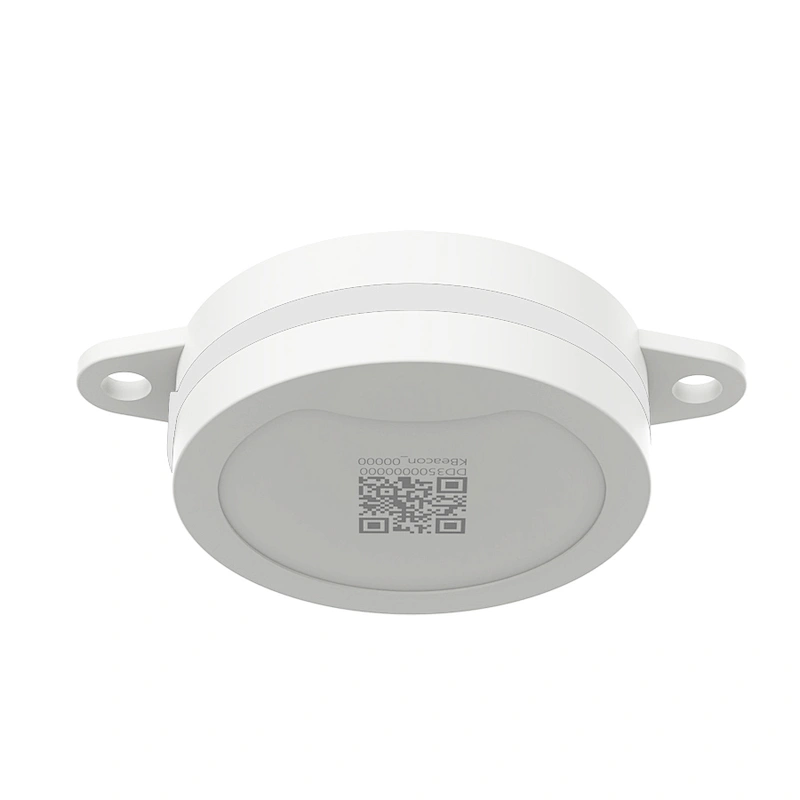

Fleet management Industrial Beacon BLE5.0 Nordic accelerometer beacon vehicle tracking

Fleet management Industrial Beacon BLE5.0 Nordic accelerometer beacon vehicle tracking

Model NO.: K8
Price:: $ 4.28-4.88 / piece
Minimum order quantity: 1 piece
Country of Origin: shenzhen

Product Description

Model Number:K8
Place of Origin:Guangdong, China
Brand Name:KKM
Chipset:Nordic nRF52 Series
Supplier Type:Manufacturer
Application:Public
Compatibility:iOS 8.0+ and Android 4.3+ system
Battery:CR2477(replaceable)
Size:Dia 47mm*15mm
Weight:25g
Battert lifetime:> 48 months
Transmission Range:100 meters
Certification:CE FCC RoHS
Color:White Black
Waterproof:IP67
Protocol:Apple iBeacon,Eddystone URL/UID/TLM

Product Description

Fleet management Industrial Beacon BLE5.0 Nordic accelerometer beacon vehicle tracking

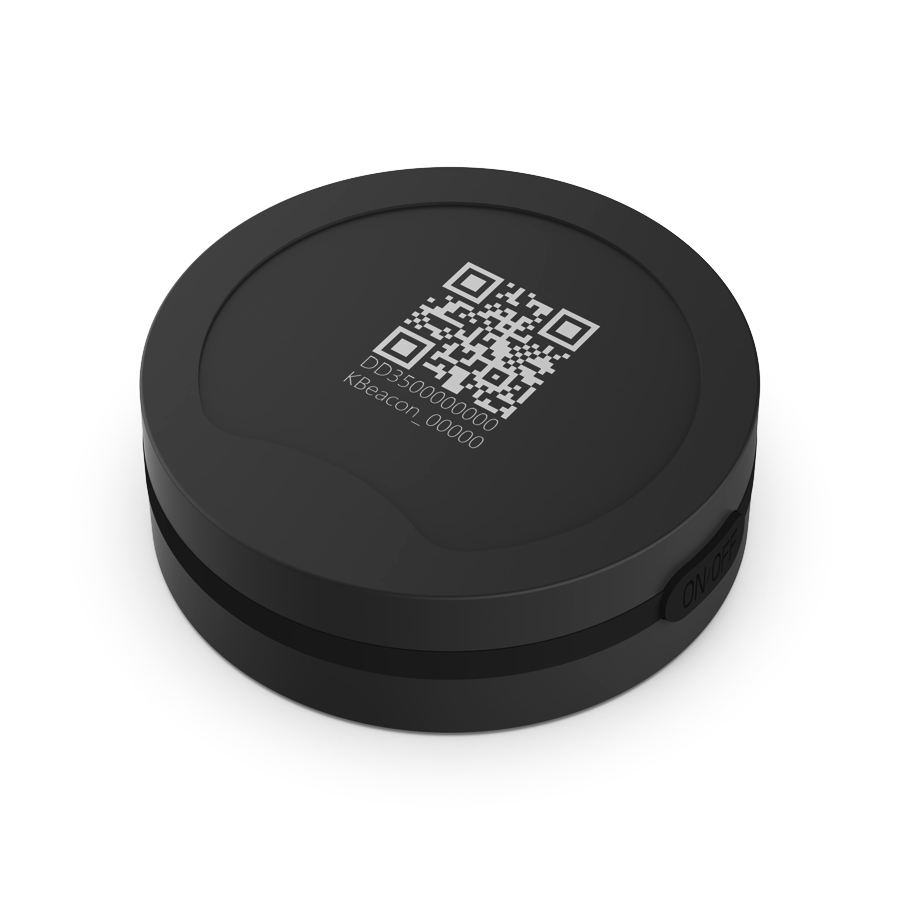

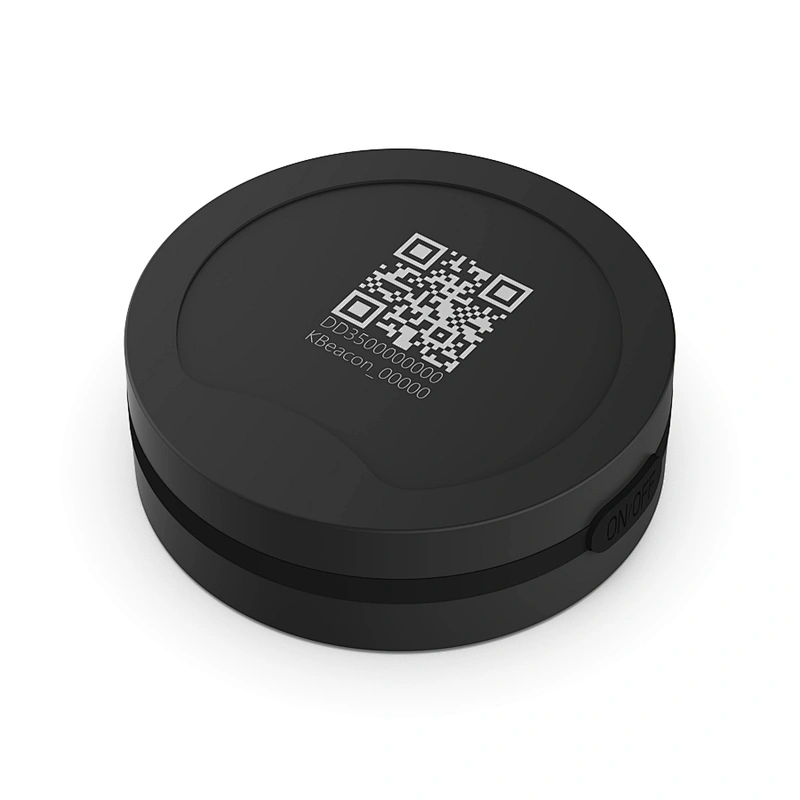

K8 Sensor Beacon

•Chip: Nordic nRF52 series

• Bluetooth range: 100 meters
• Accelerometer Sensor
•CR2477, 48 months battery life
• SDK or Library Provided
• FCC/CE certified
• Support iBeacon/Eddystone/KSensor
•IP65 waterproof

K8 Sensor Beacon
● K8 is a BLE5.0 waterproof beacon, with ultra-low power consumption. K8 with 1000mAh big capacity, the battery life is more than 4 years and the battery is replaceable.

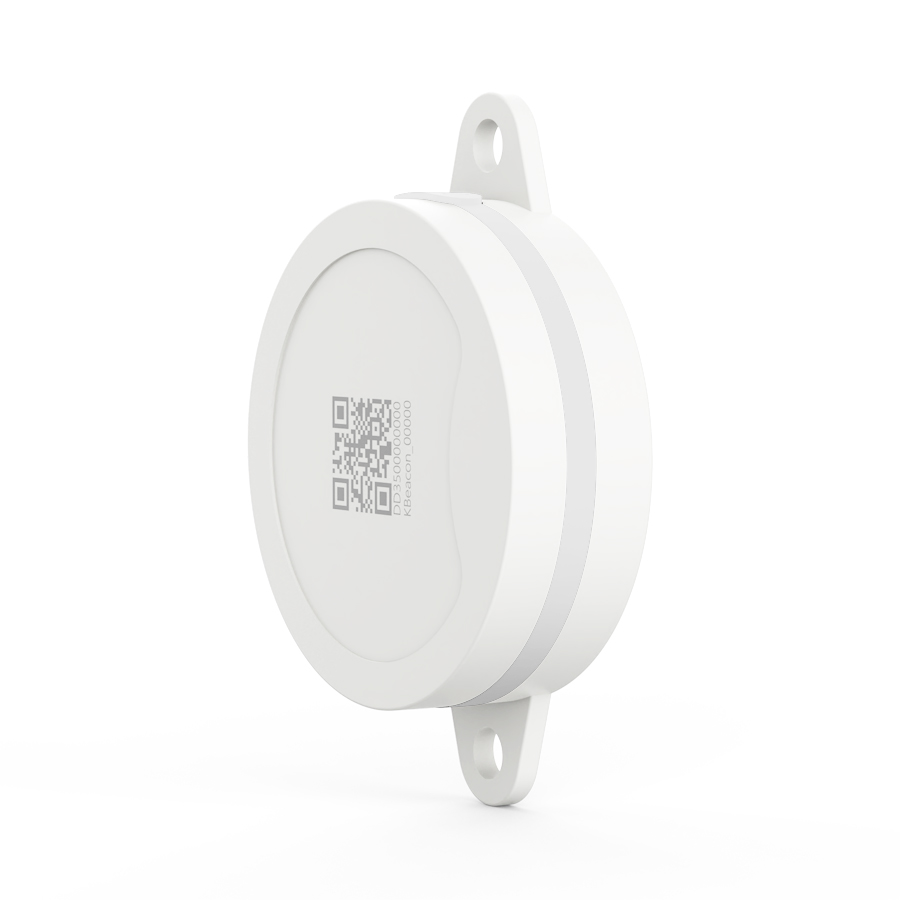

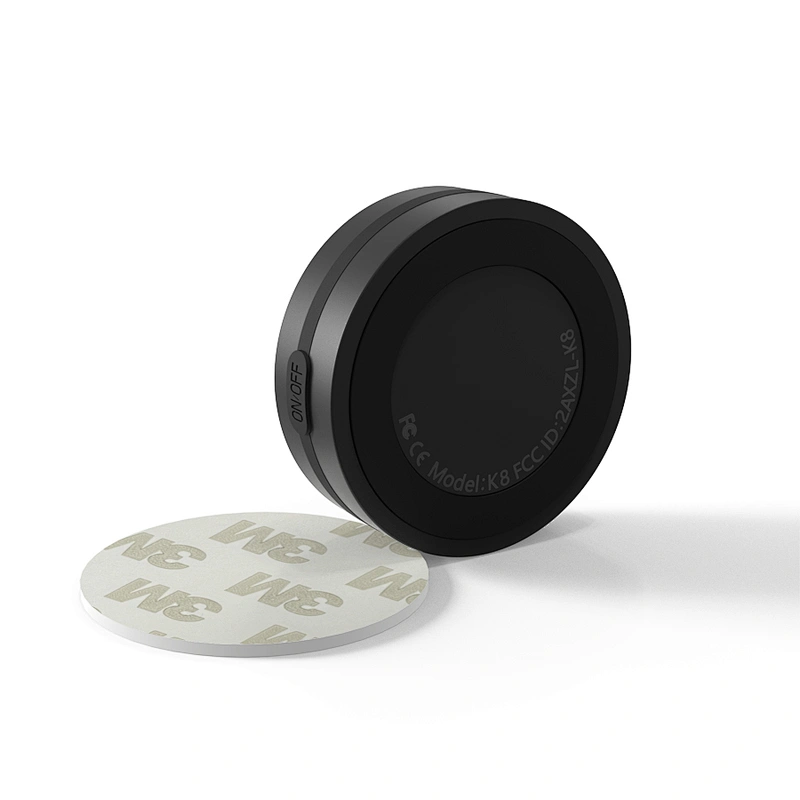

● K8 can install by adhered type or mounting on wall or subjects, it is widely used in indoor navigation, mapping and marketing.
● Device Name, TX Power, Advertisement period, UUID, Major ID, Minor ID can be configured with KBeacon APP.
● The Mac address, MajorID and MinorID is unique in each beacon.

● We can also customize or configure the parameter as you need.

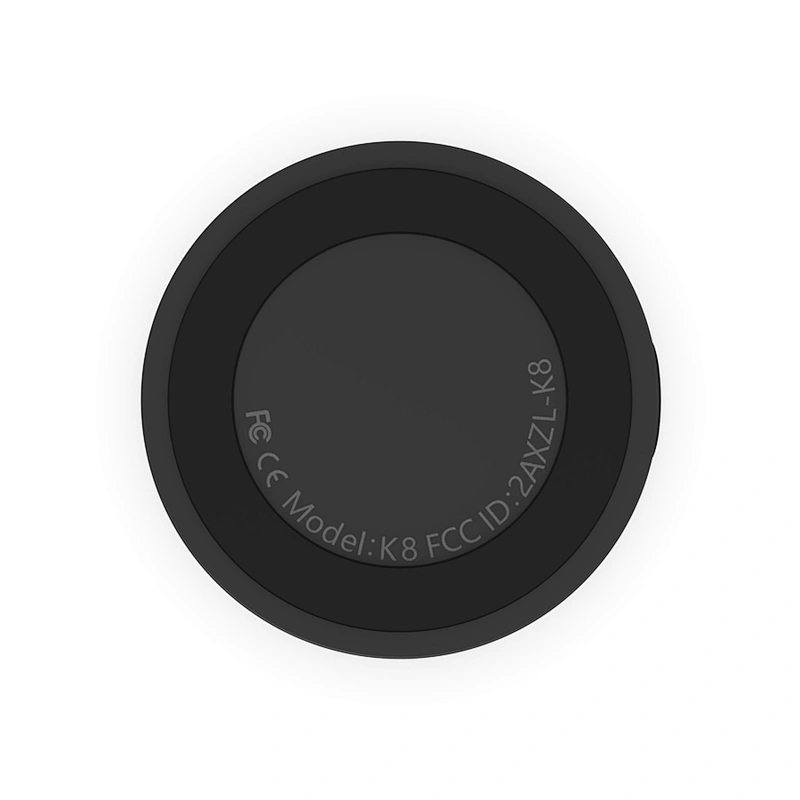

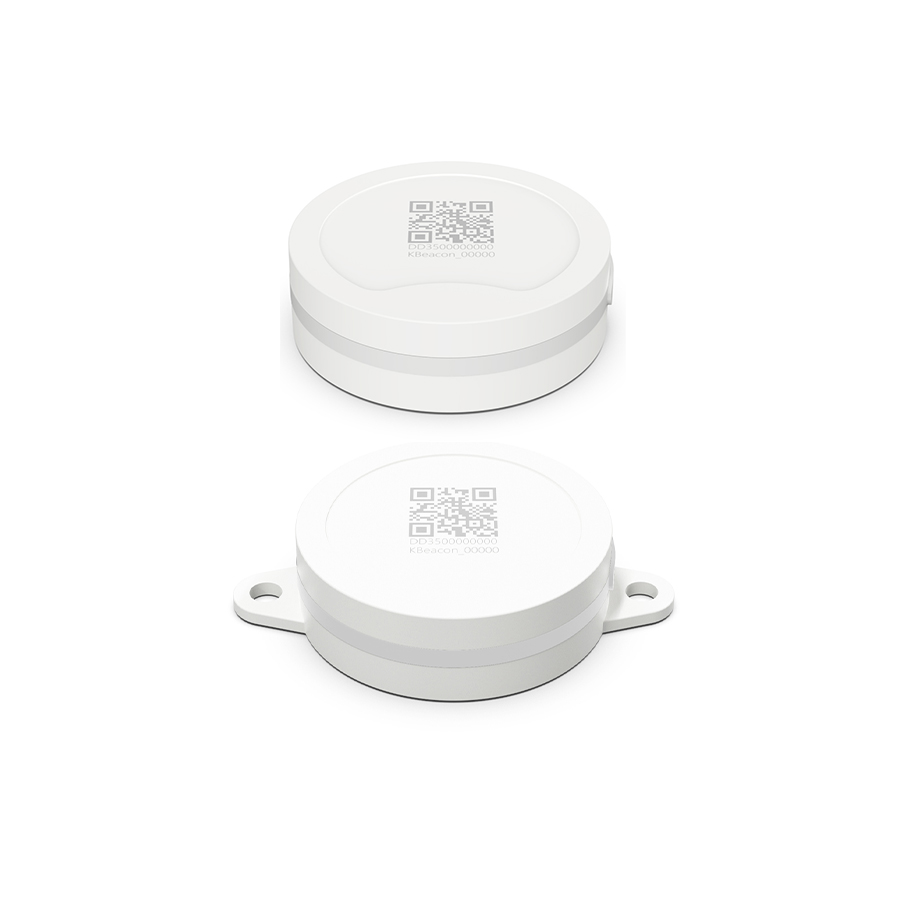

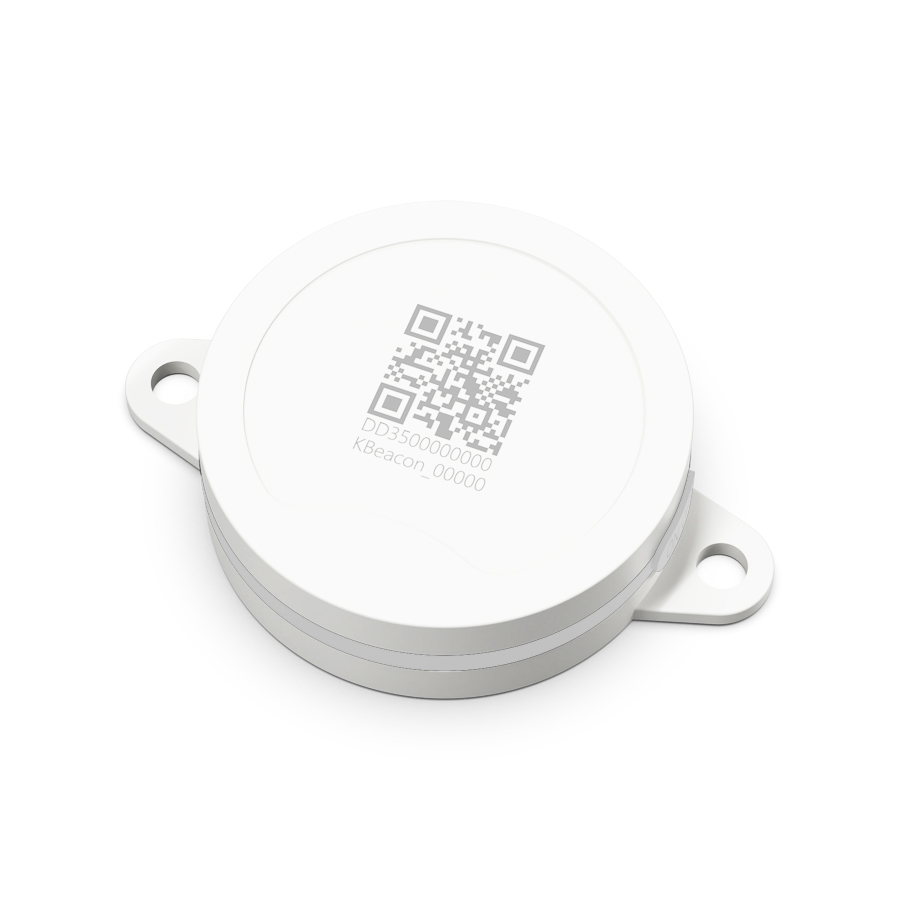

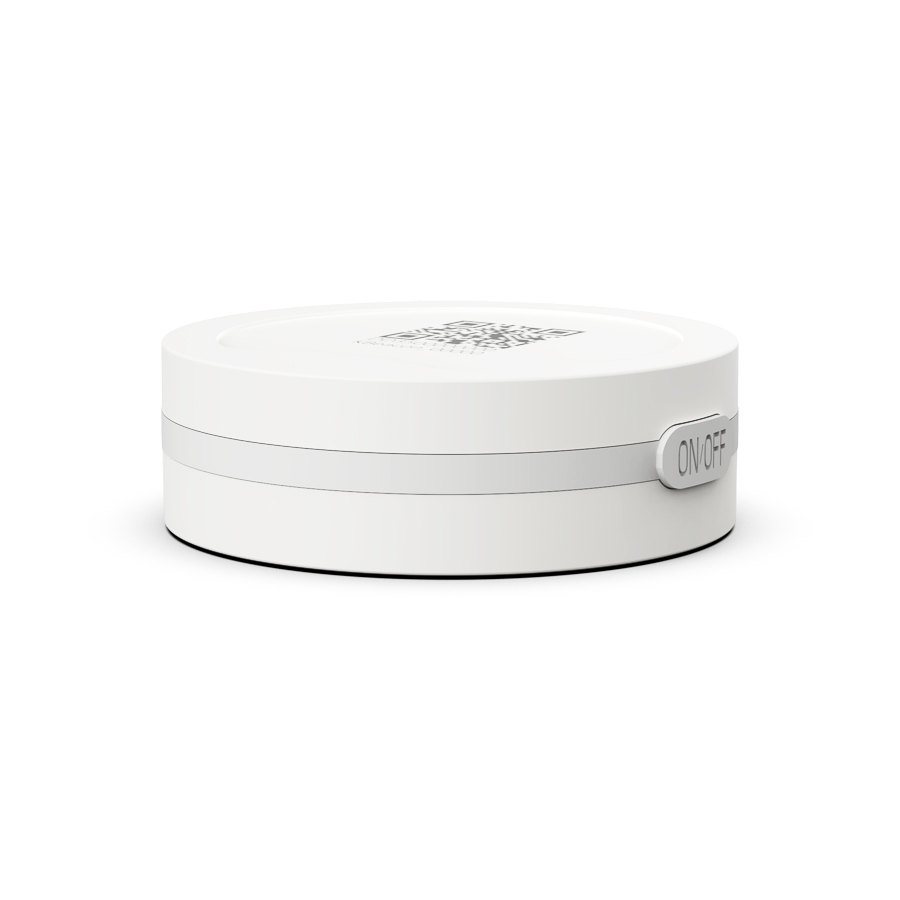

Details Images

Specification

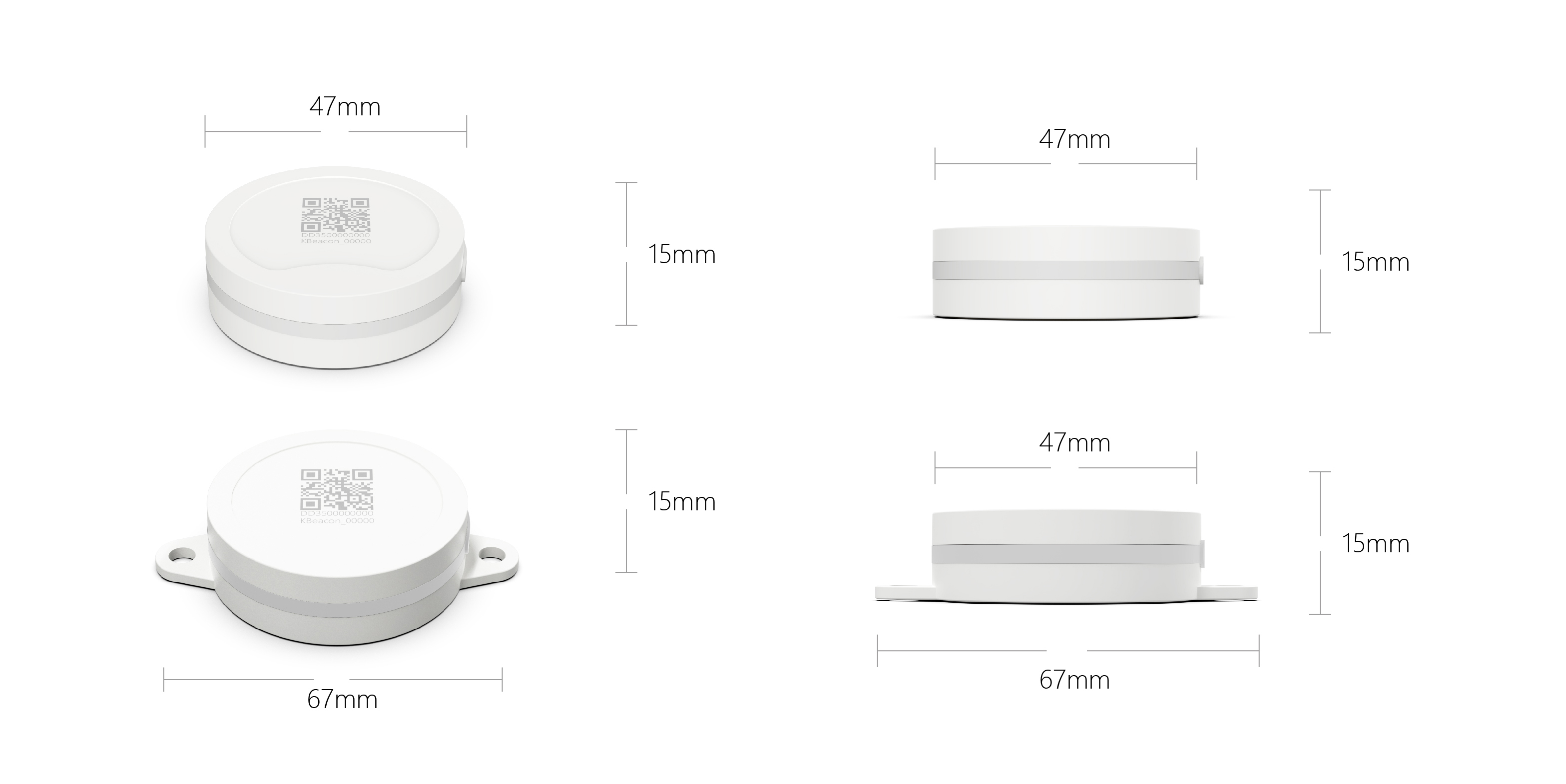

Size	Dia 47mm*15mm	BLE Version	BLE5.0/5.1/5.2
Material	ABS+Silicone	Protocol	iBeacon/Eddystone/Ksensor
Weight	25g (with battery)	OTA	YES
Battery	CR2477	Button	1 Button
Battery Life	4 years (Base on Broadcast Interval 1s and TX power 0dBm)	Sensor	Accelerometer sensor
Waterproof	IP65	Working Temperuature	-40°C ~+70°C
Chipset	Nordic nRF52 series	Storage Temperature	10°C ~+25°C, ≤65%RH

Product Usage

How it works
1. You can use smartphone App to connect to the K8 Beacon and read the data.

2. The K8 Beacon can also connect to KGateway KG01/ KG02 via Bluetooth. The KGateway can collect K8 Beacon data and upload to cloud server via LTE/WIFI/Ethernet in real-time

Application
