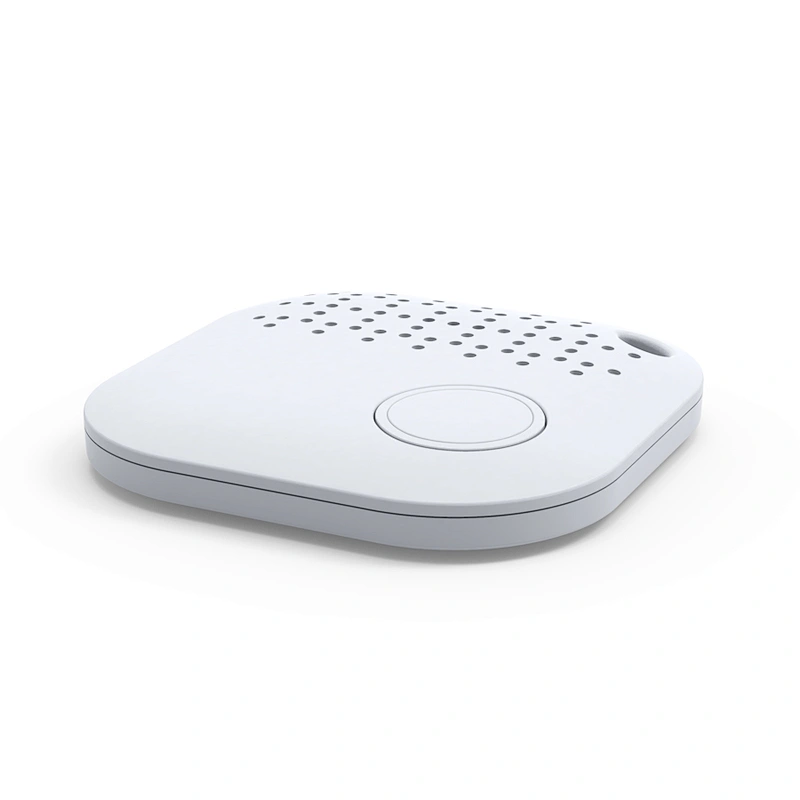

nrf52810 Ble 4.0 5.0 iBeacon Motion Trigger Sensor Beacon

nrf52810 Ble 4.0 5.0 iBeacon Motion Trigger Sensor Beacon

Model NO.: ibeacon K21
Price:: $ 4.28-4.73 / piece
Minimum order quantity: 1 piece
Country of Origin: Shenzhen

Product Description

Network:SDK Avilable, API Avilable
Model Number:ibeacon K21
Type:Factory
Place of Origin:Guangdong, China
Brand Name:Kbeacon
Application:Public
Product name:ibeacon eddystone K21
Compatibility:iOS 7.0+ and Android 4.3+ system
Battery Model:CR2032
ibeacon Size:35*35mm
ibeacon Weight:23g
Battert lifetime:14 months
Real Working distance:BLE 5.0:100 meters
ibeacon chipset:NRF52810
Certification:CE FCC RoHS
ibeacon support:Mbps Mode

Product Description

nrf52810 Ble 4.0 5.0 iBeacon Motion Trigger Sensor Beacon

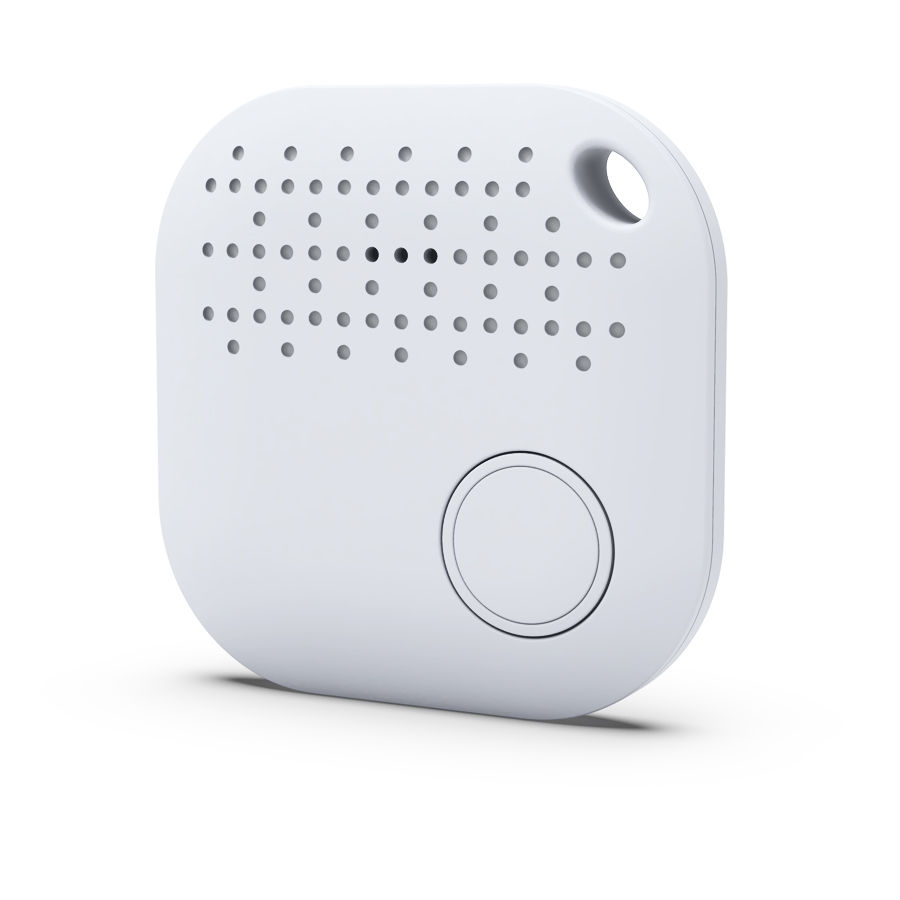

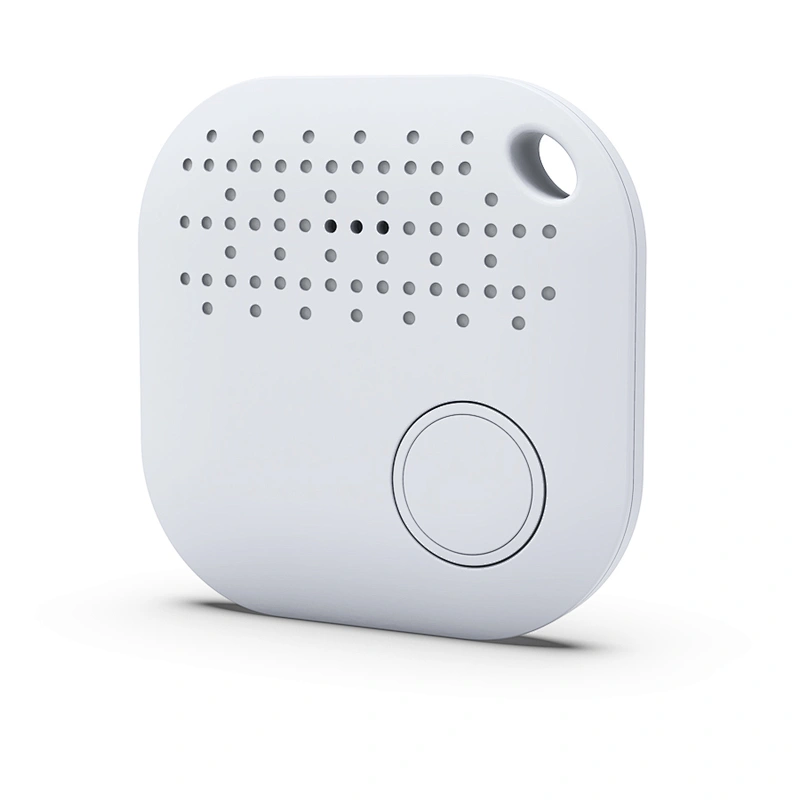

K21 Keychain Beacon with buzzer

● With buzzer, the sound is volune is ＞85dB

● With acceleration sensor

● Support button trigger (SOS button/ Remote control/ Panic button etc.)

● Small size, 36*36*5.6mm, each to carry.

● Replaceable CR2032 coin battery, battery life is 16 months,

●Chipset: nRF52 series

● Bluetooth range: 100m

● CE/FCC certified

K21 Keychain Beacon

● K21 has buzzer, can make sound, the sound volume is ＞85dB

● K21 has acceleration sensor, it can detect the movement, and also the XYZ axis data. It can also support motion trigger, it will broadcast if it detects movement.

● K21 has button and support button trigger function, it has LED light also. it can be used as SOS button/Remote control/Panic button etc.

● K21 has ultra-small size, it's portable and convenient to carry. It can be used for advertising, asset tracking, employee
tracking&Management etc.

● K21 is a BLE5.0 Beacon, with ultra-low power consumption. K21 uses replaceable CR2032 coin battery, The battery life is 16 months.

● Support iBeacon/Eddystone(UID,URL,TLM) at the same time

● You can use 'KBeacon' App to configure the Beacon parameters, such as Device Name, TX Power, Adv Period, UUID, Major, Minor etc. We can also provide SDK or Library for your development and integration.

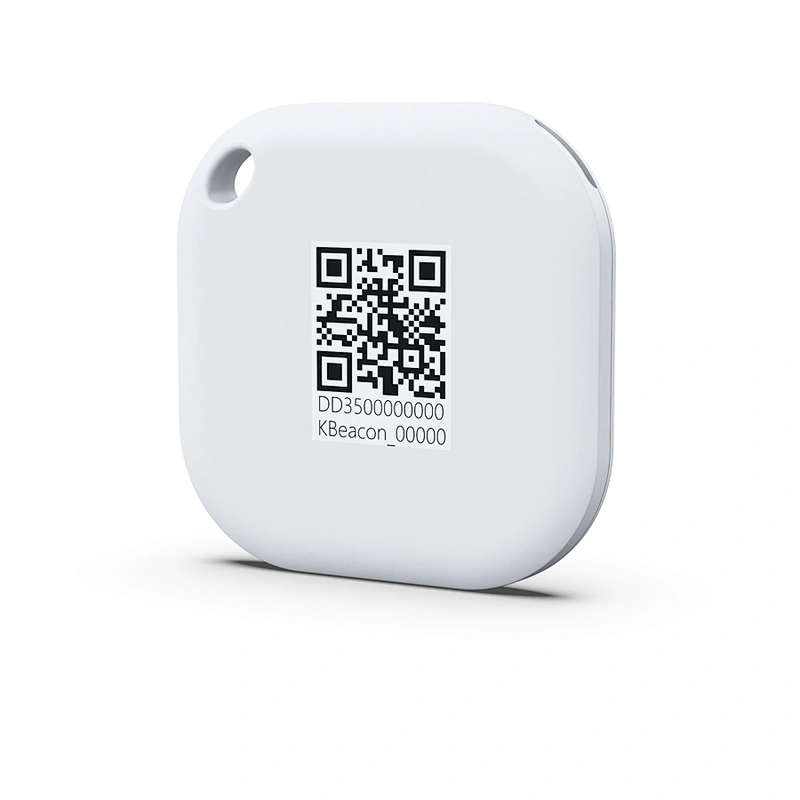

● The MAC address, Major and Minor is unique in each Beacon, we can also customize or configure the parameters as you need.

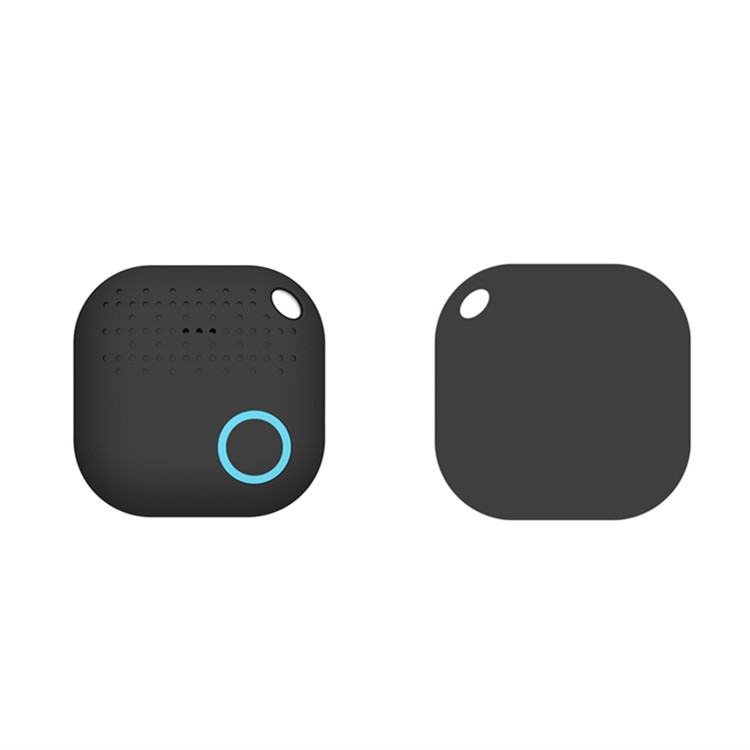

Details Images

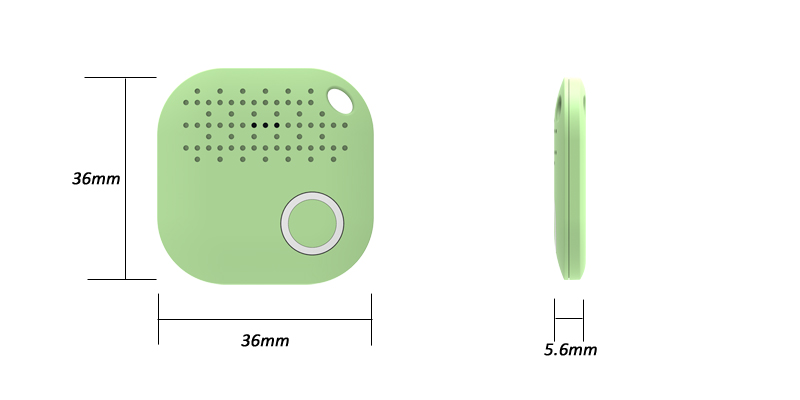

Size	36mm36mm5.6mm	BLE Version	BLE5.0
Material	ABS	Protocol	iBeacon/Eddystone/Ksensor
Weight	10g (with battery)	OTA	YES
Battery	CR2032 coin battery, battery is replaceable	Button	1 button
Battery Life	16 months (Base on Broadcast Interval 1s and TX power 0dBm)	Sensor	Accelerometer sensor
Sound Volume	＞85dB	Working Temperuature	-40°C ~+70°C
Chipset	nRF52 series	Storage Temperature	10°C ~+25°C, ≤65%RH

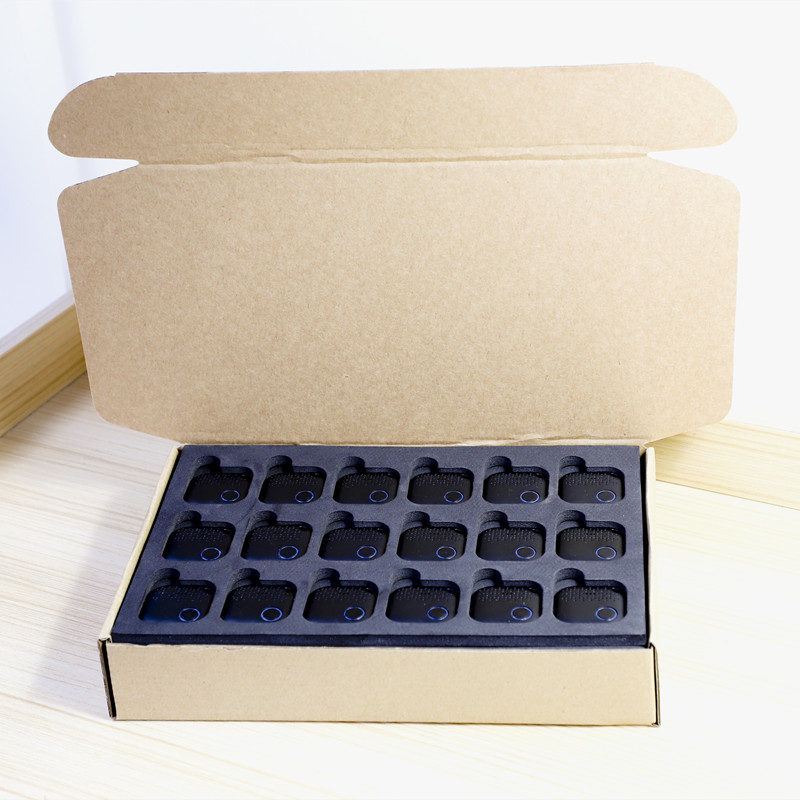

Product packaging

Product Usage

How it works

1, You can use smartphone App to connect to the K21 Beacon and read the data. We can provide the SDK and library for you to develop your own App and do integration.

2,The K21 Beacon can also connect to KGateway KG01/ KG02 via Bluetooth. The KGateway can collect K21 Beacon data and upload to cloud server via LTE/WIFI/Ethernet in real-time. KKM wil provide you the KGateway API to do integration to your system.

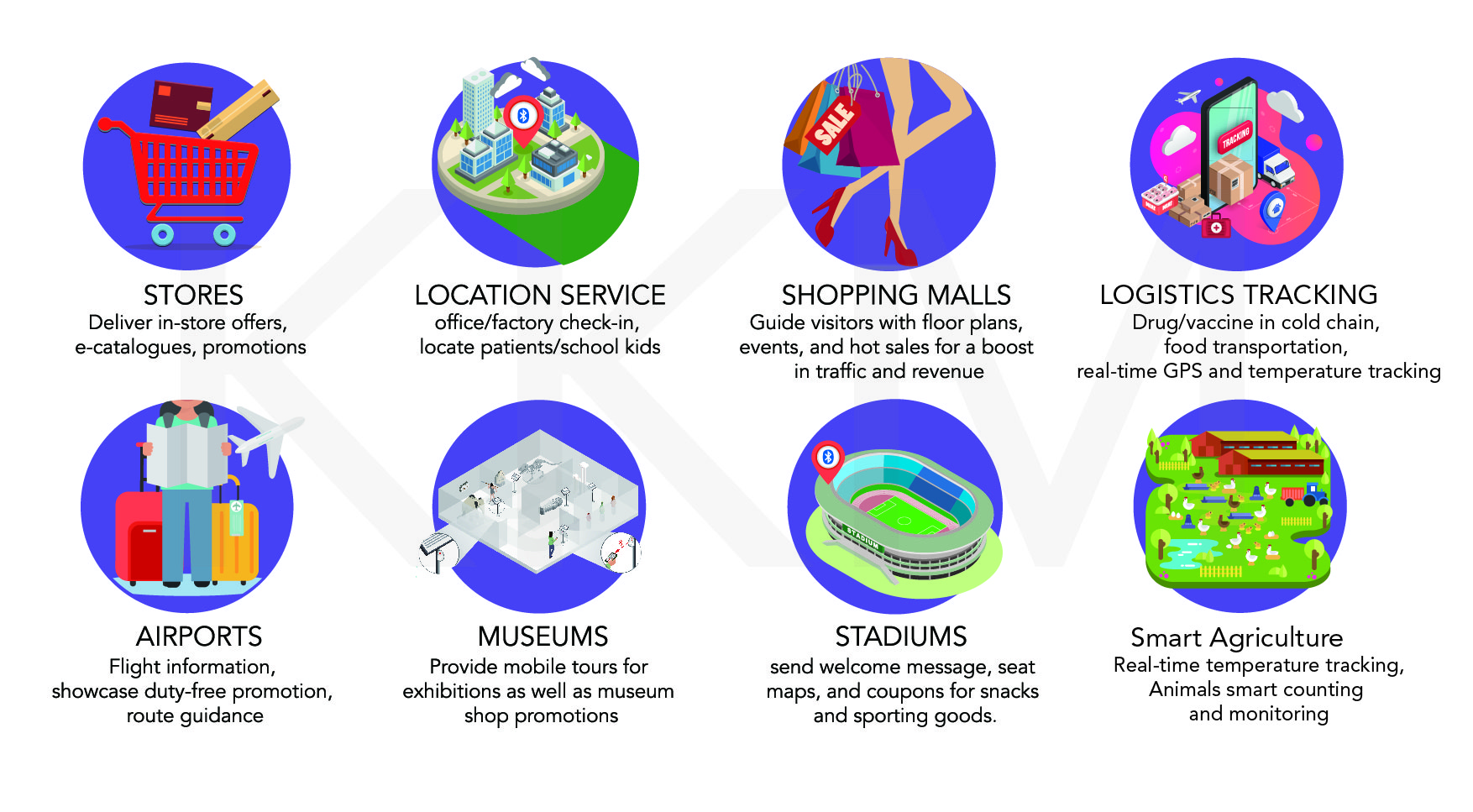

Application

--Commercial Advertising

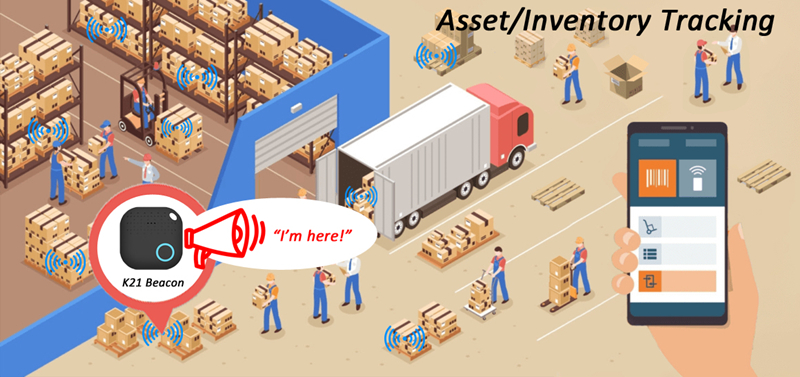

--Asset tracking

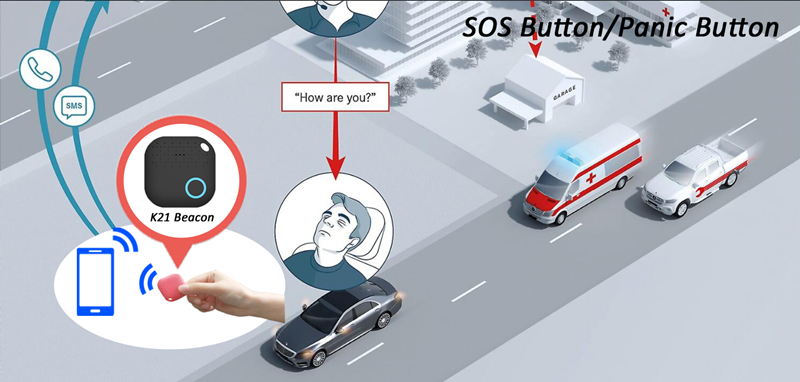

--Panic button/SOS button/Remote

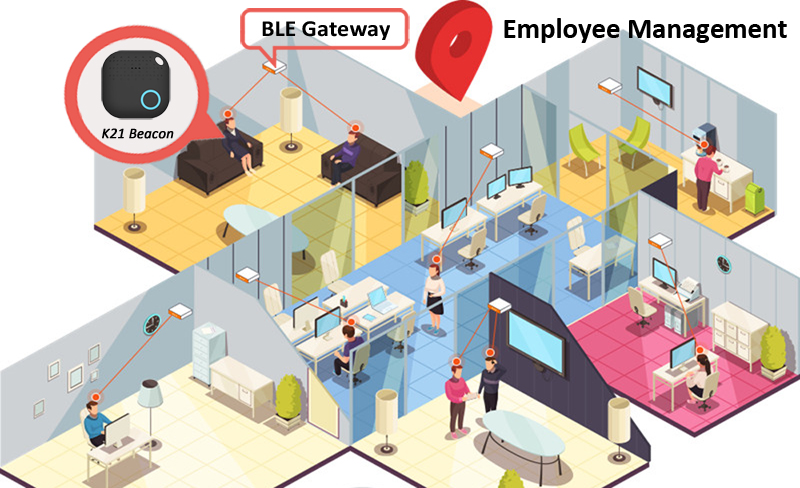

--Employee/students tracking&Management
--And more
